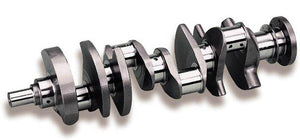

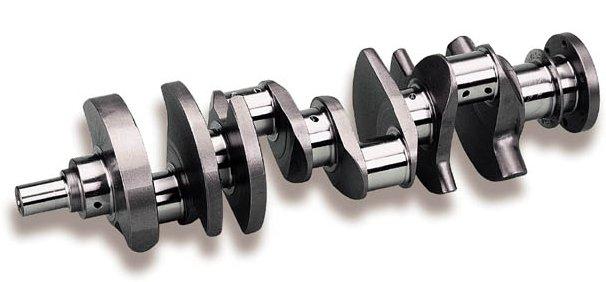

Eagle Ford 351W 3.500in. Stroke Forged Crankshaft - 435135006200

Eagle forged 4340 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.

Specifications

• Material: forged 4340 steel
• Intended Balance: internal
• Target Bobweight: 1900g
• Stroke: 3.500"
• Rod Journal: 2.1"
• Rod Journal Width: 1.900"
• Main Journals: 3.000"
• Minimum Rod Length: 6.200"
• Typical Weight: 57 lbs.
• Snout Diameter: 1.375"
• Flywheel Bolts: 6
• Pilot Bore Diameter: 1.378" with step to 1.094"
