Eagle Part # EAG430232525400

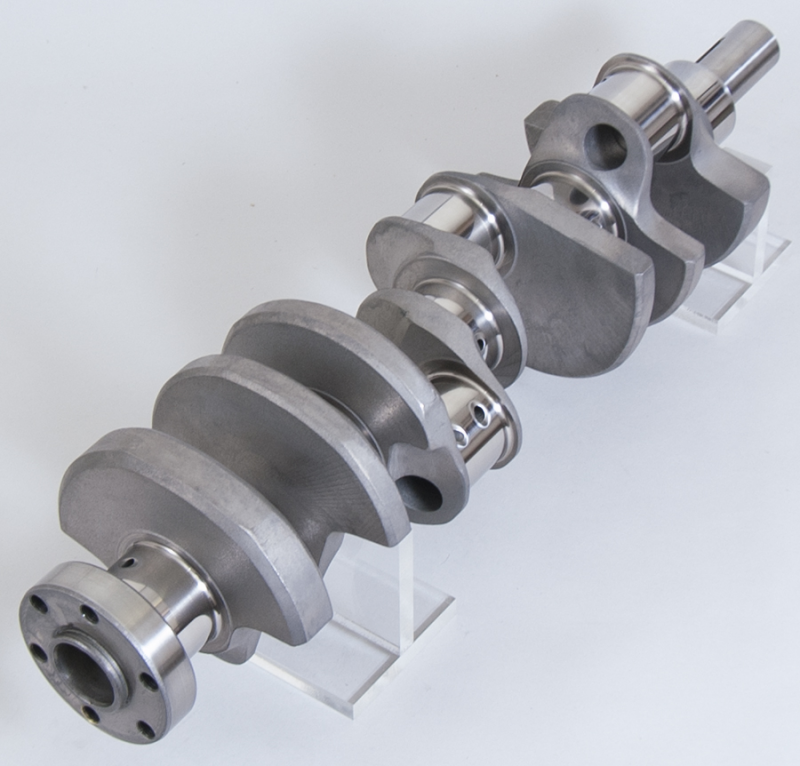

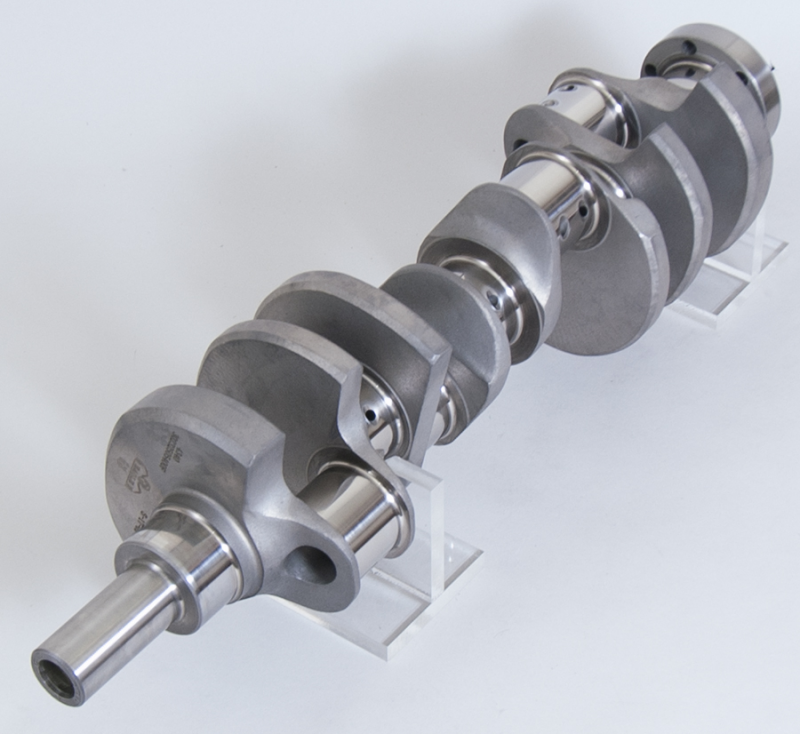

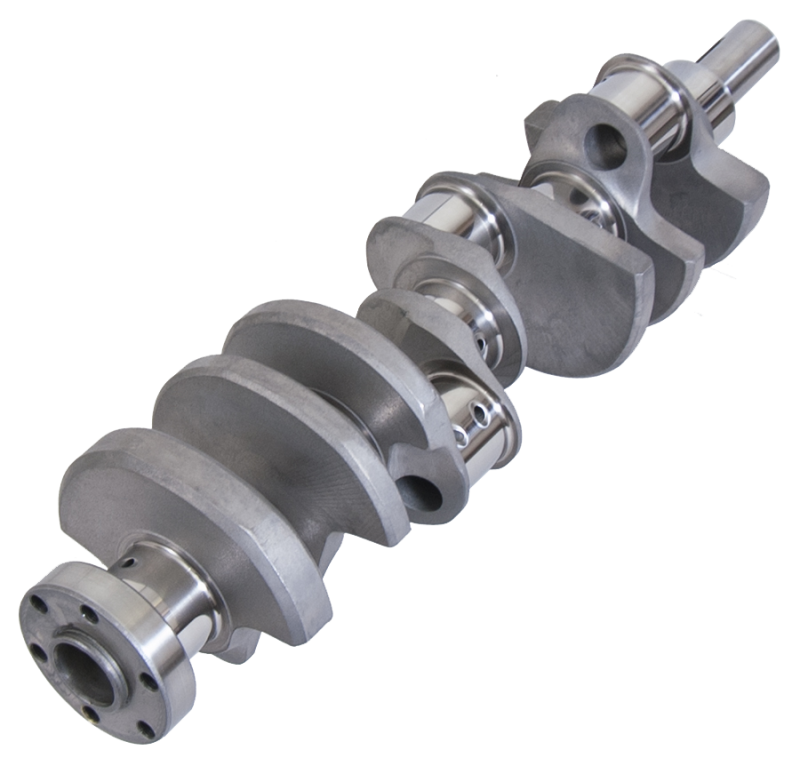

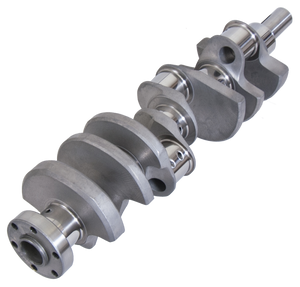

Eagle Ford 302 3.250in Stroke Internal Balance Forged 4340 Steel Crankshaft - 430232525400

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Trusted since 2005 Questions? Email sales@raptorracing.com

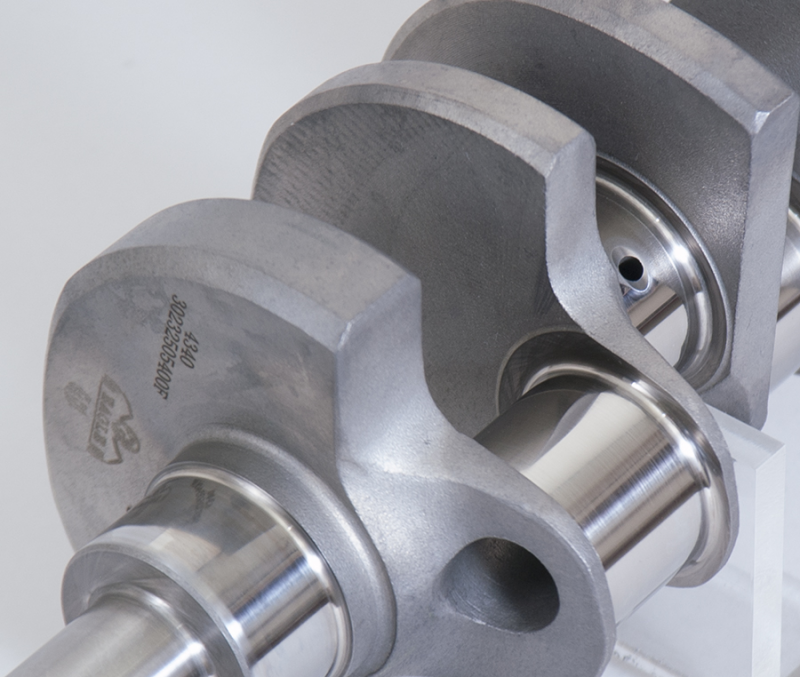

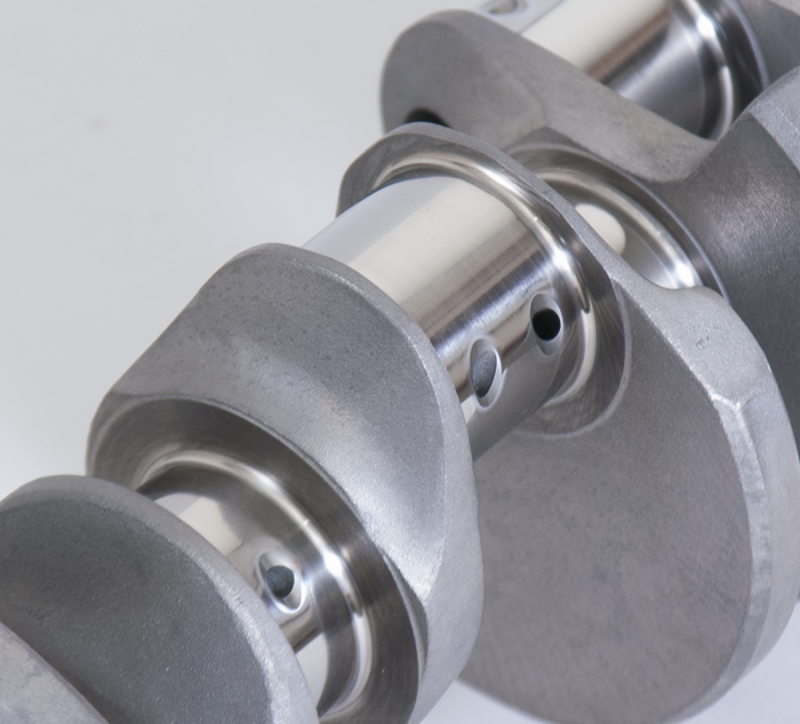

Eagle forged 4340 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.

  • Material: forged 4340 steel
  • Intended Balance: internal
  • Target Bobweight: 1750g
  • Stroke: 3.250"
  • Rod Journal: 2.123"
  • Rod Journal Width: 1.68"
  • Main Journals: 2.249"
  • Minimum Rod Length: 5.400"
  • Typical Weight: 45 lbs.
  • Rear Seal Diameter: 3.624"
  • Snout Diameter: 1.374"
  • Flywheel Bolts: 6
