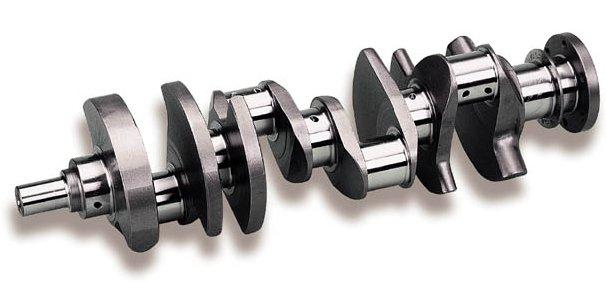

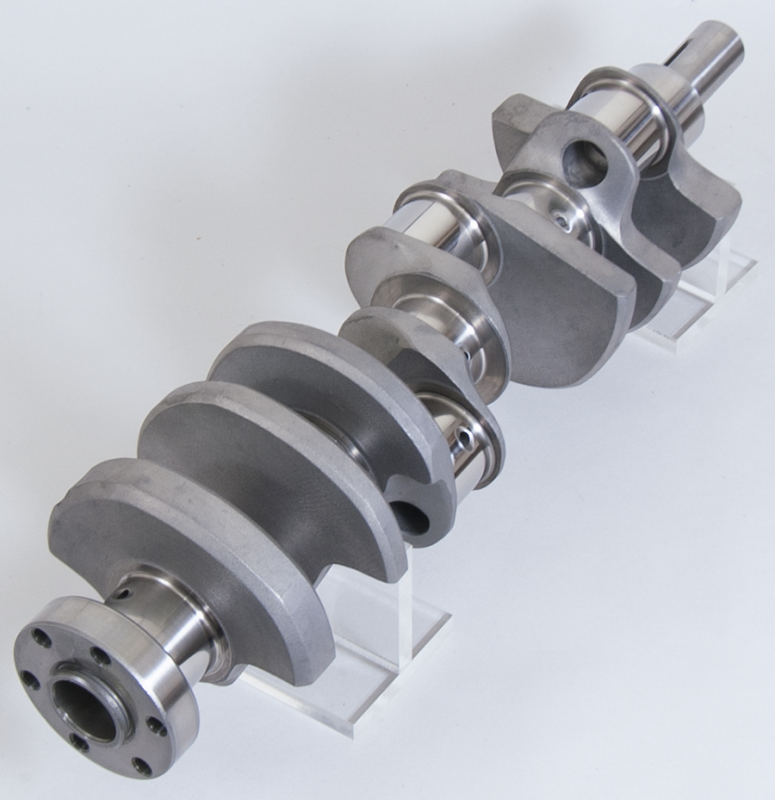

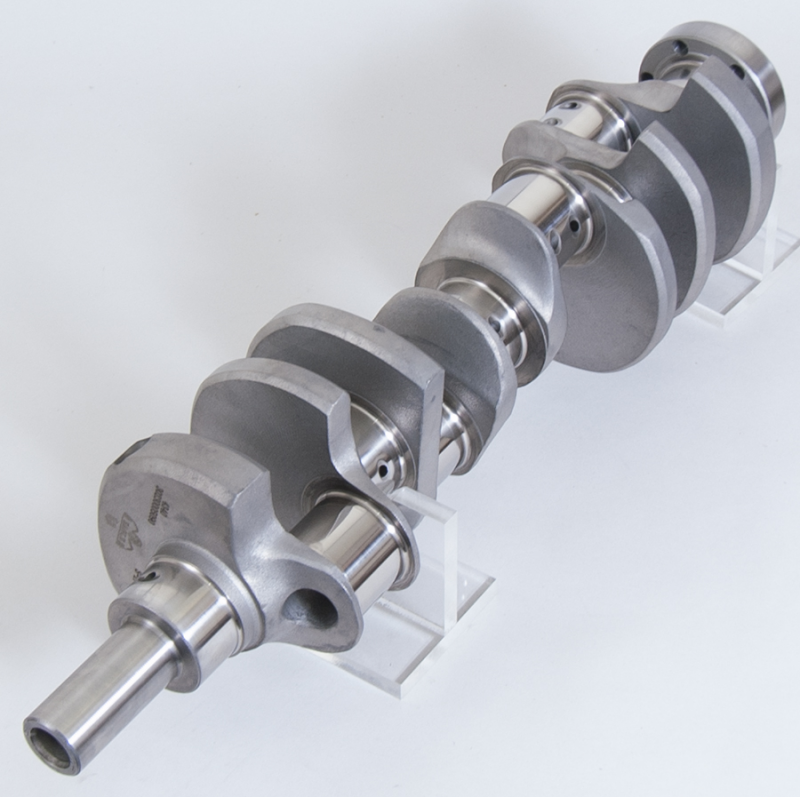

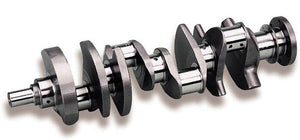

Eagle Ford 302 3.00in Stroke Internal Balance Forged 4340 Steel Crankshaft - 430230015090

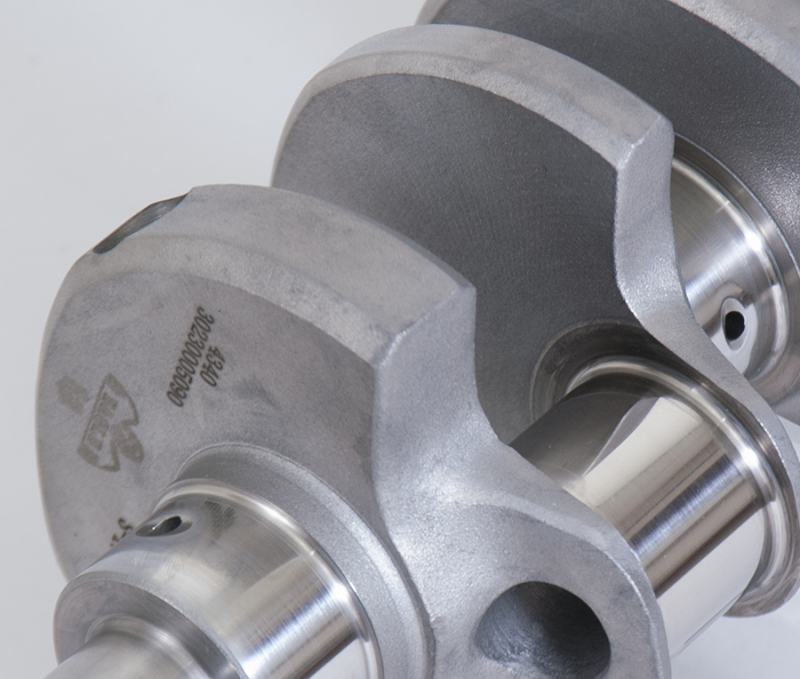

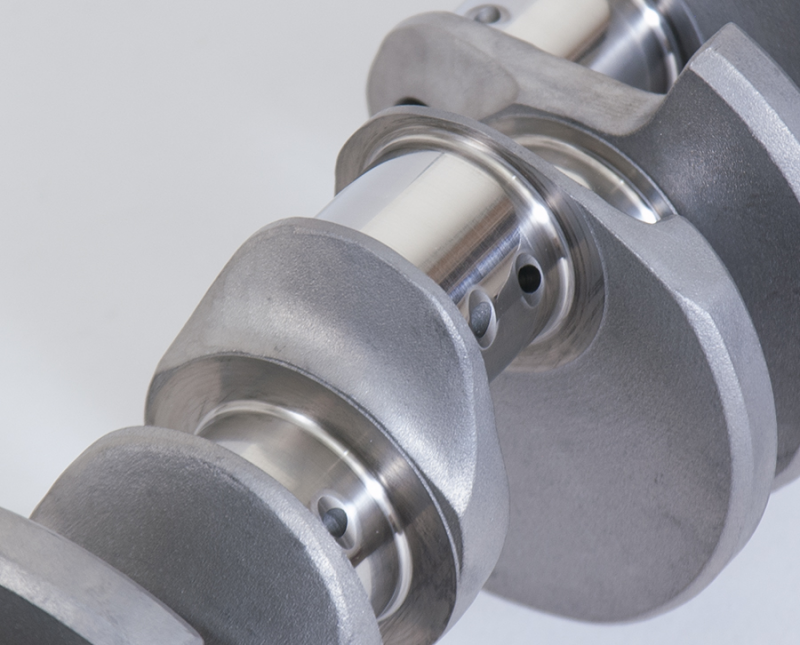

Eagle forged 4340 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.

Specifications

• Material: forged 4340 steel
• Intended Balance: internal
• Target Bobweight: 1750g
• Stroke: 3.000"
• Rod Journal: 2.123"
• Rod Journal Width: 1.68"
• Main Journals: 2.249"
• Minimum Rod Length: 5.09"
• Typical Weight: 45 lbs.
• Rear Seal Diameter: 3.624"
• Snout Diameter: 1.374"
• Flywheel Bolts: 6
