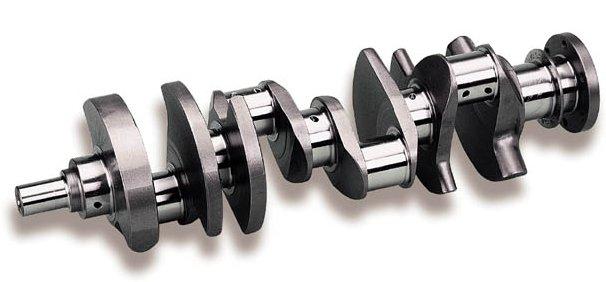

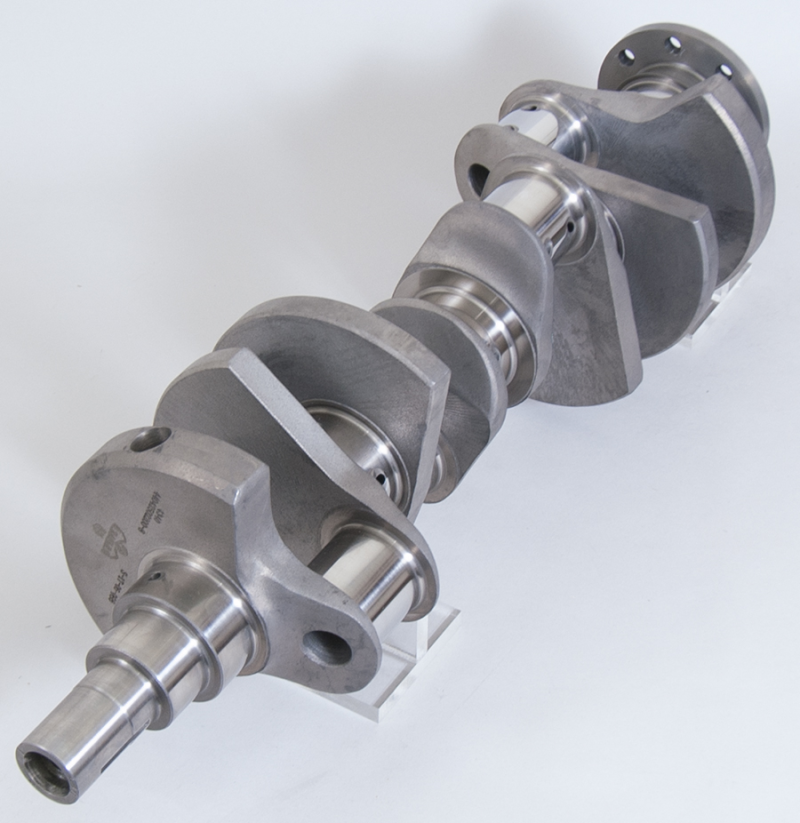

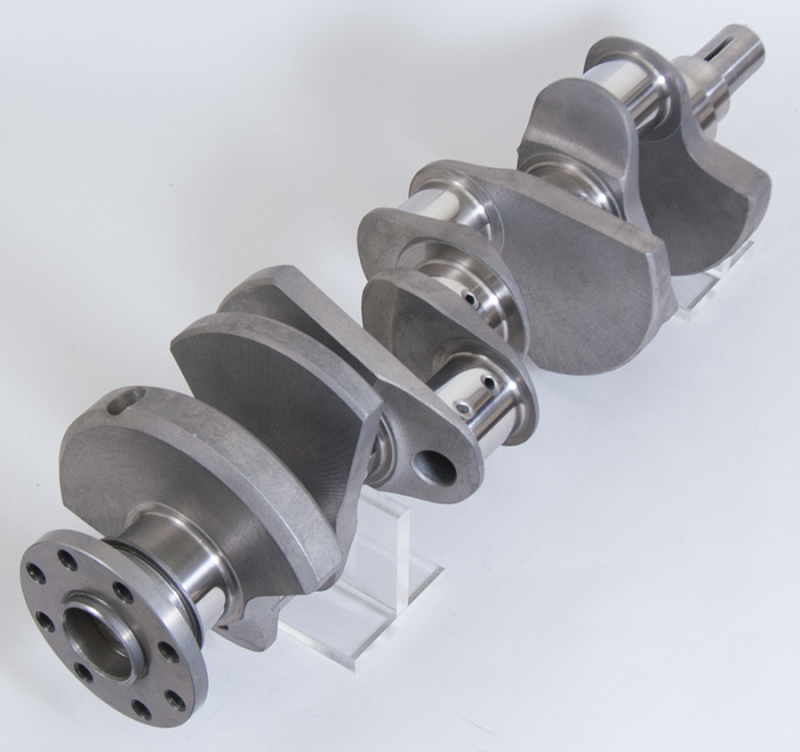

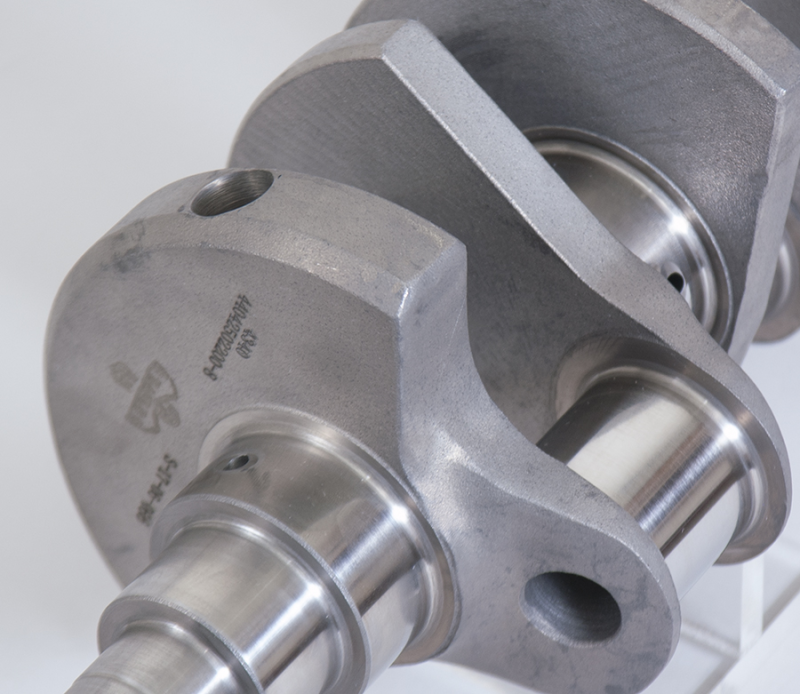

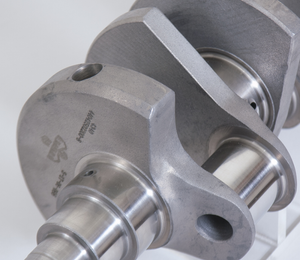

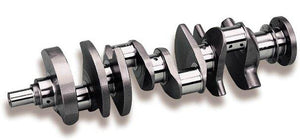

Eagle Chrysler RB 4340 Crank 4.25 Stroke 2.2 Rod Pin 8 Bolt Flange - 444242507100

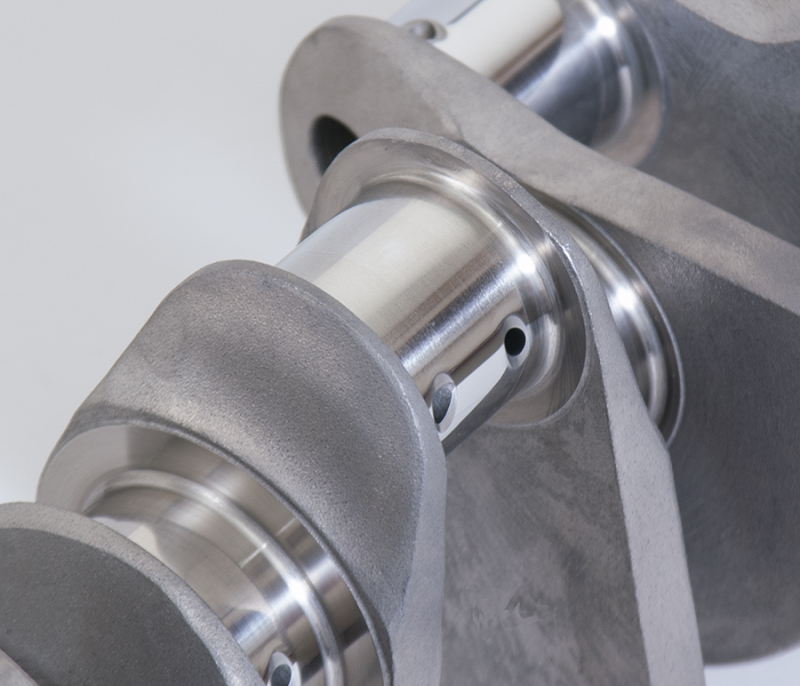

Eagle forged 4340 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.

Specifications

• Material: forged 4340 steel
• Intended Balance: internal
• Target Bobweight: 2500g
• Stroke: 4.250"
• Rod Journal: 2.2"
• Rod Journal Width: 2.05"
• Main Journals: 2.75"
• Minimum Rod Length: 7.100"
• Typical Weight: 68 lbs.
• Snout Diameter: 1.531"
• Flywheel Bolts: 8
