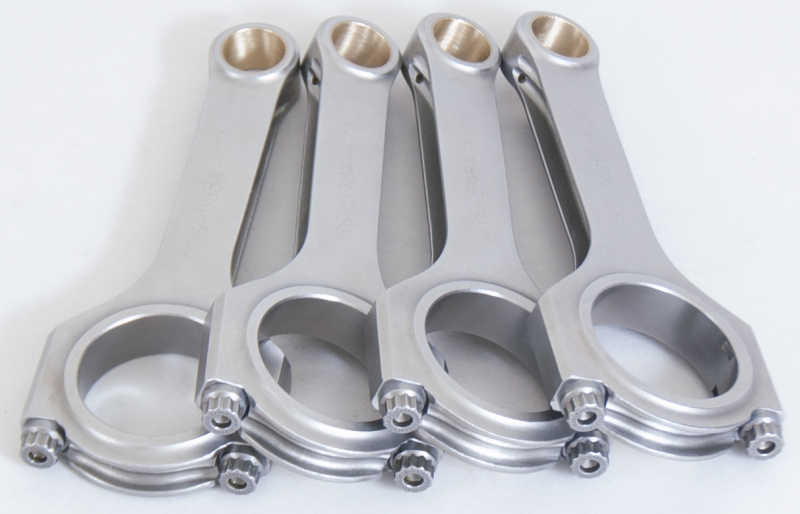

Eagle Chevy QD4 2.3L Extreme Duty Connecting Rod (Single) - CRS5806CXD-1

Forged 4340 steel H-Beam extreme duty connecting rods are forged from a two-piece forging and feature a fully machined, shot-peened, and polished surface. Sizing is held to exact tolerances. Recommended for for the most extreme applications.

Specifications

• Bolts: 3/8" ARP Custom Age 625+
• Material: forged 4340 steel
• Center To Center Length: 5.806"
• Pin Size: 0.866"
• Pin End Width: 0.875"
• Rod Journal: 1.889"
• Housing Bore: 2.015"
• Big End Width: 1.086"
• Typical Weight: 590g
• bushed for full-floating piston pin
