Eagle Part # EAG434643756460

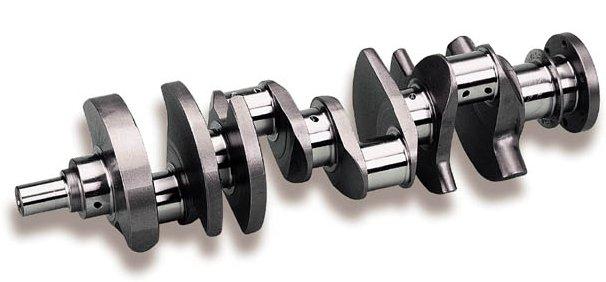

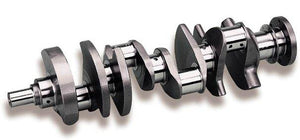

Eagle Chevrolet LS 4340 4.375in Stroke 24 Tooth Reluctor Forged Crankshaft - 434643756460

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Trusted since 2005 Questions? Email sales@raptorracing.com

Eagle forged 4340 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications. Includes 24 tooth reluctor.

  • Material: forged 4340 steel
  • Intended Balance: internal
  • Target Bobweight: 1800g
  • Stroke: 4.375"
  • Rod Journal: 1.889"
  • Rod Journal Width: 1.900"
  • Main Journals: 2.559"
  • Minimum Rod Length: 6.460"
  • Typical Weight: 55 lbs.
  • Snout Diameter: 1.48"
  • Flywheel Bolts: 6
  • Reluctor: 58 tooth
