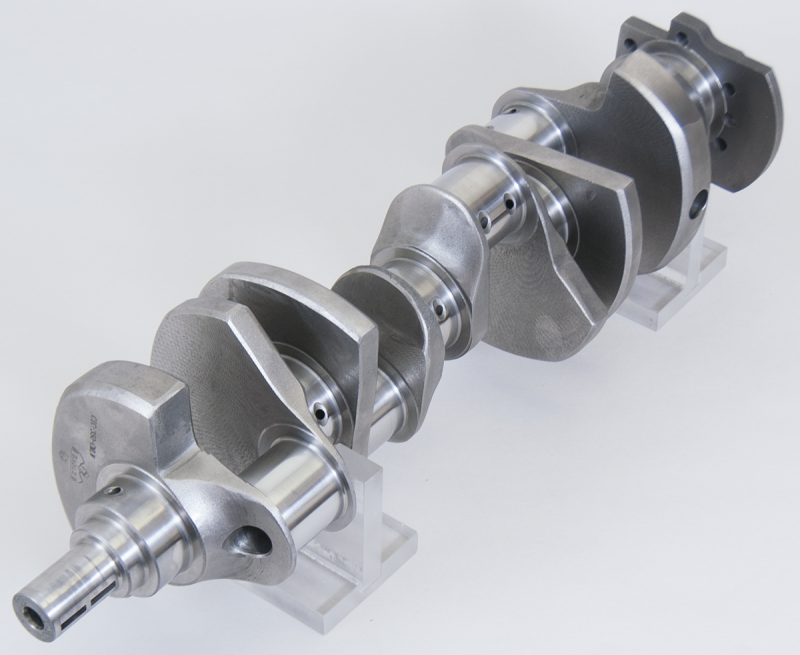

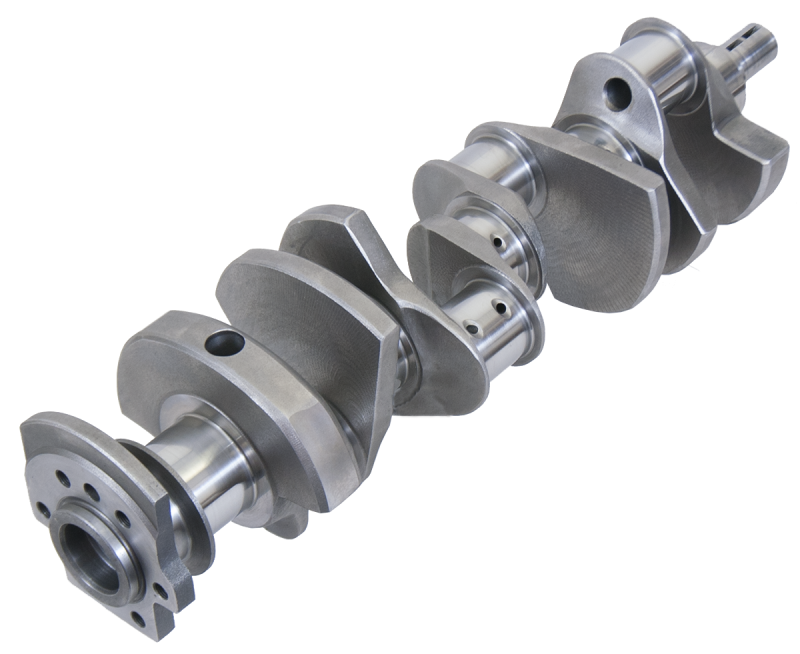

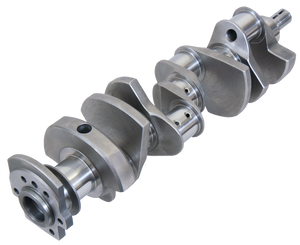

Eagle Chevrolet 350 Cast Crank 3.480in IMCA Legal Cast Crankshaft - 103503480CMLW

Eagle cast crankshaft is great alternative to and an upgrade from an O.E. crankshaft. .125" fillet radiuses mean in increase in strength, so chamfered or narrowed bearings are required. Lightening holes in all throws. IMCA legal.

Specifications

• Material: cast mild steel
• Intended Balance: internal
• Target Bobweight: 1855g
• Stroke: 3.480"
• Rod Journal: 2.1"
• Rod Journal Width: 1.900"
• Main Journals: 2.449"
• Minimum Rod Length: 5.700"
• Typical Weight: 48 lbs.
• Rear Seal Diameter: 2.431"
• Snout Diameter: 1.245"
• Flywheel Bolts: 6
