Eagle Part # EAG103523480CM

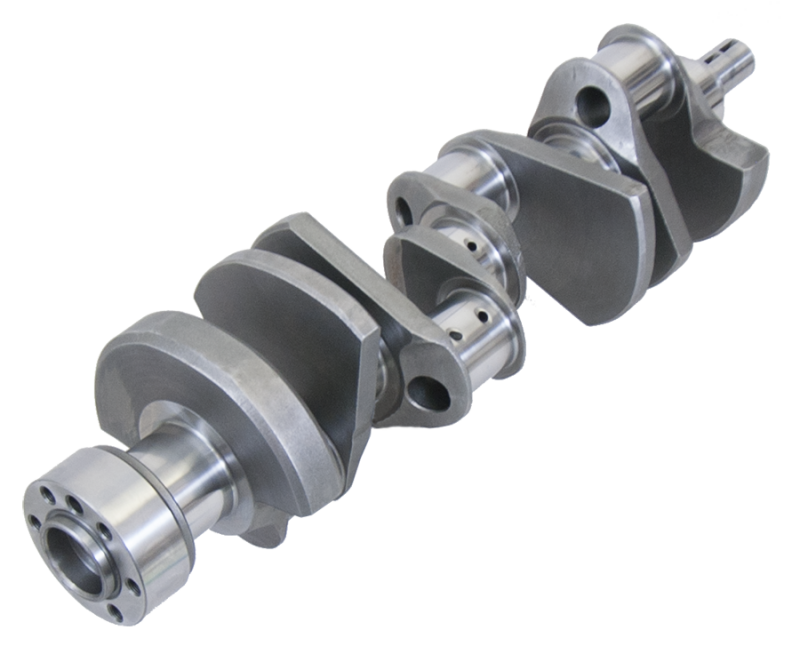

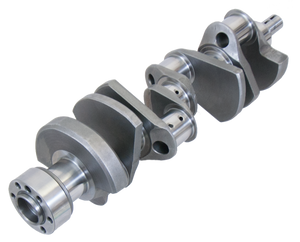

Eagle Chevrolet 350 1Pc Seal 3.480in Cast IMCA Legal Cast Crankshaft - 103523480CM

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Trusted since 2005 Questions? Email sales@raptorracing.com

Eagle cast crankshaft is great alternative to and an upgrade from an O.E. crankshaft. .125" fillet radiuses mean in increase in strength, so chamfered or narrowed bearings are required. No lightening holes on secord or third throw for IMCA legality.

  • Material: cast mild steel
  • Intended Balance: combination
  • Target Bobweight: 1855g
  • Stroke: 3.480"
  • Rod Journal: 2.1"
  • Rod Journal Width: 1.900"
  • Main Journals: 2.449"
  • Minimum Rod Length: 5.700"
  • Typical Weight: 51 lbs.
  • Rear Seal Diameter: 3.740"
  • Snout Diameter: 1.245"
  • Flywheel Bolts: 6
  • Pilot Bore Diameter: 1.094"
