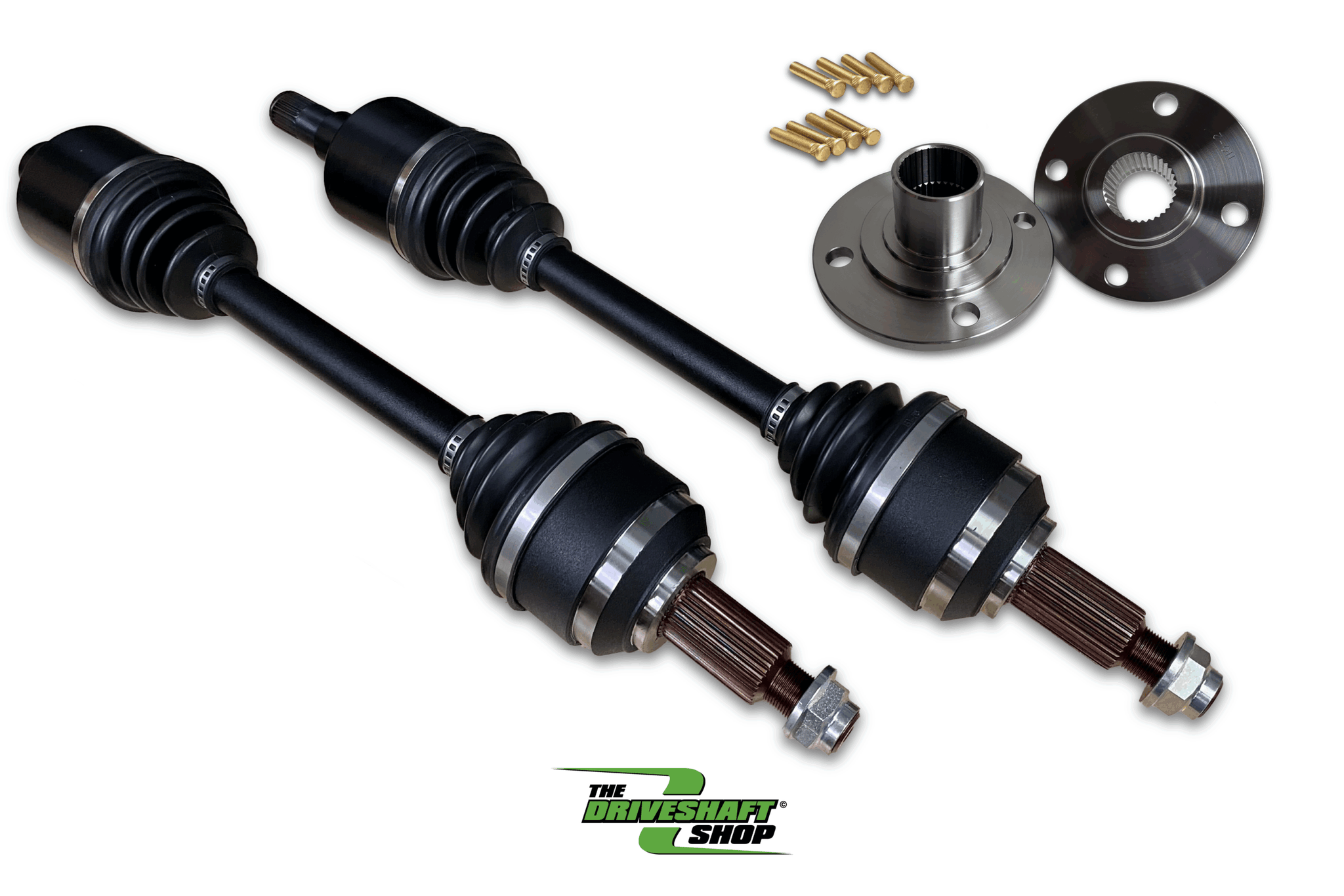

Introducing our New 1000hp Axle/Hub Kit for the Honda/Acura B-Series Hydraulic Applications. After 20+yrs of the Level 5.9 version being the proven go to for High HP Import Racing we’ve given them a revamp with the latest technology offered by The Driveshaft Shop today. Starting with our proprietary Modular designed 4340 Outer CV Housing with a 300M Splined Wheel stub to offer the strongest design with minimal wear. We’ve also increased the spline diameter on the 300M axle bars to help with the torsional properties of these axles, for improved strength to withstand the abuse of today’s 900-1000whp Applications using the OEM Sized 27-Spline Differential. These are primarily designed for the Hardcore Racer or High Powered “Street” cars that occasionally see some track duties.
FAQ/What’s Different:After years of R&D we’ve updated this Kit to incorporate our Proven Modular Design 2pc/300M Style Outer CV along with a larger diameter Splined Axle Bar. Now capable of handling well over 1000whp (old 5.9 Rating was 850hp) with the New 300M Splined Wheel Stub and 4340 CV Housing which provides low wear properties and longer lifespan.
Special Note: 92-2000 Honda Civic or 94-2001 Acura Integra (Large Bearing (1.695″ I.D. ABS Style Spindles Required from: EX or Si Honda Civic Sub models or 94-2001 Acura Integra OEM Spindles)
Vehicle Fitment: 92-2000 Honda Civic or 94-2001 Acura Integra with Hydraulic B-Series Drivetrain (Will Not work with Previous Generation Level 5.9 Wheel Hubs)
SKU: 510533
Warranty: 1-Year
Category: Acura / Integra / 1993-1995 Civic EG / B-Series / B-Series / 1994-2001 Integra (DC) / Civic / 1996-2000 Civic EK / Honda
