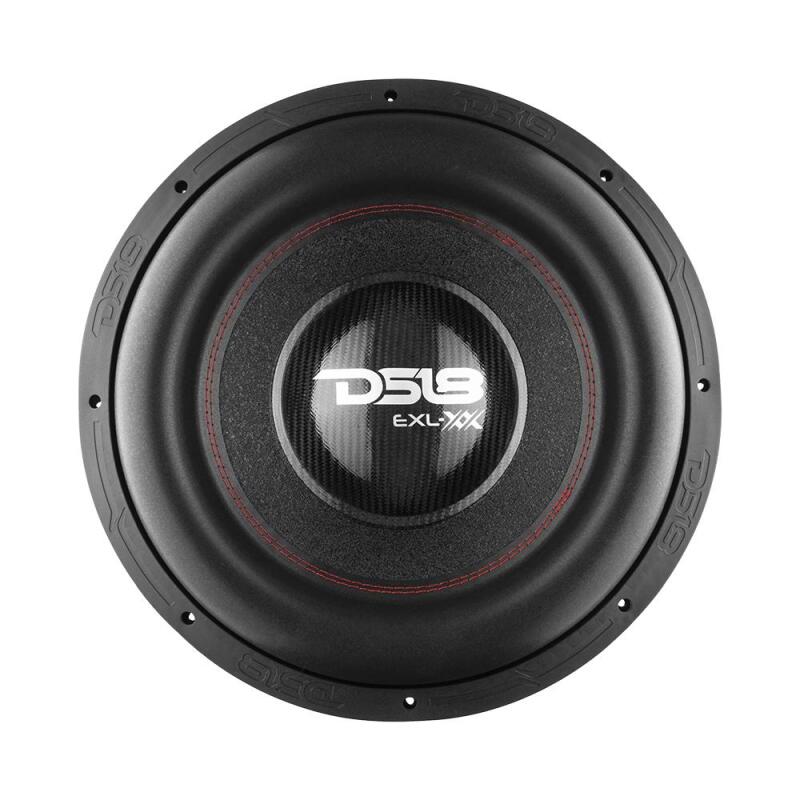

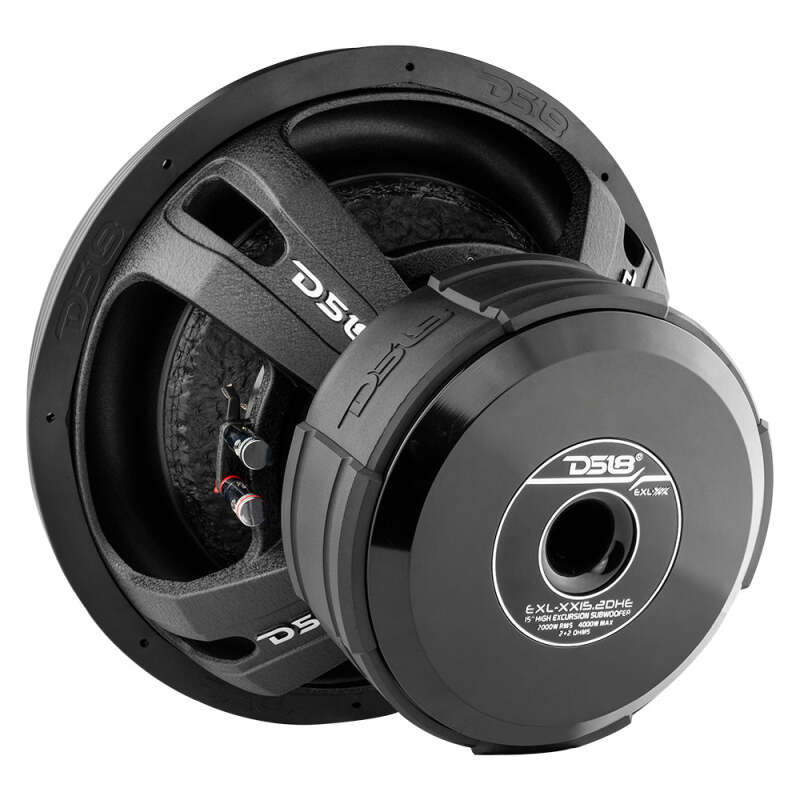

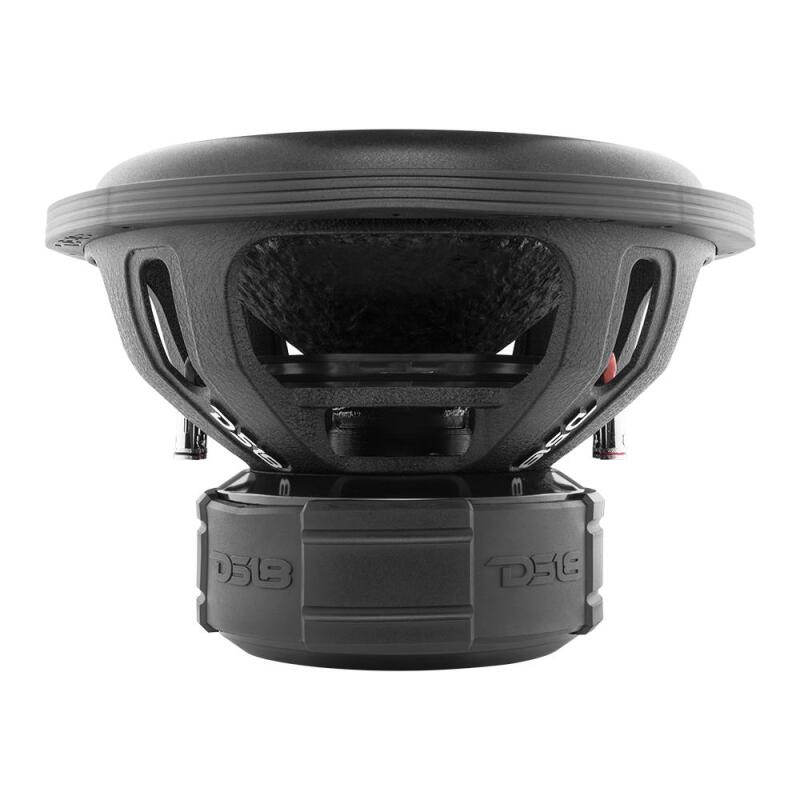

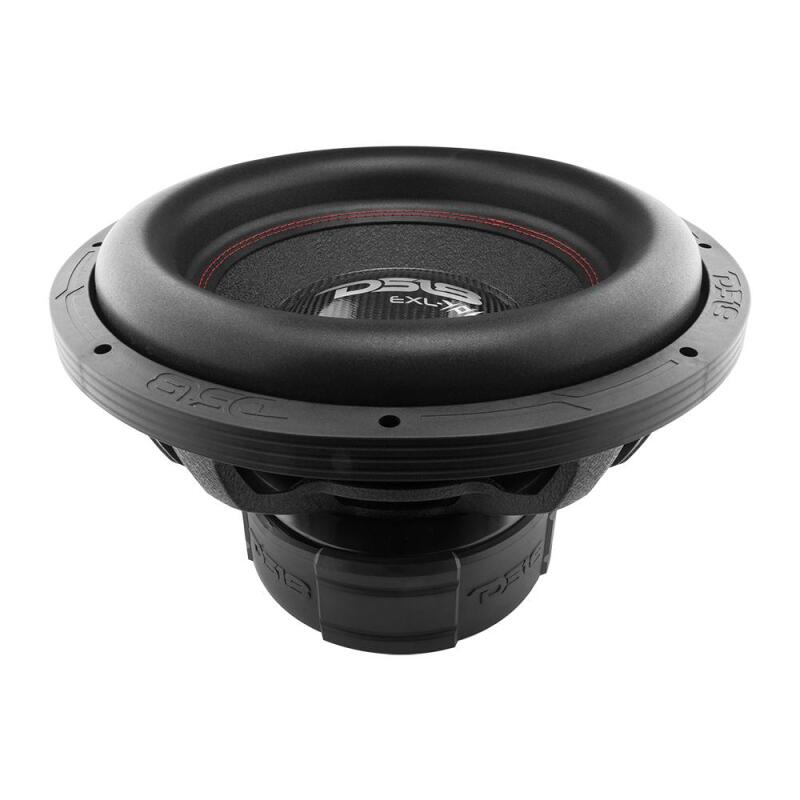

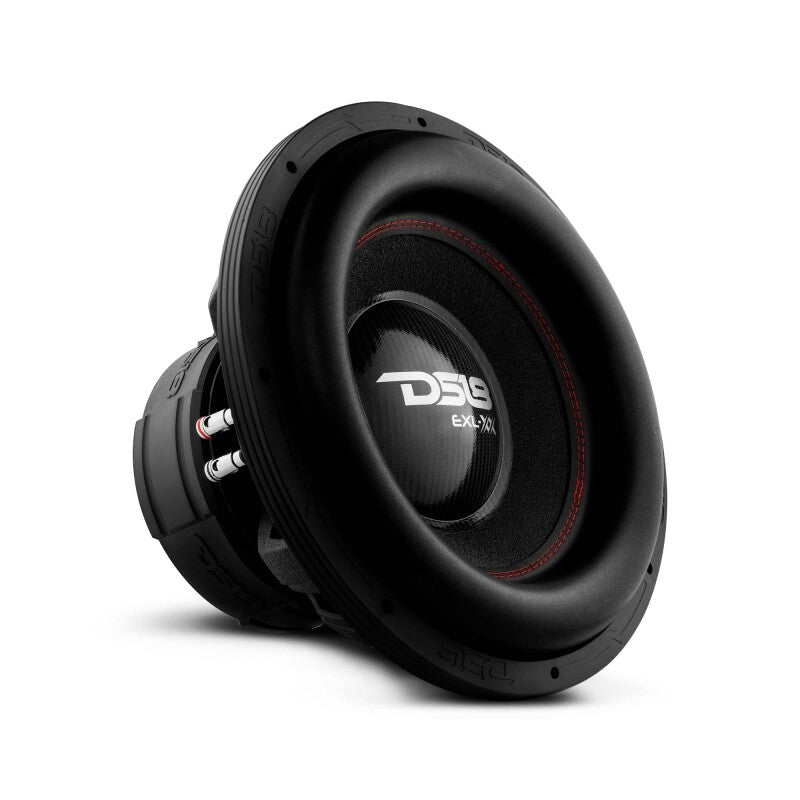

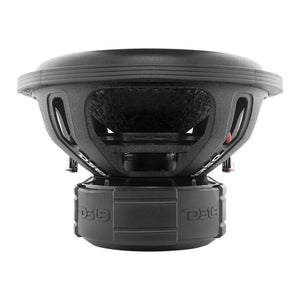

DS18 EXL-XX15.2DHE 15" High Excursion Car Subwoofer 4000 Watts Max 2-Ohm DVC
High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX15.2DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.
Highlights
- High Excursion surround for a very high amount of xmax.
- Great power handling of 2000w RMS and 4000w max.
- Three inch black aluminum voice coil for high power handling and great efficiency.
- FS of 35 hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.
Technical details
| Specifications |
|
| Nominal Diameter |
15 |
| Nominal Impedance |
2 + 2 Ohms |
| RMS Power Handling |
2000W |
| MAX Power Handling |
4000W |
| Sensitivity (1w/1m) |
88 dB |
| Frequency Response |
20Hz - 1.5KHz |
| Recommended Lo Pass Crossover |
80 Hz |
| Motor: |
|
| VC Diameter |
3" / 75.6mm |
| VC Former Material |
Black Aluminum |
| Winding Material |
CCAW |
| Cone Material |
Paper |
| Dust Cap Material |
Glass Fiber |
| Surround Material |
Foam |
| Basket Material |
Aluminum |
| Basket Color/Finish |
Black |
| Magnet Material |
Ferrite |
| Magnet Weight |
306 Oz |
| Displacement Volume |
3.26L |
| Thiele & Small Parameters |
|
| Equivalent Vol |
Vas 31.976L |
| Excursion(one way) |
Xmax 42 mm |
| Free Air Resonance |
Fs 34.9 Hz |
| Mechanical Factor |
Qms 5.159 |
| Electrical Factor |
Qes 0.584 |
| Total Factor |
Qts 0.525 |
| Moving Mass |
Mms 440.158 g |
| Compliance |
Cms 0.026 mm/N |
| Bl Factor |
BL 18.453 |
| VC Inductance |
Le 8.562 mH |
| Diaphragm Area |
Sd 804.25 cm² |
| Dc Resistance |
Re 2 + 2 ohms |
| Efficiency Bandwidth Product |
EBP 59.7 |

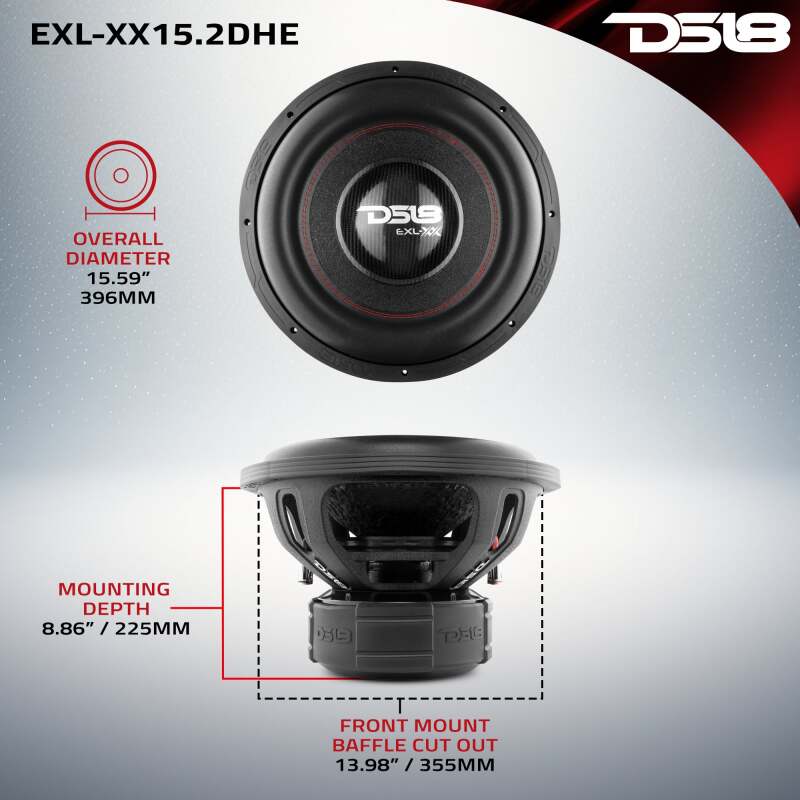

| Measurements |
|
| Overall Diameter |
15.59" / 396mm |
| Overall Depth |
10.24" / 260mm |
| Front Mount Baffle Cutout |
13.98" / 355mm |
| Mounting Depth |
8.86" / 225mm |
| Motor Diameter |
8.86" / 225mm |
