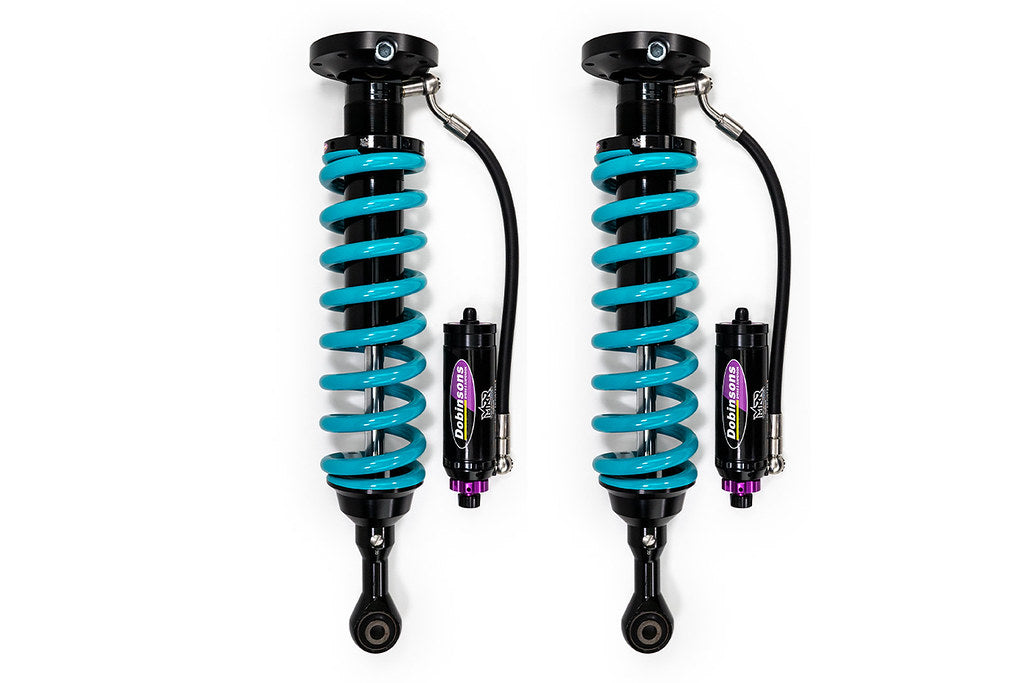

Dobinsons - MRR 3 Way Adjustable Monotube Reservoir Strut 2.6" Inverted Style - MRA59-A710

• Coil Springs are NOT included unless selected and purchased
• 16" coils with a 3" inner diameter are compatible with these struts

• C92-3016650 Specs
  • Inner Diameter - 3.0"
  • Length - 16"
  • Spring Rate - 650lb/in

• 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
• 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
• 20 Stage Low Speed Compression - For creepy crawling and cornering
• 15 Stage Rebound - Control your coils, prevent bucking
• 60mm CNC Machined High Flow Billet Aluminium Race Piston
• 66mm / 2.6" Bodies
• 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
• Upgraded 3 Stage FKM”HNBR Sealing System
• TSUGAMITM CNC machined components for precise tolerances
• ParkerTM Braided High Pressure Hoses
• 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
• T6 6061 Height Adjustable Spring Seat
• Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low”wear performance
• 60mm Full 6063 aluminum remote reservoir
• Lightweight CNC Machined Low Friction floating piston
• High Quality O.E.M. Grade Natural Rubber Bushings
• Single Piece Lower Leg
• EDP Surface Protection
• Direct Bolt-On Design
• CNC TIG Precision Welded Body End Mounts
• Fully Rebuildable Design

MRA59-A710 Instructions
