Adds SAE-compliant fog lights to the 2025-2027 Ford Maverick.

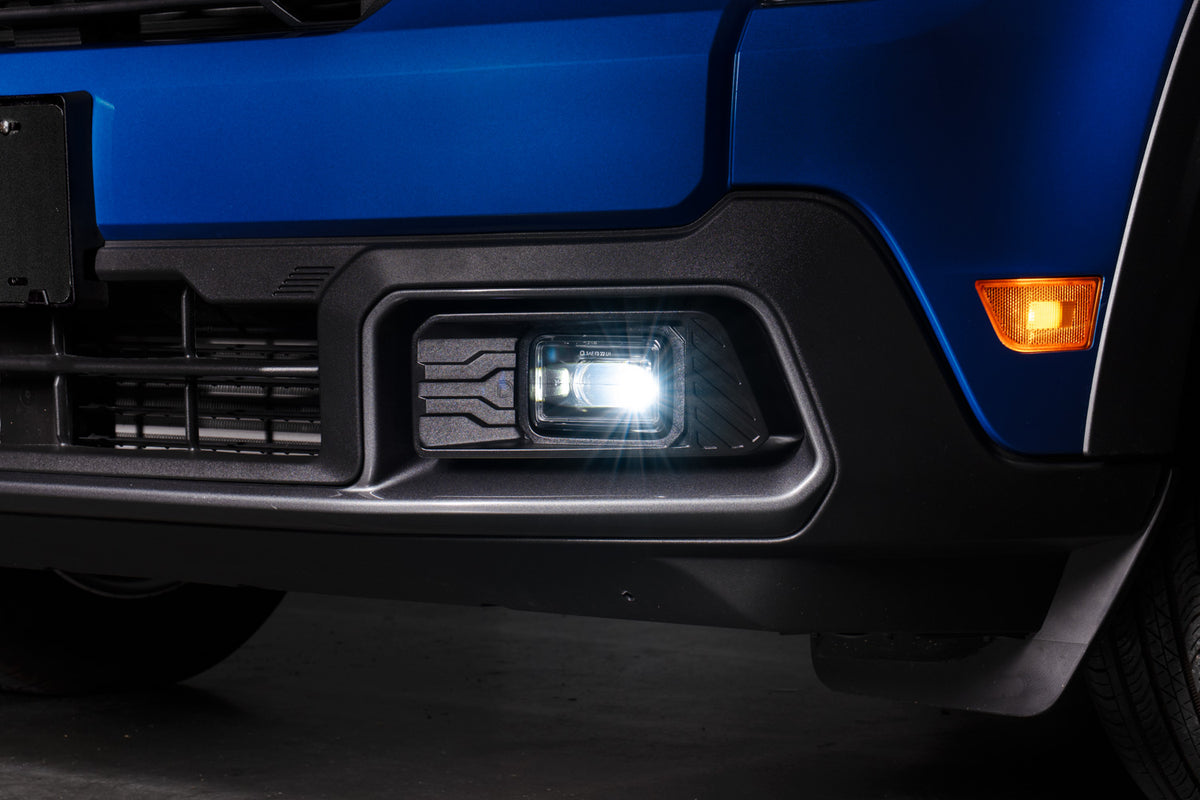

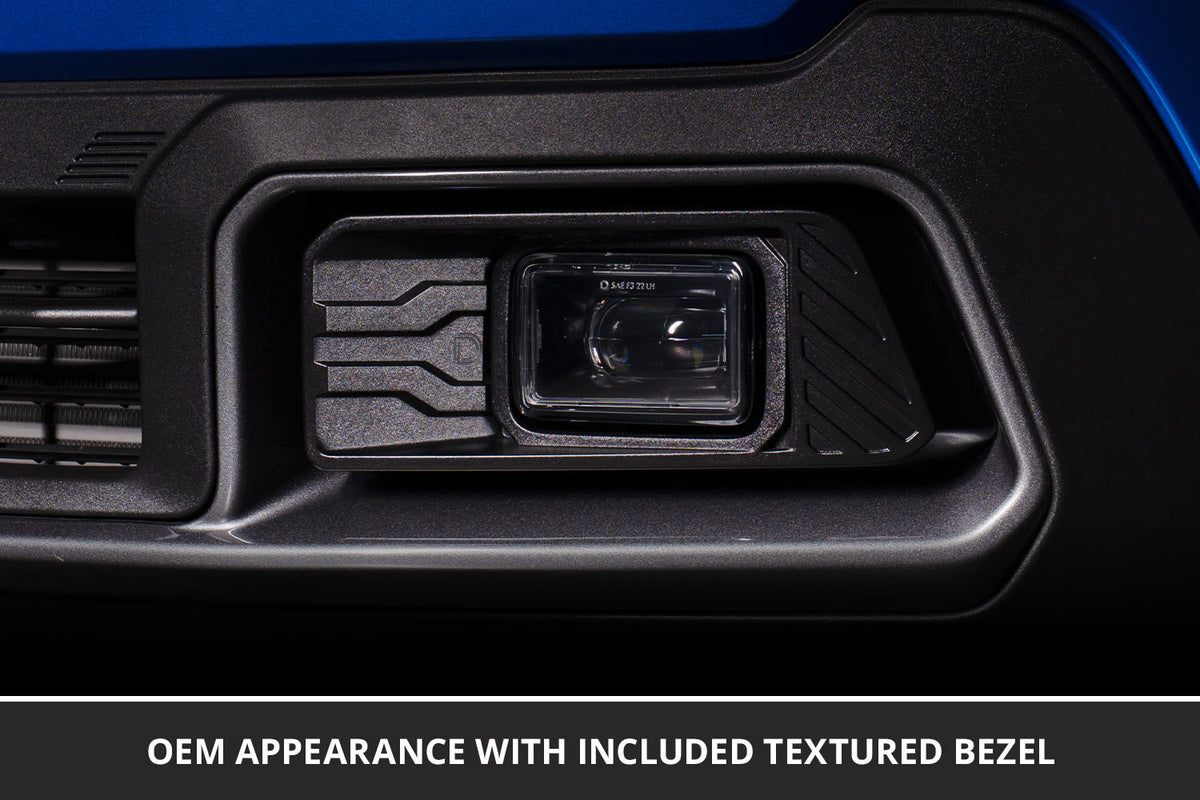

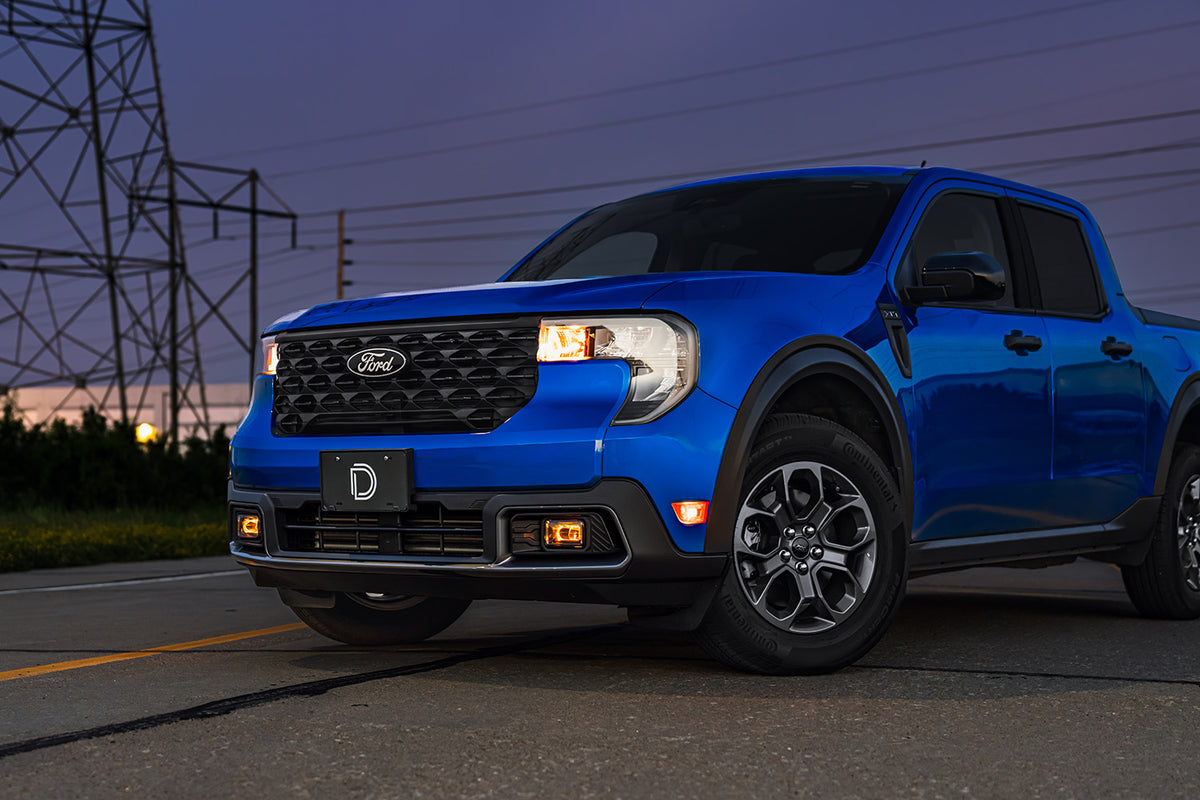

One of our most popular lighting upgrades is now available for the latest Ford Maverick. The Elite Series Add-On Fog Lamp Kit adds useful, SAE-compliant illumination directly in front of the vehicle, improving visibility in fog, dust, snow, and rain. Patent-pending, custom-designed bezels integrate the lamps cleanly into the factory bumper, delivering the performance of a dedicated fog light with an OEM-style appearance.

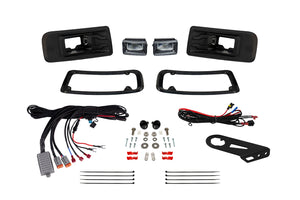

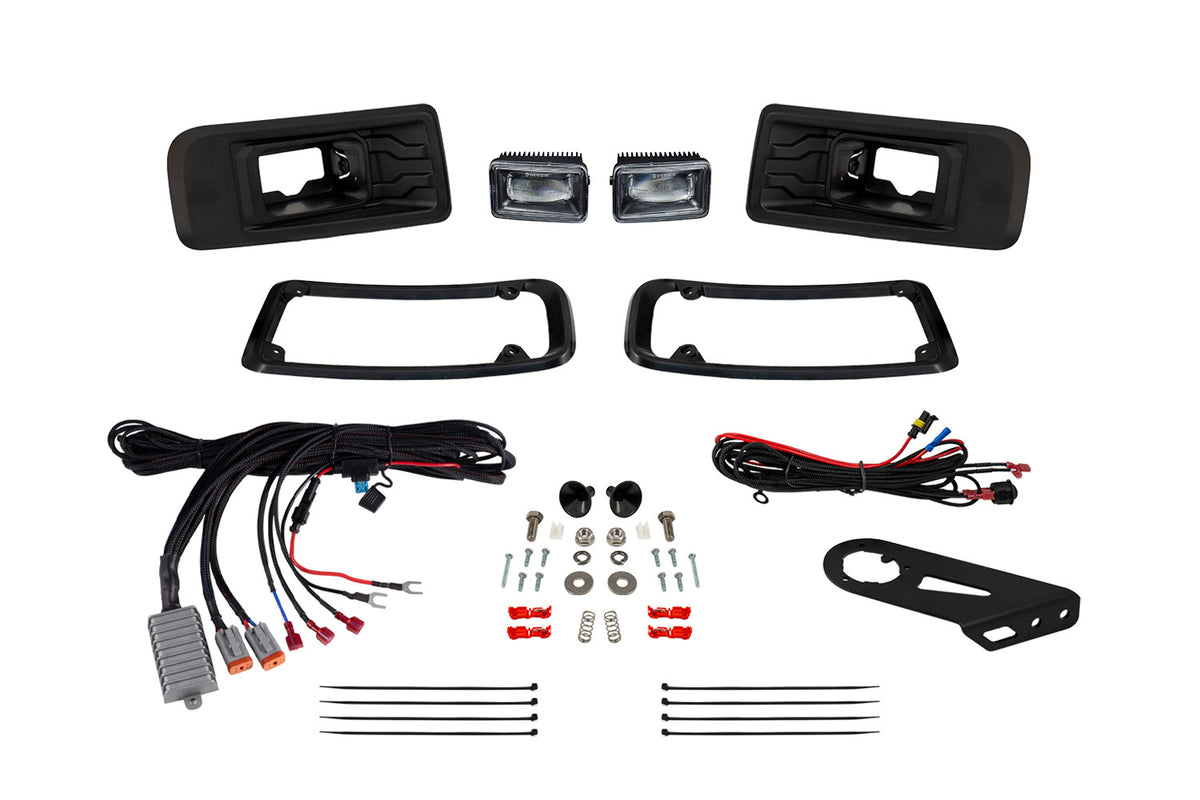

Included in the box
- <ul>

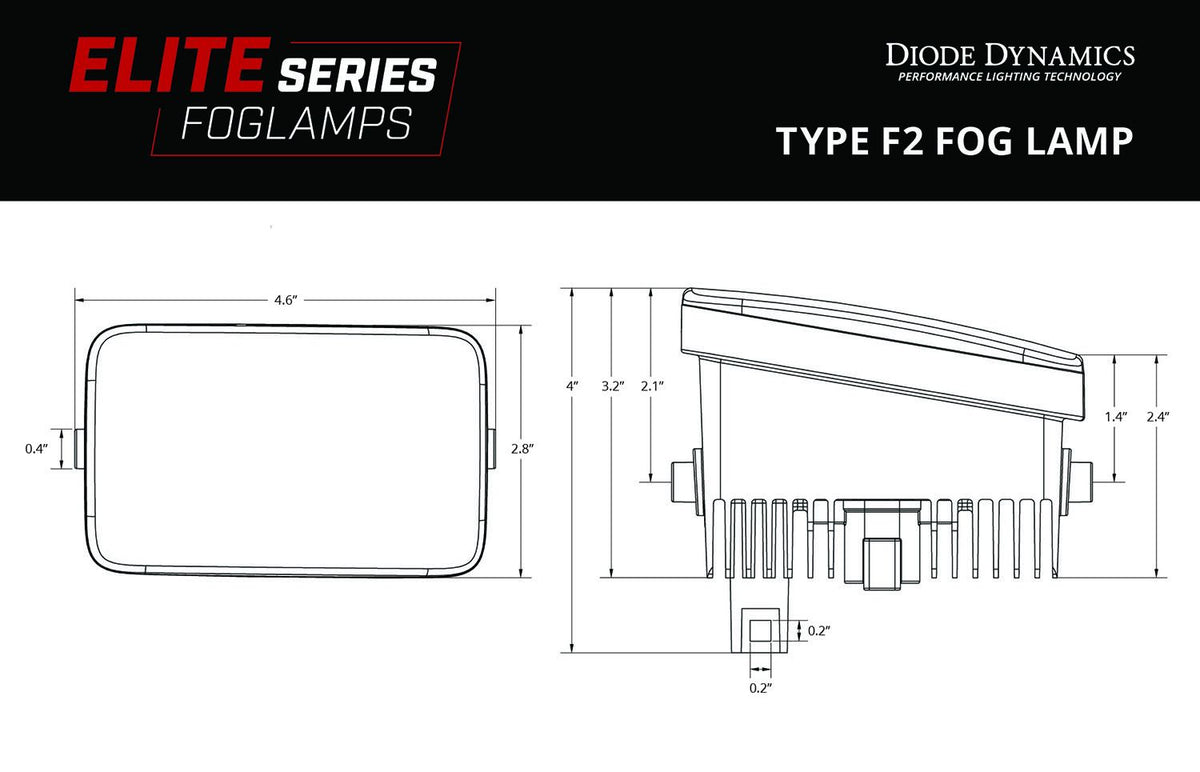

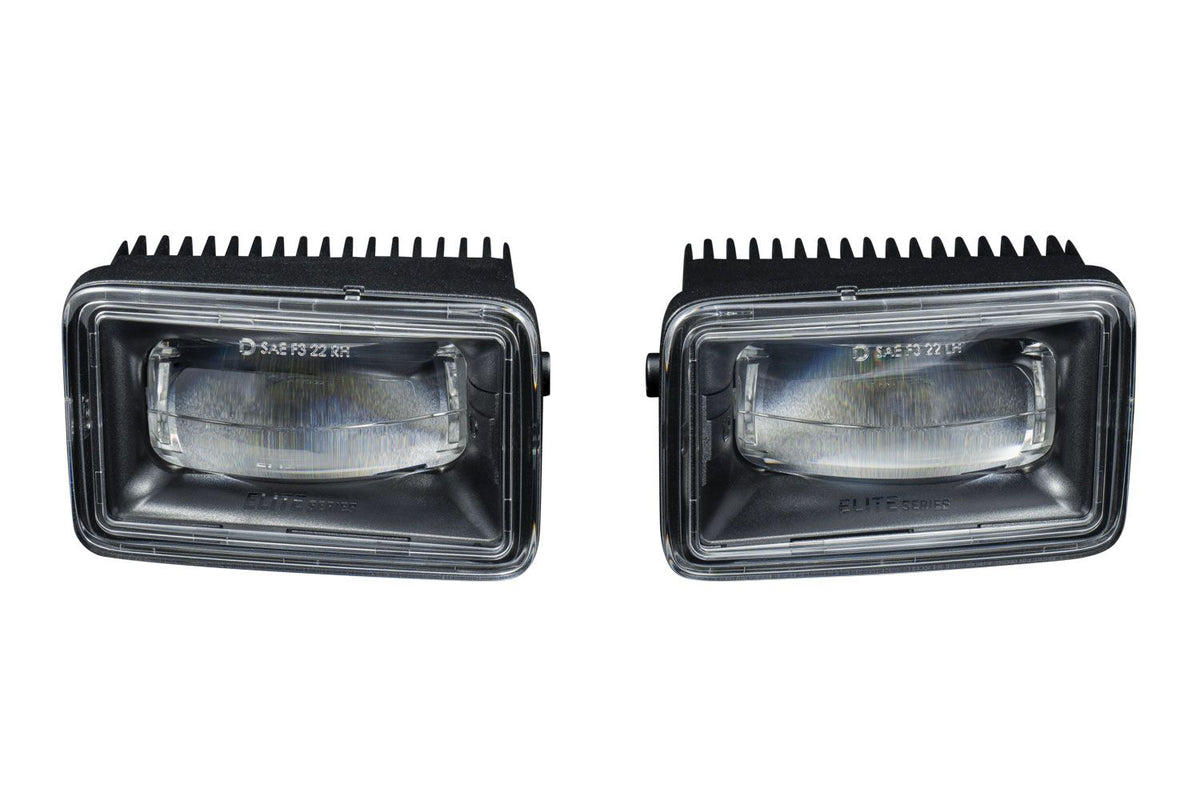

- <li>Two (2) Elite Series Type F2 fog lights</li>
- <li>Two (2) Vehicle specific fog light bezels</li>
- <li>Two (2) Support rings</li>
- <li>One (1) Add-on fog light wiring harness</li>
- <li>One (1) Speaker bracket</li>
- <li>Four (4) Zip ties</li>
- <li>Mounting hardware</li>
- </ul>
Specifications
| Beam Angle |
Fog 80°x6° |
| Bulbs Included |
No |
| Color Temp |
6000K |
| Compliance Rating |
SAE J583 Foglamp Beam Pattern |
| DOT Approved |
Yes |
| Housing Color |
Black |
| Housing Shape |
Rectangle |
| Input Power (watts) |

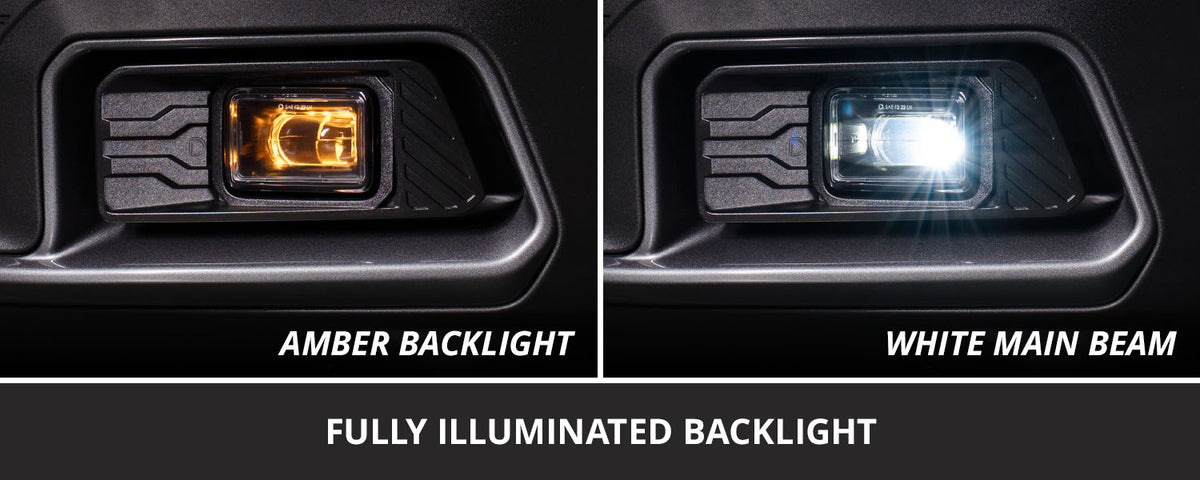

Main Beam: 16 Backlight: 2.0 |
| Intensity (lux) |
11 300 cd |
| Intrusion Rating |
IP69K Waterproof High Pressure |
| Light Beam Pattern |
Fog |
| Measured Output (lumens) |
1650 lm |
| Mounting Hardware Included |
Yes |
| Operating temperature |
-40C to 85C (-40F to 185F) |
| Operating Voltage |
9-16V |
| Street Legal |
Yes |
| Terminal Type |
Pin |
| Voltage |
9-16V |
| Wiring Harness Included |
Yes |
Shipping dimensions: 18 × 15 × 12 in, 8.7 lb
Installation instructions (PDF)
