Selectable white and yellow SAE fog output.
Features - Selectable white and yellow output from the SAE fog pods.
- SmartSelect control using the factory fog light switch.
- Dedicated white off-road pods provide additional output.
- Independent control of road-legal fog and off-road lighting.
- Integrated amber backlighting.
- Engineered and assembled in the USA.
Overview Lighting for Every Situation. This multi-pod kit combines Dual-Color SS3 SAE Fog pods with dedicated white off-road pods. The fog pods provide selectable 6000K white and 3000K yellow output, while the additional white pods deliver powerful off-road illumination.
SmartSelect Control. Switch the SAE fog pods between white and yellow using the factory fog light switch. Cycle the fog lights on and off three times to enter programming mode. When your preferred color is displayed, leave the lamps on for at least five seconds to save it.
Separate Functions. Dual-Color operation applies only to the SAE Fog pods. The off-road pods remain 6000K white and are controlled separately, allowing you to select road-legal fog output or additional off-road lighting as needed.
Consistent Fog Pattern. Both colors use the same focused SAE-compliant fog pattern, so changing colors does not change the beam shape or aiming. The integrated amber backlight remains separate from the main-beam functions.
Proven Reliability. Stage Series lighting is engineered, tested, and assembled in the USA using globally sourced materials for dependable performance in demanding conditions.
Details

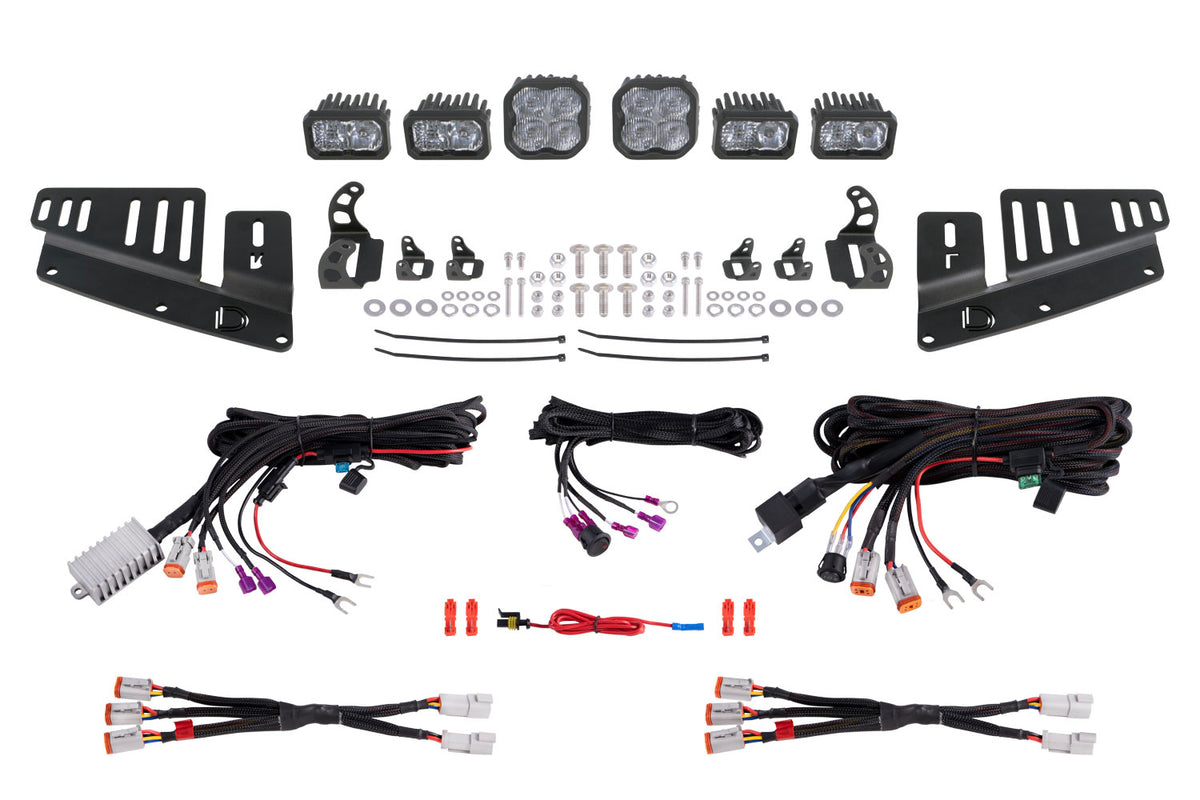

- <p><strong>Sport/Pro</strong></p> <ul> <li>Two (2) Ford Bronco fog pocket brackets</li> <li>Two (2) Sport or Pro SS3 LED pods</li> <li>Four (4) Sport or Pro SSC2 LED pods</li> <li>One (1) dual-output fog harness</li> <li>One (1) Heavy Duty Dual Output 4-pin harness</li> <li>Two (2) 3-way backlight splitters</li> <li>Four (4) zip ties</li> <li>Mounting hardware and guide</li> </ul> <p><strong>Max</strong></p> <ul> <li>Two (2) Ford Bronco fog pocket brackets</li> <li>Two (2) Max SS3 LED pods</li> <li>Four (4) Pro SSC2 LED pods</li> <li>One (1) dual-output fog harness</li> <li>One (1) Heavy Duty Dual Output 4-pin harness</li> <li>Two (2) 3-way backlight splitters</li> <li>Four (4) zip ties</li> <li>Mounting hardware and guide</li> </ul> <p>The "Yellow" kits include two Yellow SS3 LED pods, and four White SSC2 LED pods.</p>
Specifications
| Color Temp |
3000K 6000K |
| Compliance Rating |
SAE J583 Foglamp Beam Pattern |
| Input Power (watts) |
20 |
| Intensity (lux) |
SSC2: 16 000 cd SS3: 10 600 cd |
| Intrusion Rating |
IP69K Waterproof High Pressure |
| Measured Output (lumens) |
SSC2: 871 lm SS3: 1 520 lm |
| Operating temperature |
-40C to 85C (-40F to 185F) |
| Operating Voltage |
9-30V |
Shipping dimensions: 18 × 15 × 12 in, 17 lb
