Selectable white and yellow SAE fog output.
Features - Selectable white and yellow output from the SAE fog pods.
- SmartSelect control using the factory fog light switch.
- Dedicated white off-road pods provide additional output.
- Independent control of road-legal fog and off-road lighting.
- Integrated amber backlighting.
- Engineered and assembled in the USA.
Overview Lighting for Every Situation. This multi-pod kit combines Dual-Color SS3 SAE Fog pods with dedicated white off-road pods. The fog pods provide selectable 6000K white and 3000K yellow output, while the additional white pods deliver powerful off-road illumination.
SmartSelect Control. Switch the SAE fog pods between white and yellow using the factory fog light switch. Cycle the fog lights on and off three times to enter programming mode. When your preferred color is displayed, leave the lamps on for at least five seconds to save it.
Separate Functions. Dual-Color operation applies only to the SAE Fog pods. The off-road pods remain 6000K white and are controlled separately, allowing you to select road-legal fog output or additional off-road lighting as needed.
Consistent Fog Pattern. Both colors use the same focused SAE-compliant fog pattern, so changing colors does not change the beam shape or aiming. The integrated amber backlight remains separate from the main-beam functions.
Proven Reliability. Stage Series lighting is engineered, tested, and assembled in the USA using globally sourced materials for dependable performance in demanding conditions.
Details

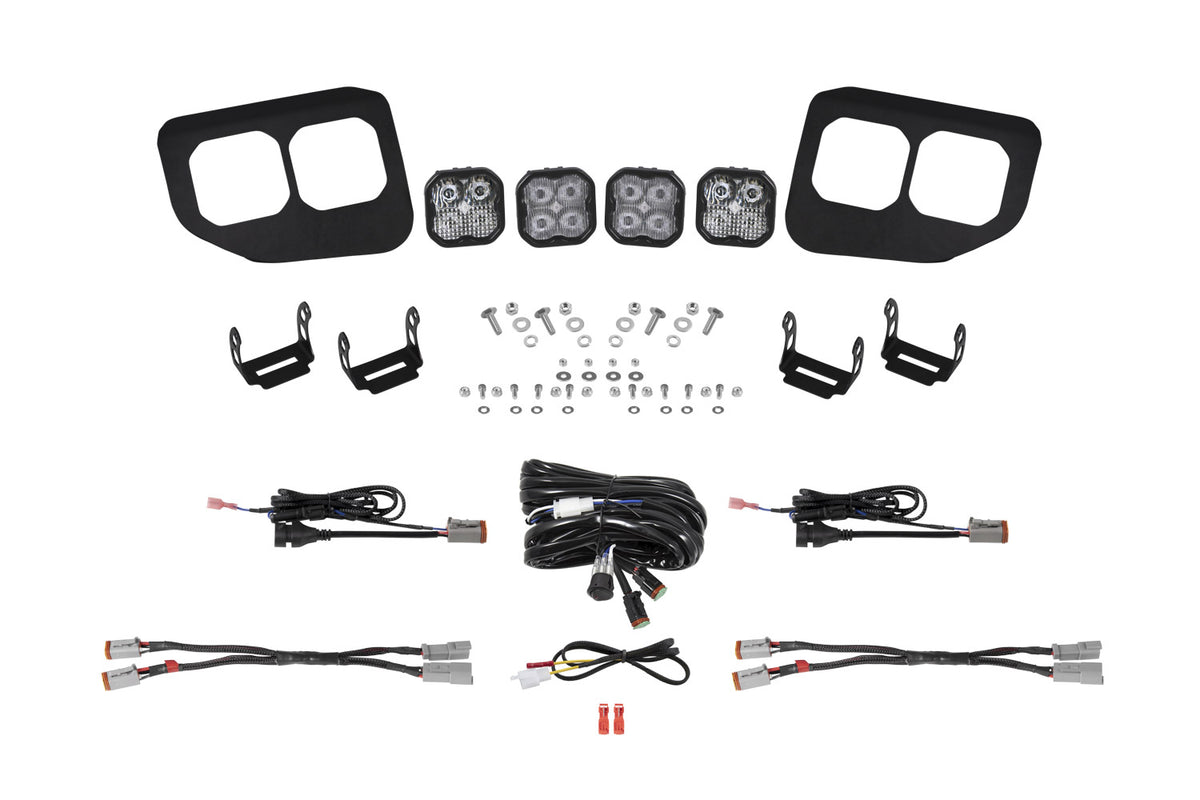

- <ul> <li>Two (2) Ford Super Duty Fog Pocket Brackets</li> <li>Two (2) SS3 SAE Fog LED pods</li> <li>Two (2) SS3 Combo/Driving LED pods</li> <li>One (1) Dual Fog Pocket Backlight Splitter</li> <li>One (1) Heavy Duty Dual Output Wiring Harness</li> <li>One (1) 9006 Backlight Tap Wire Kit</li> <li>Mounting Hardware and Guide</li> </ul> <p>The "Yellow" kits include two Yellow SS3 Fog LED pods, and two White SS3 Combo/Driving LED pods.</p>
Specifications
| Beam Angle |
Combo/Driving 80°x30° Flood 80°x50° |
| Color Temp |
3000K 6000K |
| Compliance Rating |
SAE J583 Foglamp Beam Pattern |
| Input Power (watts) |
20 |
| Intensity (lux) |
9 100 cd |
| Intrusion Rating |
IP69K Waterproof High Pressure |
| Measured Output (lumens) |
White: 1050 Yellow: 860 |
| Operating temperature |
-40C to 85C (-40F to 185F) |
| Operating Voltage |
9-30V |
| Raw Output (lumens) |
2262 |
Shipping dimensions: 20 × 12 × 10 in, 11.85 lb
