Selectable white and yellow SAE fog output.
Features - Selectable 6000K white and 3000K yellow output.
- SmartSelect control using the factory fog light switch.
- Wide, SAE-compliant fog pattern in both colors.
- OEM-style appearance and performance.
- Integrated amber backlight.
- Engineered and assembled in the USA.

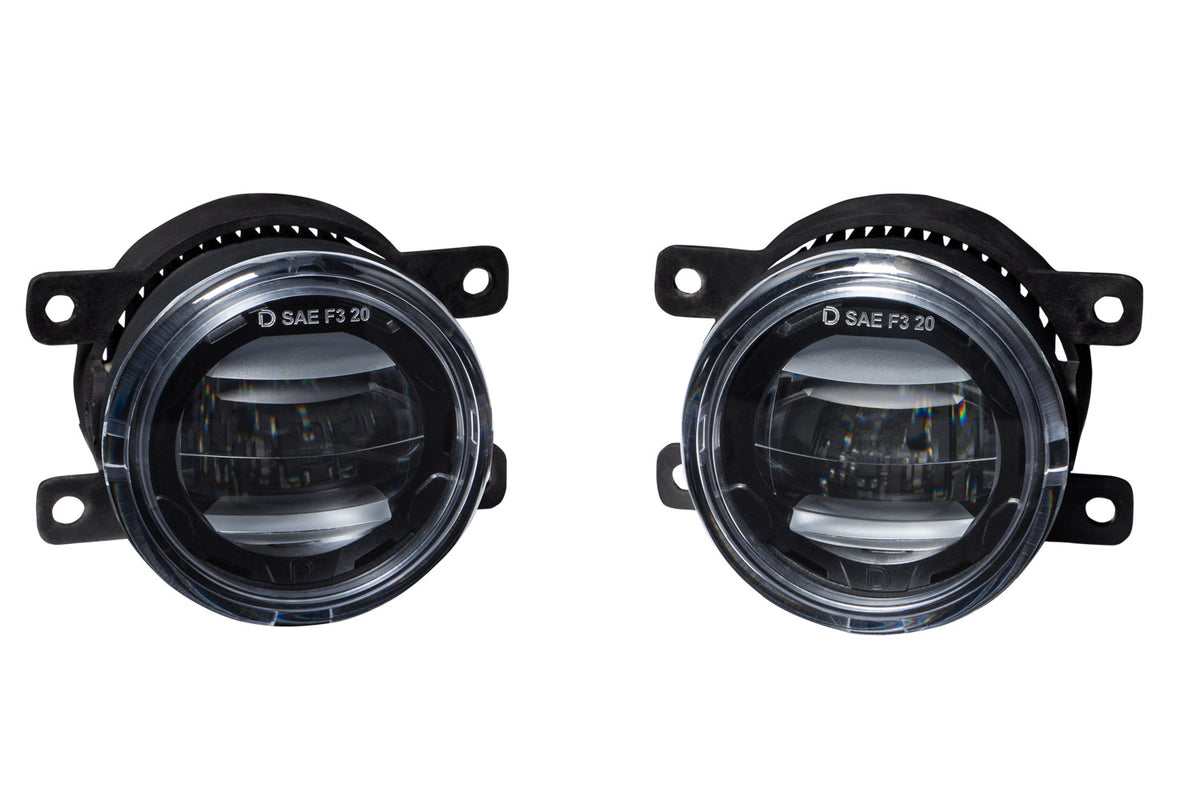

Overview Two Colors in One. The Elite Series Dual-Color Fog Lamp combines 6000K cool white and 3000K selective yellow output in one lamp. Choose crisp white output for a modern factory-style appearance or selective yellow for improved contrast in rain, snow, fog, and dust.
SmartSelect Control. Switch colors using the factory fog light switch, with no additional selector required. Cycle the lamps on and off three times to enter programming mode. When your preferred color is displayed, leave the lamps on for at least five seconds to save it.
Output that Outperforms. A custom-engineered optic produces a wide, smooth fog pattern with a sharp cutoff to reduce glare. Both white and yellow use the same focused SAE-compliant pattern, so changing colors does not change the beam shape or aiming.
Amber Backlight. The integrated amber backlight fully illuminates the main lens and operates separately from the selectable white and yellow main beam, adding a distinctive accent when the main beam is not in use.
Proven Reliability. Elite Series lamps are engineered, tested, and assembled in the USA using globally sourced materials and are built for dependable performance in demanding conditions.
Details
- <ul> <li>Two (2) Elite Series Type A fog lamps</li> <li>Two (2) H11 4-pin DT backlight tap wires</li> <li>Two (2) T-taps</li> <li>Mounting guide</li> </ul>
Specifications
| Beam Angle |
Fog 80°x6° |
| Color Temp |
3000K 6000K |
| Compliance Rating |
SAE J583 Foglamp Beam Pattern |
| Input Power (watts) |
13.2 |
| Intensity (lux) |
White: 12 900 Yellow: 9 200 |
| Intrusion Rating |
IP68 Waterproof |
| Measured Output (lumens) |
White: 590 Yellow: 400 |
| Operating temperature |
-40C to 85C (-40F to 185F) |
| Operating Voltage |
9-16V |
| Raw Output (lumens) |
White: 1500 Yellow: 1250 |
Shipping dimensions: 10 × 8 × 6 in, 2.8 lb
