SKU: SKU: CCA511-12

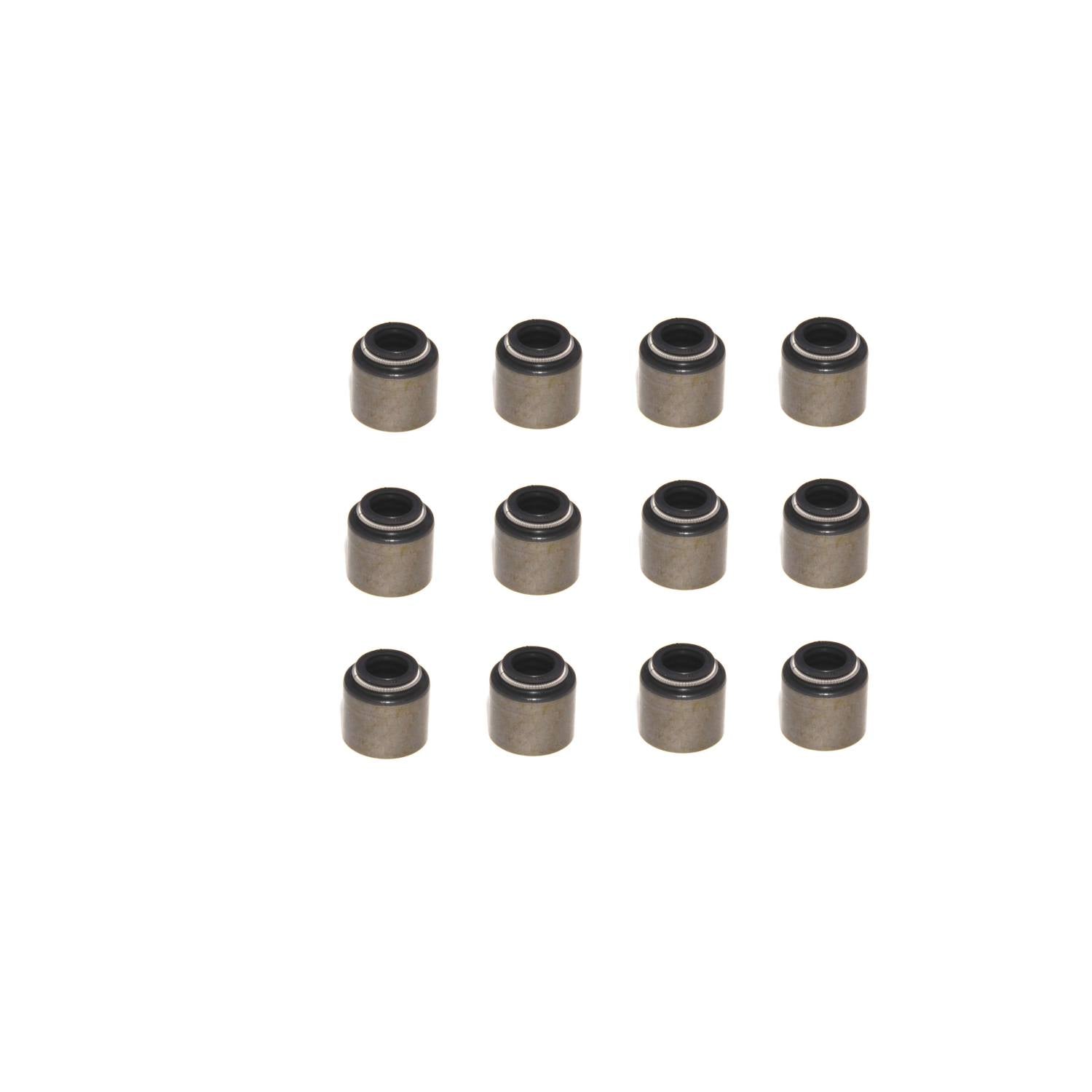

Set of 12 Steel Viton Valve Seals for .500" Guide Size, 8mm Valve Stem
Application: Engines w/ 0.500" OD Valve Guides and 8 mm Valve Stems
Providing the best sealing properties and spring clearance, viton valve seals are an excellent choice in performance applications. The 511 seals have a .600" OD and fit LS applications with 8mm valves and .500" OD guides.
COMP Cams valve stem Seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. Smaller diameter Viton Seals are available for triple spring Applications.
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.
