COMP Cams Part # CCA535-1

Comp Cams Valve Seal, Ford Power Stroke 6.0/6.4 - 535-1

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

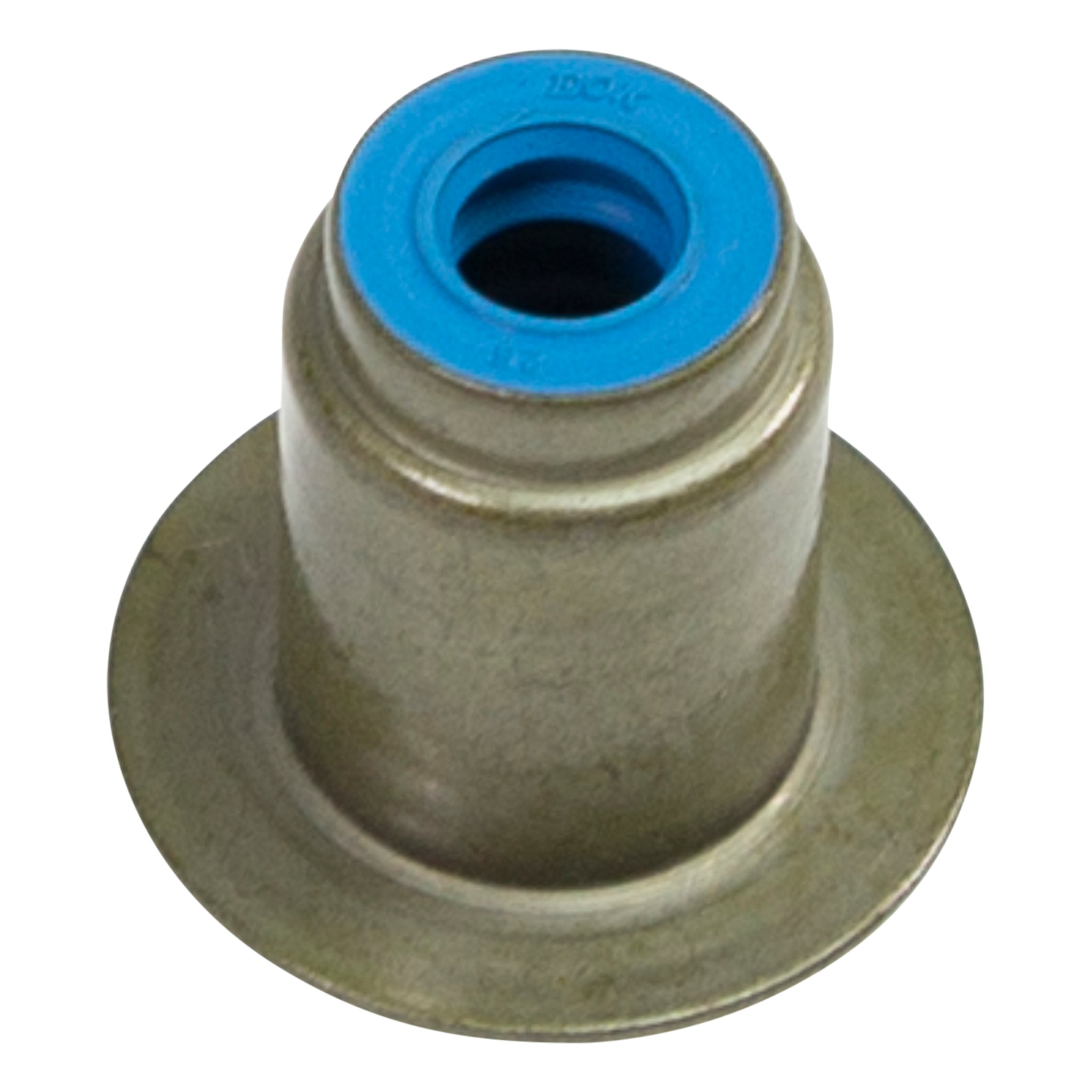

Valve Stem Oil Seal Viton Seal '03-'10 Ford 6.0/6.4L Powerstroke

Application: 2003-2010 Ford 6.0/6.4L Powerstroke

Valve Seal for 7mm Valves and .512 Guides

COMP Cams offers a complete line of valve stem Seals to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. This Seal is for 7mm valves and .512 guides and able to be used for Ford 6.0L/6.4L Power Stroke engines.

COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.

  • Seal Outer Diameter: 1.000 mm
  • Valve Seal Type: Top Hat
  • Valve Guide Outer Diameter: 13 mm
  • Valve Stem Outer Diameter: 7 mm
  • Valve Seal Outer Diameter: 25.4 mm
