SKU: SKU: CCA500-1

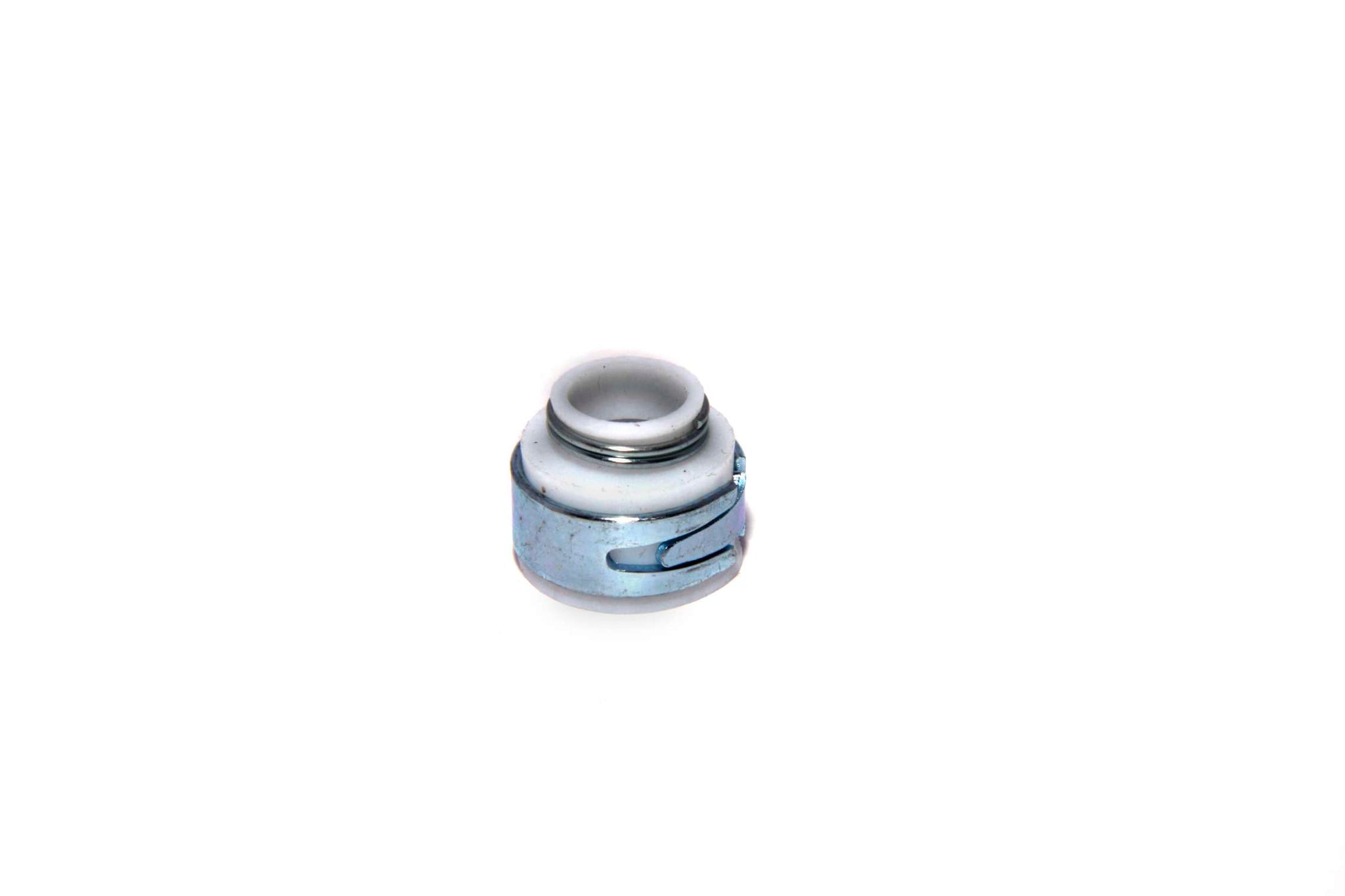

1 PTFE Valve Seal for .530" Guide Size, 5/16" Valve Stem
Application: Engines with 0.530" OD Valve Guides and 5/16" Valve Stems
COMP's Positive Stop PTFE valve seals offer more clearance for dual springs with better sealing than o-ring or umbrella seals. This 500 seal has a .630" outer diameter and fits applications with 5/16" valves and .530" OD valve guides.
<ul><li>Fits: 5/16" Valve Stems - .530" Guides (.630" Outer Diameter)</li><li>Valves Seals keep unwanted oil from entering the combustion chamber through clearance in the valve guides</li><li>Smaller diameter than COMP Umbrella Seals to allow use with double springs</li></ul>
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.
