SKU: SKU: CCA5022CPG

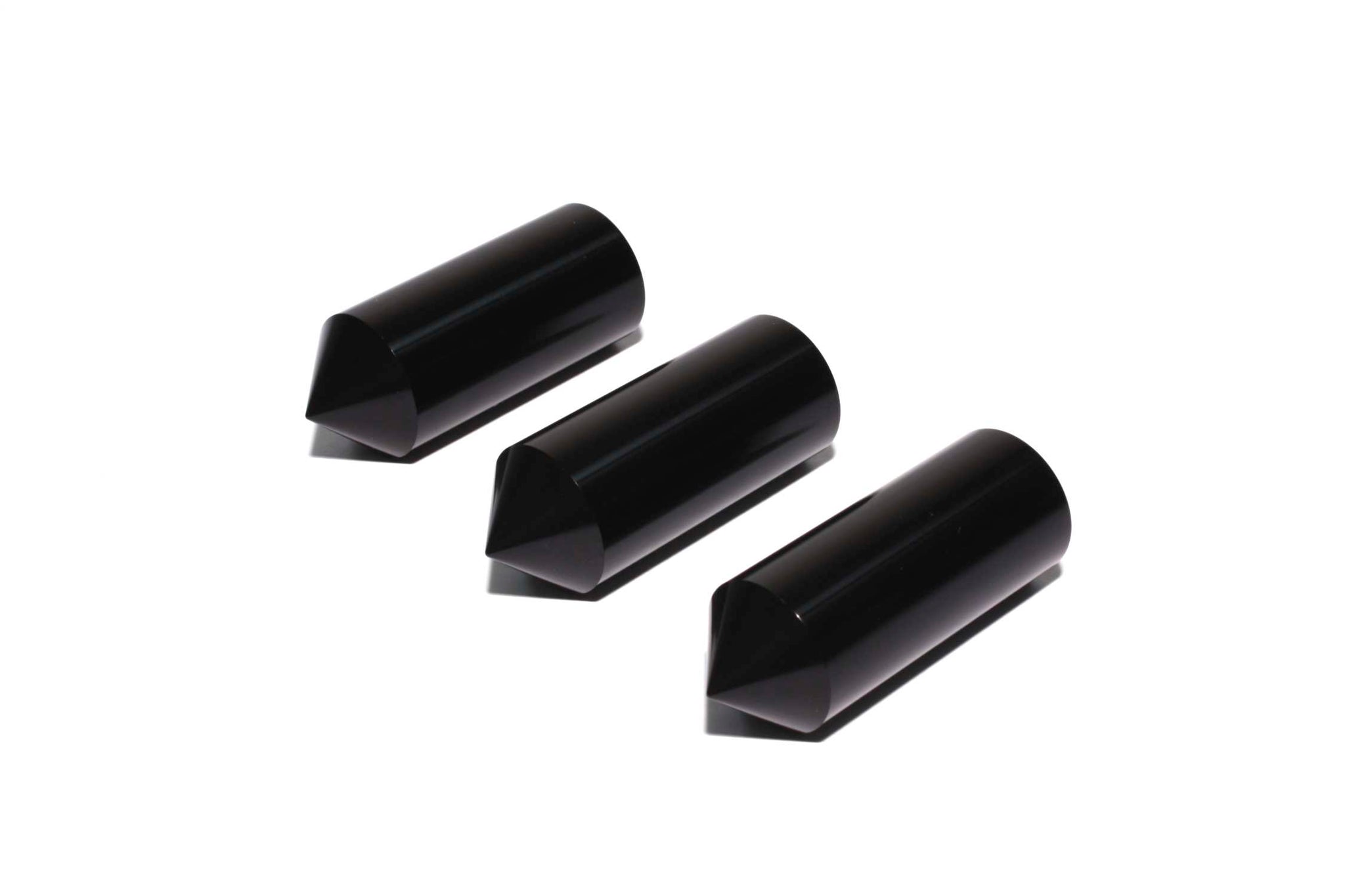

Camshaft Lobe Center Marking Tool Set
The camshaft lobe center marking tool set is designed to ensure that your lifters are riding in the middle of the camshaft lobe. This set comes with .842", .875" and .904" diameter tools for use in a variety of engines.
The Camshaft lobe center marking tool set is designed to ensure that your lifters are riding in the middle of the Camshaft lobe. This set comes with .842", .875" and .904" diameter tools for use in a variety of engines.
With this tool, the user marks the cam lobe with a type of marking fluid (e.g. dry erase marker or dychem), installs the cam, and then places the tool in the lifter bore. Next, the cam will be turned over to mark a line around the cam lobe. The cam is then removed, the distance from the edge of the lobe is measured and finally, shims are changed to achieve the correct lobe to lifter alignment.
With this tool, the user marks the cam lobe with a type of marking fluid (e.g. dry erase marker or dychem), installs the cam, and then places the tool in the lifter bore. Next, the cam will be turned over to mark a line around the cam lobe. The cam is then removed, the distance from the edge of the lobe is measured and finally, shims are changed to achieve the correct lobe to lifter alignment.
