COMP Cams Part # CCA26986MCS-KIT

Comp Cams Spring Kit, Hyd Flat Tappet, Magnum 5.2L/5.9L Head - 26986MCS-KIT

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Drop-In Valve Spring Kit for Magnum 5.2L / 5.9L Heads with .500" Max Lift

Application: 1992–2000 Dodge Dakota 5.2L, 1992–2001 Dodge Ram 5.2L, 1998–2000 Dodge Durango 5.2L, 1992–1993 Dodge Ramcharger 5.2L, 1992–2002 Dodge Ram Van 5.2L, 1993–1998 Jeep Grand Cherokee 5.2L

Application: 1998–2003 Dodge Dakota 5.9L, 1992–2002 Dodge Ram 5.9L, 1992–2003 Dodge Ram Van/Dodge Ram Wagon 5.9L, 1998–2003 Dodge Durango 5.9L, 1992–2001 Dodge Ramcharger 5.9L, 1998 Jeep Grand Cherokee 5.9 Limited 5.9L

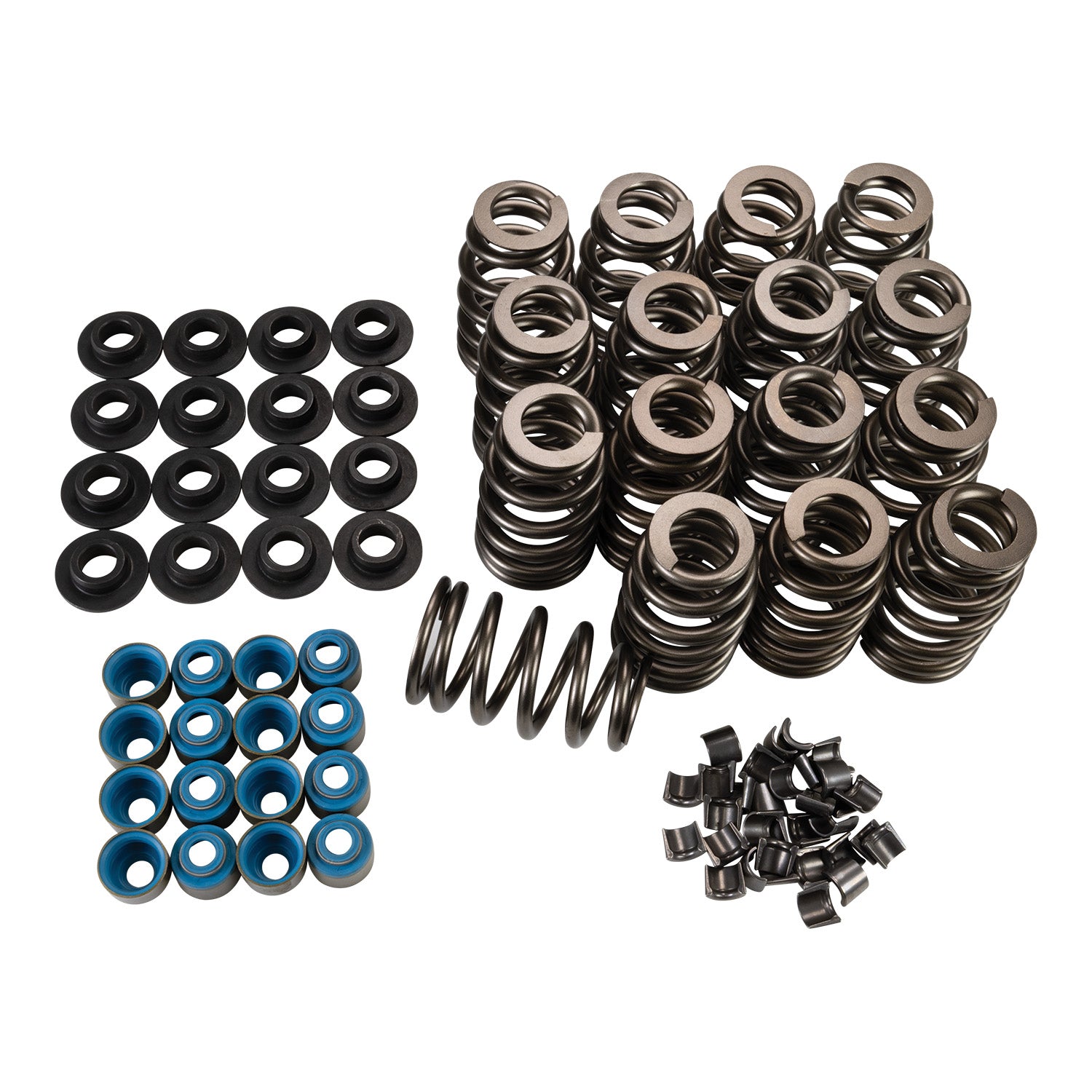

COMP Cams Magnum 5.2L/5.9L Drop-in Valve Spring Kit allows up to .500" lift for aggressive lobe profiles. The kit includes beehive valve springs, retainers, and Metal-body Viton valve Seals while using stock valve locks.

COMP Cams Magnum 5.2L/5.9L Drop-in Valve Spring Kit is designed to maximize the potential of Magnum Cylinder Heads. Allowing up to .500" of lift, this kit provides spring rates that can handle significantly more aggressive lobe profiles. Designed to drop right onto stock Magnum 5.2L/5.9L cylinder heads, it includes beehive valve springs, retainers, and Metal-body Viton valve Seals while using stock valve locks. By combining quality components in a package that does not require any machining, the kit is developed to make your valve train upgrade as easy as possible!

  • No Machining Required!
  • Includes beehive springs, retainers, and metal body Viton valve seals

  • Open Pressure: 305 lb
  • Top Outside Diameter of Valve Spring (in): 1.065
  • Bottom Outside Diameter of Valve Spring (in): 1.415
  • Top Inside Diameter of Valve Spring (in): 0.650
  • Bottom Inside Diameter of Valve Spring (in): 1.00
  • Spring Rate: 280 lb/in
  • Maximum Coil Bind Height (in): 1.060
  • Valve Spring Finish: Raw
  • Valve Spring Quantity: 16
  • Material: Steel
  • Number of Springs per Valve: 1
  • Open Height (in): 1.100
  • Spring Open Height: 1.100 in.
  • Load at Open Height (lbs): 305
