COMP Cams Part # CCA433560

COMP Cams Camshaft Set 2018+ Ford Coyote 5.0L Stage 1 Blower & Turbo - 433560

Before you order

Customers also viewed

4.8 on Google967 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter

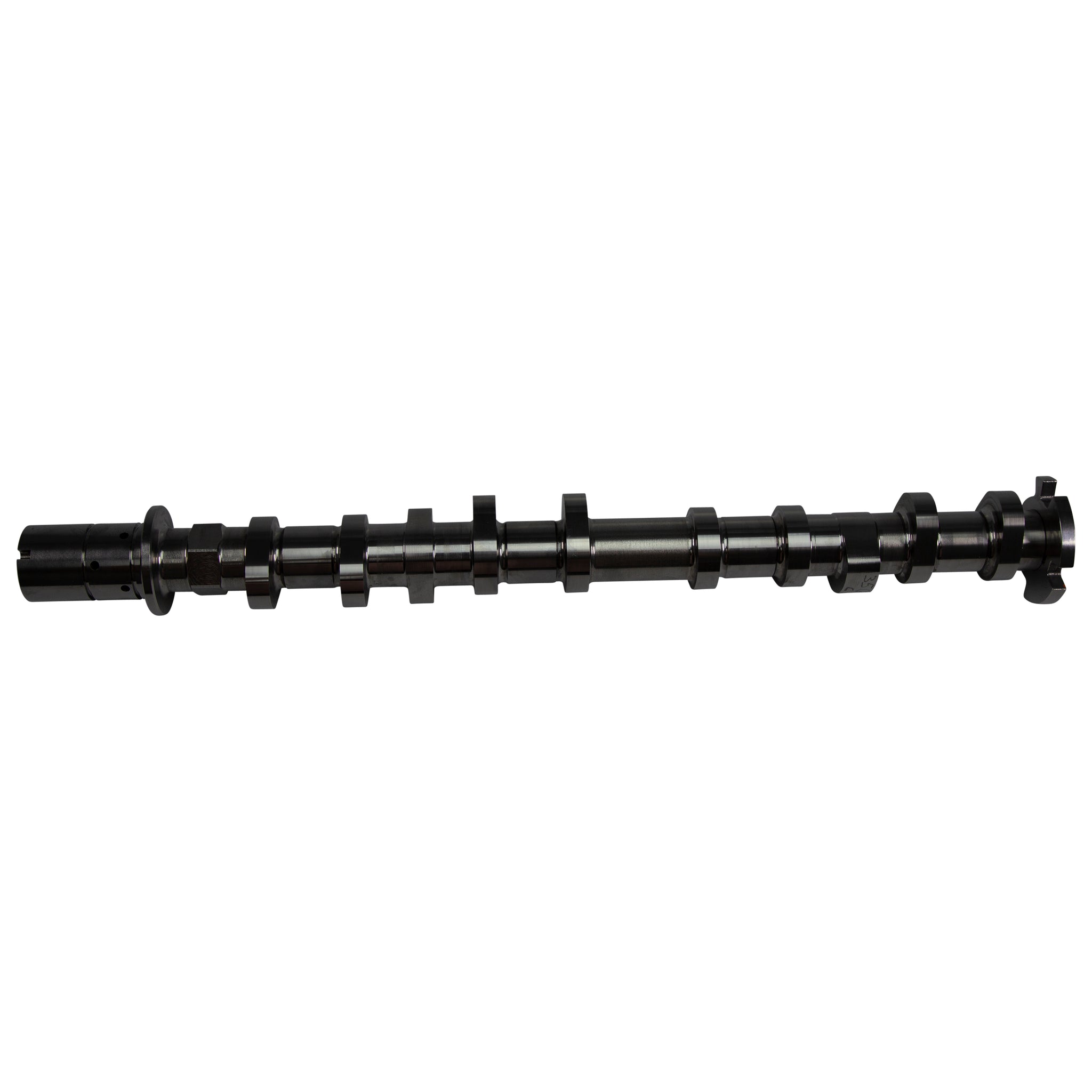

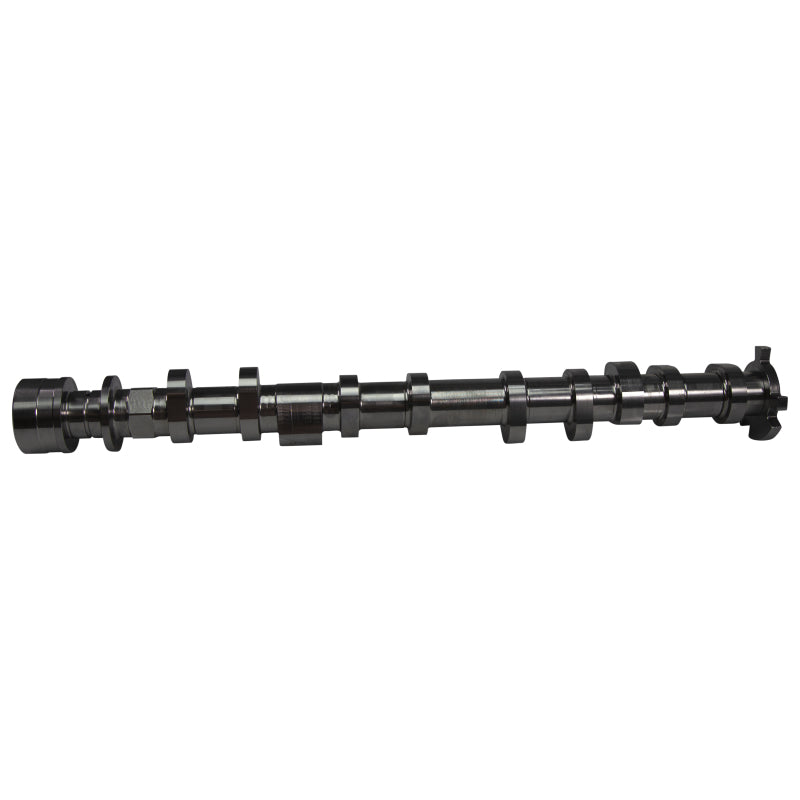

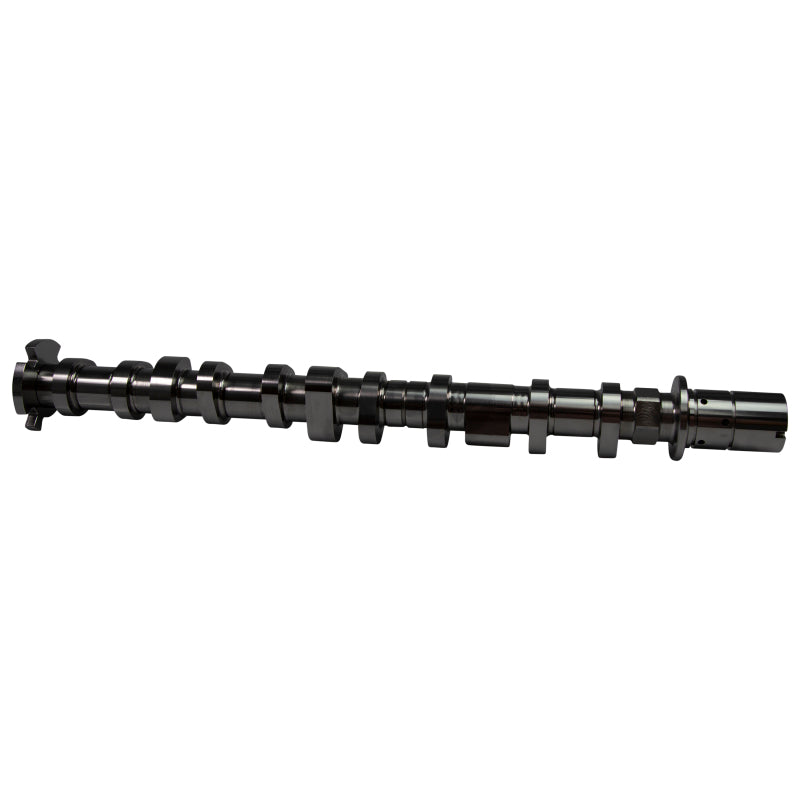

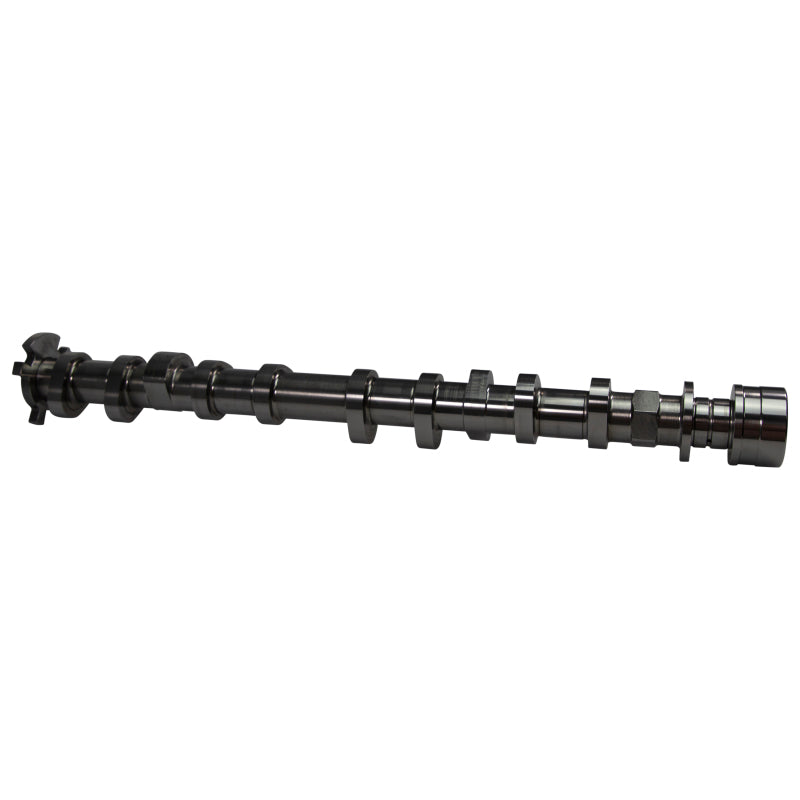

Blower and Turbo Stage 1 Camshaft Set for 2018+ Ford 5.0 Coyote

Application: 2018+ Ford 5.0L Coyote

Stage 1 Blower/Turbo Grind for 2018+ Ford Coyote engine. This design is optimized w/ higher lift for our #26001 valve spring, allowing more RPM & added exhaust for forced induction.

The Ford Coyote engine has proven itself as an awesome base for modifications since its debut in 2011, and COMP Cams now offers six different performance cam options that range from mild to wild for the newer direct Injection 2018+ Coyote engine. These brand new profiles, designed using data from GT350 race engines, are optimized for the 2018+ cylinder head geometry and flow, providing optimized power for any combination of modifications. The cams are designed to take advantage of the engine’s direct injection to not only make more horsepower, but to also maximize the fuel flow and power capability of the camshaft driven direct injection pump. In addition, these grinds are more stable at high RPM than the factory cam profiles while also producing more power across the entire RPM range.

  • Exhaust Valve Lift: 0.58 in.
  • Intake Valve Lift: 0.58 in.
  • Stage: 1
  • Lobe Separation: 126°
  • Basic Operating RPM Range: 2,000-7,900 RPM
  • Intake Duration at .050 Inch Lift: 232°
  • Exhaust Duration at .050 inch Lift: 238°
  • Advertised Intake Duration: 280°
  • Advertised Exhaust Duration: 294°
  • Individual Cam Pt #s included: 433-561-11LE, 433-562-11LI, 433-563-11RE, 433-564-11RI
  • Camshaft Material: Billet Steel
  • Cam Type: Hydraulic Roller Finger Follower
  • Valve Springs Required: Yes
  • ECU Tune Required?: Yes
