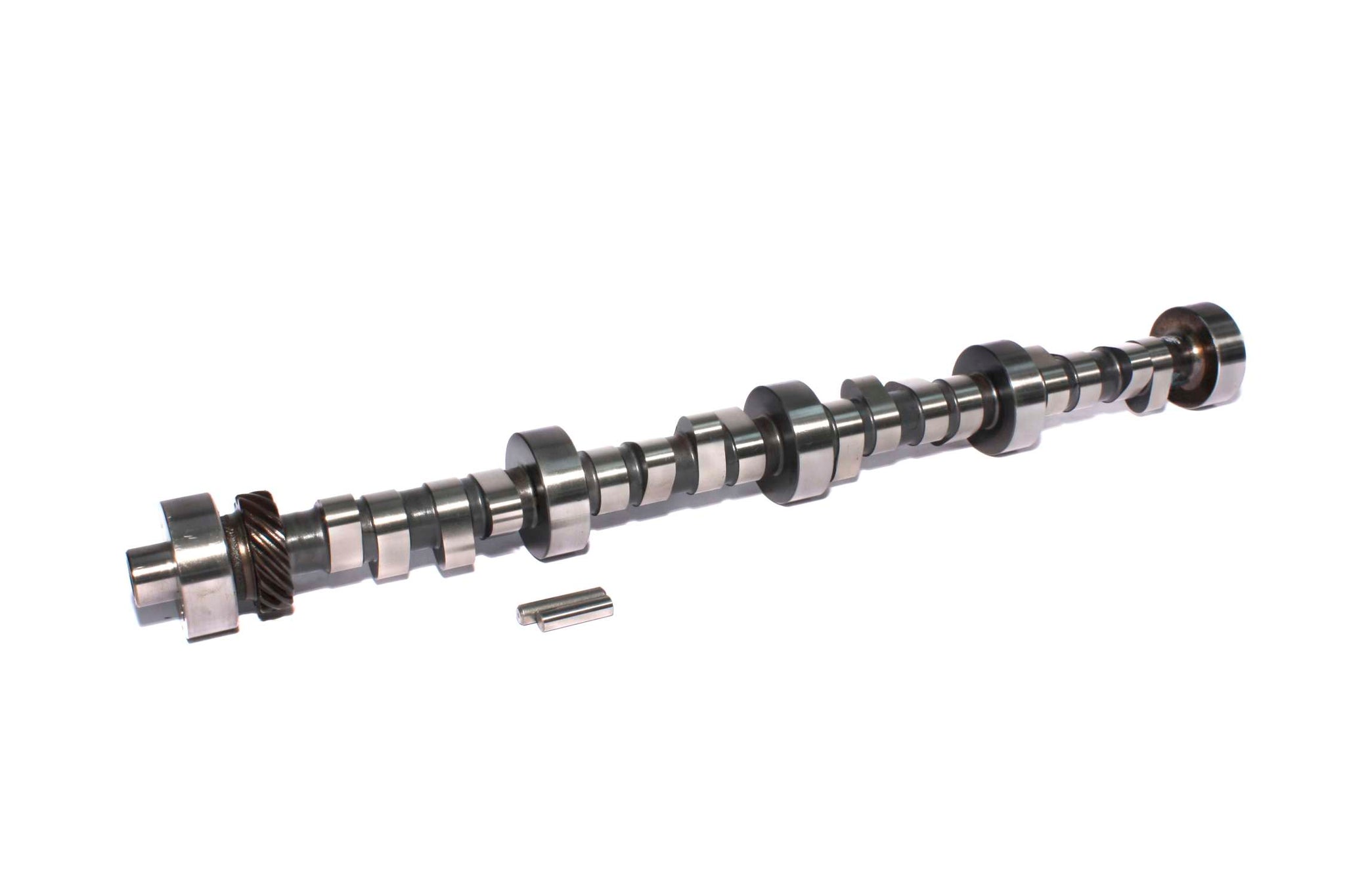

Xtreme Energy 230/236 Hydraulic Roller Cam for Ford 351W

Application: Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order

Great for street machines, needs intake, headers, 2500+ converter and 3.73+ gears, rough idle.

Xtreme Energy 230/236 Hydraulic Roller Cam

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

  • Excellent performance in street carbureted applications.
  • Best performance with aftermarket intake manifolds, headers, lower gear ratios etc.
  • Quicker opening lobe profiles deliver increased responsiveness and more area under the lift curve.
  • More vacuum allows an increase in duration for improved performance and assists power brakes.

  • Usage: Street/Performance
  • Intake Valve Lift: 0.513 in.
  • Exhaust Valve Lift: 0.529 in.
  • Camshaft Gear Attachment: 1-Bolt
  • Basic Operating RPM Range: 1,200-6,000 RPM
  • Lobe Separation: 110°
  • Advertised Intake Duration: 282°
  • Advertised Exhaust Duration: 289°
  • Camshaft Material: Austempered Ductile Iron
  • Engine Family: Ford 351W 8 Cylinder (1969-1996)
  • Grind Number: XR282RF-HR
  • Valve Springs Required: Yes
