COMP Cams Part # CCA34-255-5

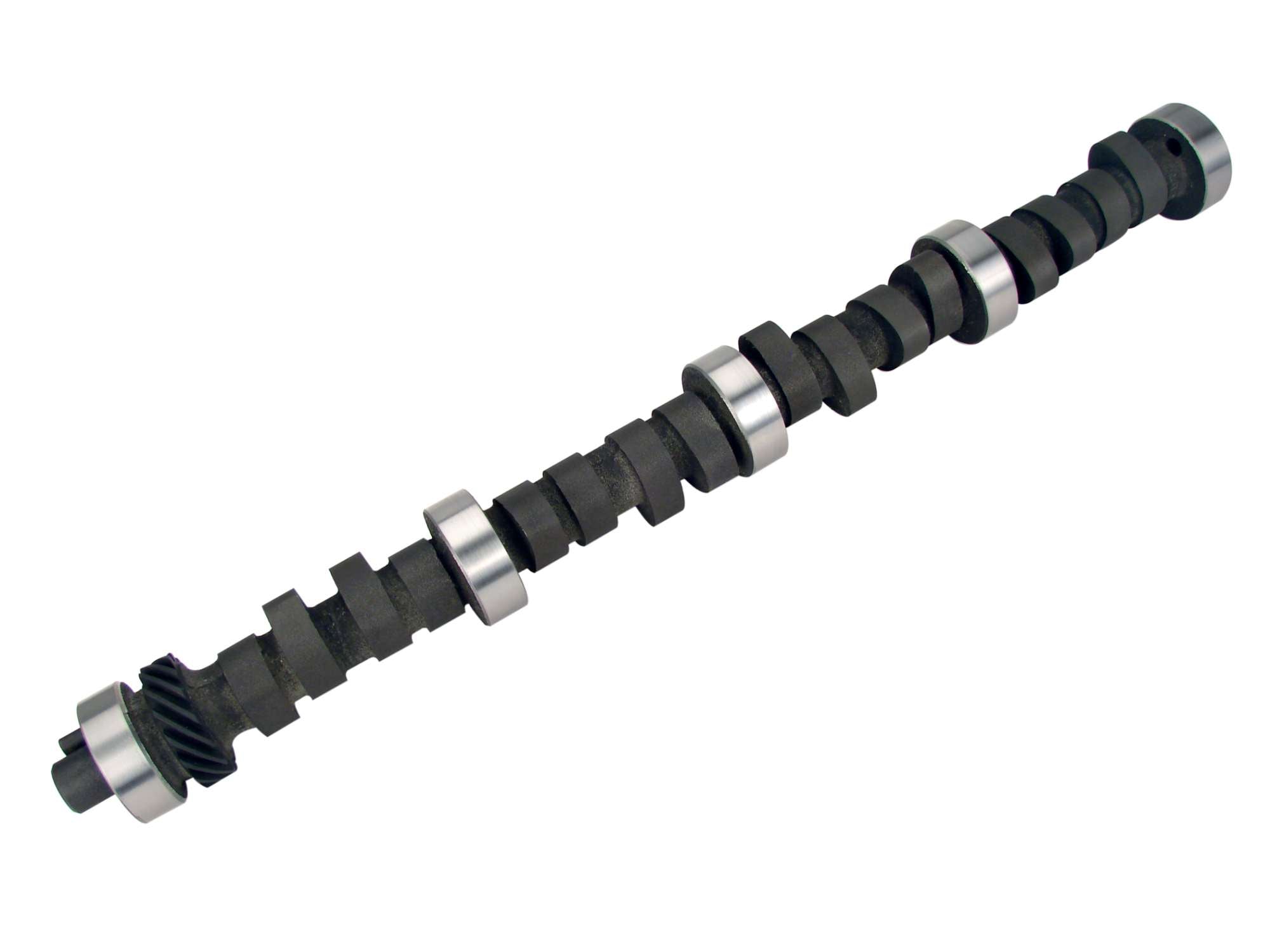

COMP Cams Camshaft FF XE256 H14 - 34-255-5

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Xtreme Energy Computer Controlled Hydraulic Flat Cam for Ford 429,460

Application: Fits Ford Big Block/385 Series 429 and 460

EFI speed density, works with stock computer. Very strong torque, excellent mileage, good idle quality.

Xtreme Energy Computer Controlled Hydraulic Flat Tappet Cam for Ford 429, 460. EFI Speed density. Works with stock computer. Very strong torque and excellent mileage with good idle quality.

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

  • Excellent performance in street carbureted applications.
  • Best performance with aftermarket intake manifolds, headers, lower gear ratios etc.
  • Quicker opening lobe profiles deliver increased responsiveness and more area under the lift curve.
  • More vacuum allows an increase in duration for improved performance and assists power brakes.

  • Usage: OEM
  • Intake Valve Lift: 0.49 in.
  • Exhaust Valve Lift: 0.495 in.
  • Camshaft Gear Attachment: 1-Bolt
  • Basic Operating RPM Range: 1,000-5,200 RPM
  • Lobe Separation: 114°
  • Intake Duration at .050 Inch Lift: 212°
  • Exhaust Duration at .050 inch Lift: 219°
  • Advertised Intake Duration: 256°
  • Advertised Exhaust Duration: 268°
  • Camshaft Material: Cast Iron
  • Engine Family: Ford 429, 460 c.i. 8 Cylinder (1968-1995)
  • Grind Number: XE256H-14
  • Valve Springs Required: Yes
  • Assembly Lubricant Included: Yes
