COMP Cams Part # CCA20-225-4

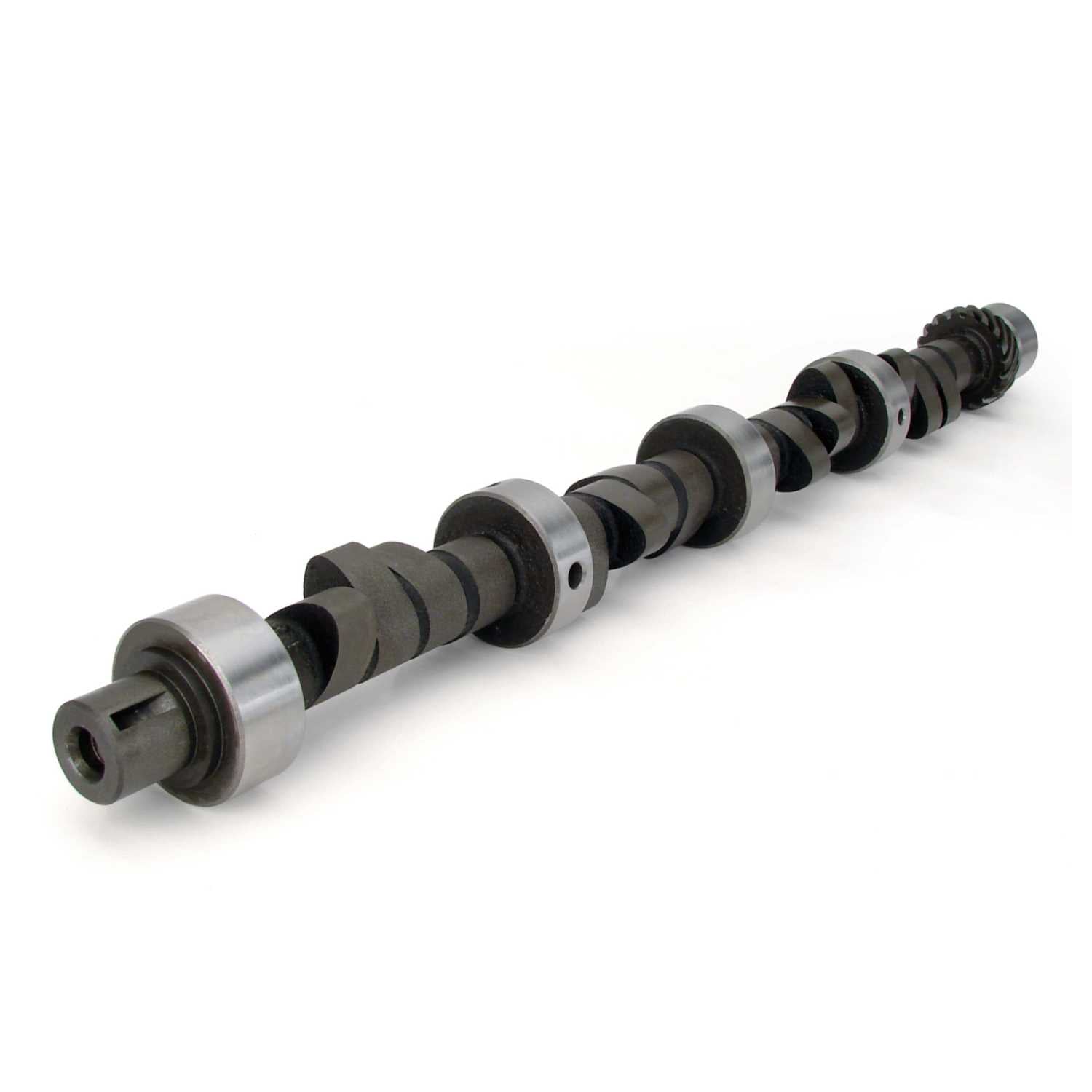

COMP Cams Camshaft CRS XE284H-10 - 20-225-4

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Xtreme Energy 240/246 Hydraulic Flat Cam for Chrysler 273-360

Application: Fits Chrysler 273, 318, 340 and 360 LA

Street/strip, needs 3000+ stall, headers, gears, rough idle.

Xtreme Energy 240/246 Hydraulic Flat Tappet Cam for Chrysler 273-360 street/strip Applications.

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

  • Excellent performance in street carbureted applications.
  • Best performance with aftermarket intake manifolds, headers, lower gear ratios etc.
  • Quicker opening lobe profiles deliver increased responsiveness and more area under the lift curve.
  • More vacuum allows an increase in duration for improved performance and assists power brakes.

  • Usage: Street/Performance
  • Intake Valve Lift: 0.507 in.
  • Exhaust Valve Lift: 0.51 in.
  • Camshaft Gear Attachment: 1-Bolt
  • Lobe Separation: 110°
  • Basic Operating RPM Range: 2,300-6,500 RPM
  • Advertised Intake Duration: 284°
  • Advertised Exhaust Duration: 296°
  • Camshaft Material: Cast Iron
  • Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
  • Grind Number: XE284H
  • Valve Springs Required: Yes
  • Assembly Lubricant Included: Yes
