SKU: SKU: CCA4925CPG

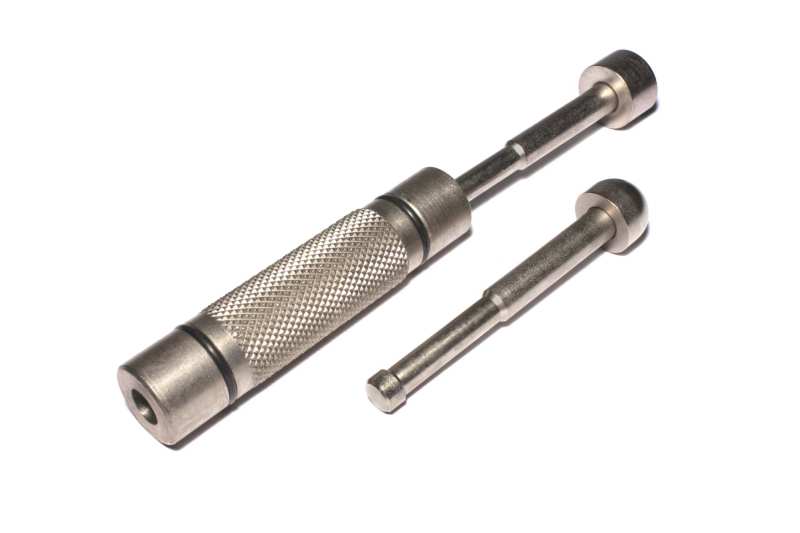

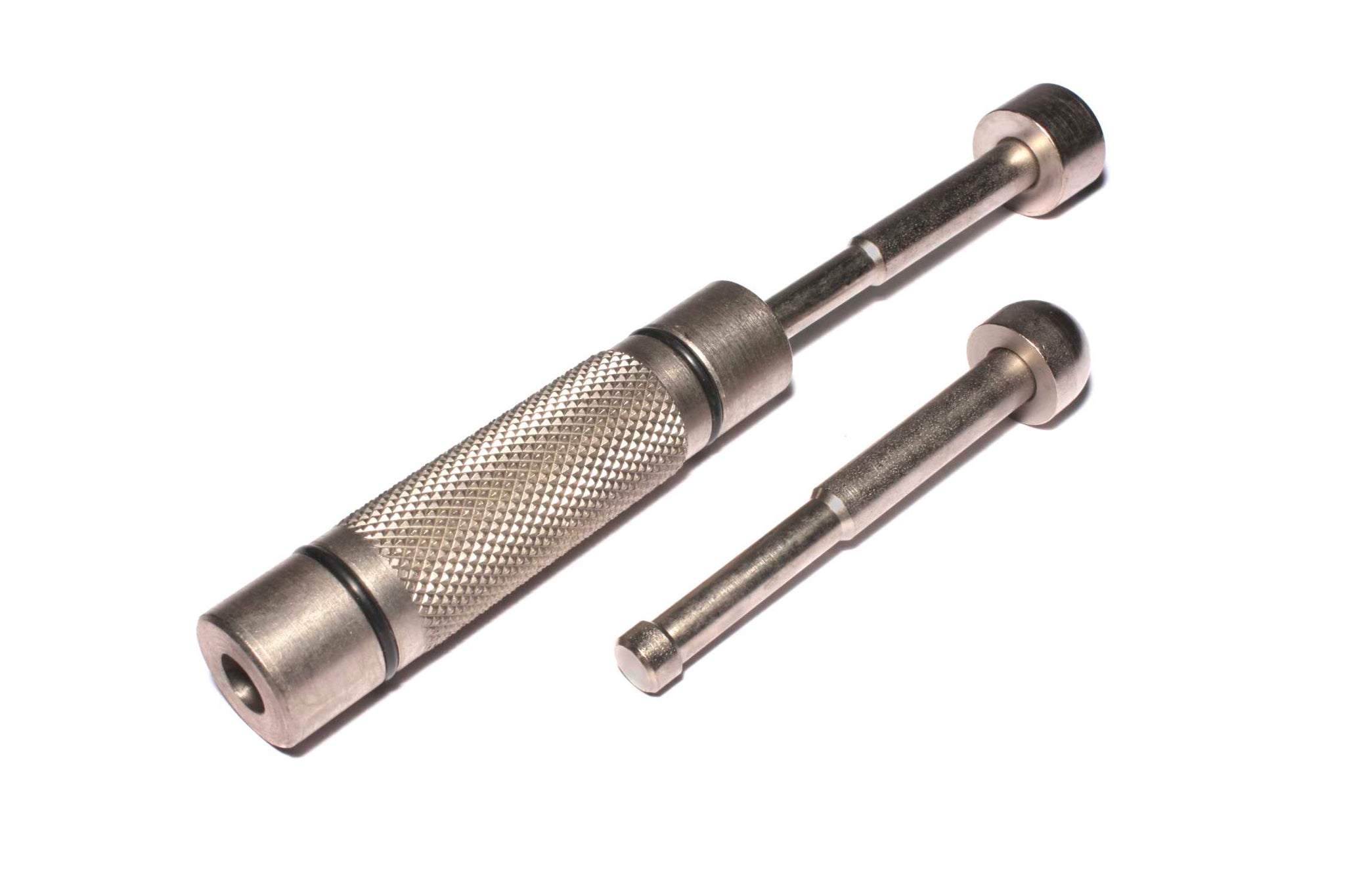

GM and Ford Cam Checking Tool
The COMP camhaft checking tool is designed to slide into the lifter bore and ride on the cam lobe. A dial indicator is then attached to the checking tool so that lobe lift and base circle runout can be measured. Fits .842" and .875" bores.
This innovative tool slides into the lifter bore and rides on the Camshaft to measure lobe lift and base circle runout. The tool includes two followers: one for Solid and hydraulic flat tappet cams and one for Roller cams. Built-in o-ring holds tool firmly in the lifter bore while a 1" travel dial indicator (not included) reads Cam lift to .001". Fits GM (.842" dia.) and Ford (.875" dia.) lifter bores.
This innovative tool actually slides down into the lifter bore and rides on top of the camshaft in order to measure lobe lift and base circle runout. Each tool includes two followers: one for flat tappet cams and one for rollers. Two models are available, and each is double ended.
This innovative tool actually slides down into the lifter bore and rides on top of the camshaft in order to measure lobe lift and base circle runout. Each tool includes two followers: one for flat tappet cams and one for rollers. Two models are available, and each is double ended.
