COMP Cams Part # CCA26906VCS-KIT

COMP Cams .510in Lift Beehive Valve Spring Kit For GM Vortec Hydraulic Flat Tappets - 26906VCS-KIT

Before you order

Customers also viewed

4.8 on Google967 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter

SPRING KIT, GM L31 VORTEC CYLINDER HEAD, .510" MAX LIFT, FLAT TAPPET

Application: GM Vortec L31 Cylinder Heads

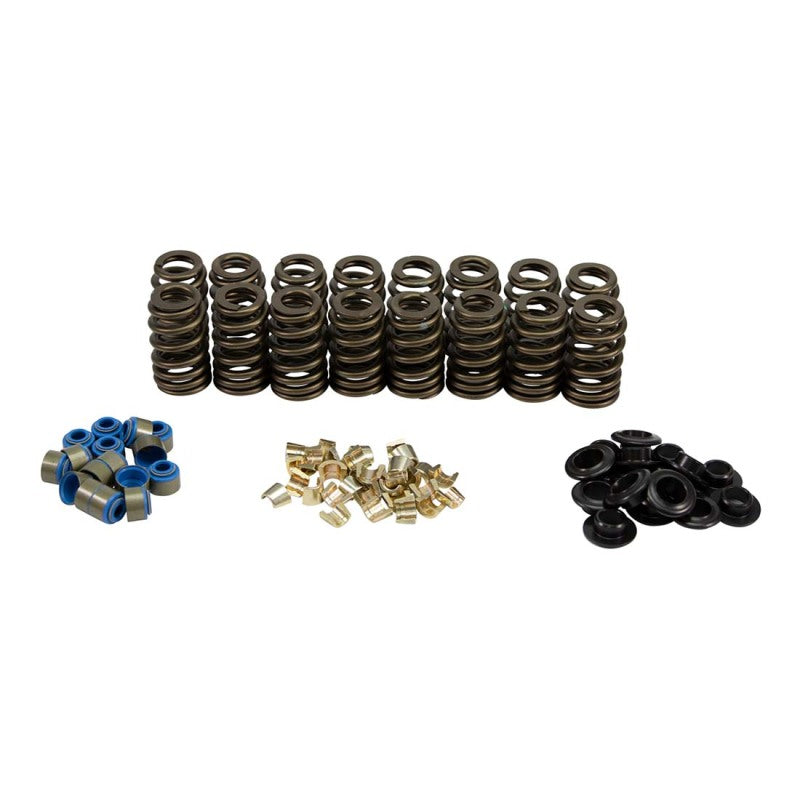

Complete .510" max lift, drop-in valve spring kit for GM L31 Vortec Cylinder Heads

This COMP Cams Valve Spring Kit is designed to maximize the potential of GM L31 Vortec cylinder heads when using a flat tappet camshaft. This kit allows up to .510" lift and provides spring rates that can handle significantly more aggressive lobe profiles. This kit has been developed to make your valve train upgrade as easy as possible by combining quality components in a package that does not require any machining! These components will drop right onto stock GM L31 Vortec cylinder heads.

  • Drop-in valve spring kit for GM L31 Vortec cylinder heads
  • No machining required
  • Includes metal body
  • Viton valve stem seals
  • .510" max lift

  • Recommended Max Lift (in): 0.51 in.
  • Outside Diameter of Outer Spring (in): 1.087/1.292 in.
  • Inside Diameter of Outer Spring (in): .645/.850 in.
  • Spring Rate (lbs/in): 386
  • Load at Open Height (lbs): 304
  • Open Height (in): 1.25 in.
  • Valve Spring Style: Beehive
  • Number of Springs Per Valve: 1
  • Coil Bind Height: 1.18 in.
  • Maximum Coil Bind Height (in): 1.18 in.
  • Lock Style: 10 Degree
  • Valve Stem Diameter (in): 11/32 in.
  • Open Pressure: 304 lb
  • Retainer Material: Chromoly
  • Spring Type: Dual Spring
  • Valve Stem Seal Type: Positive Stop
  • Valve Spring Finish: Raw
