COMP Cams 1in Dial Indicator - 4909CPG

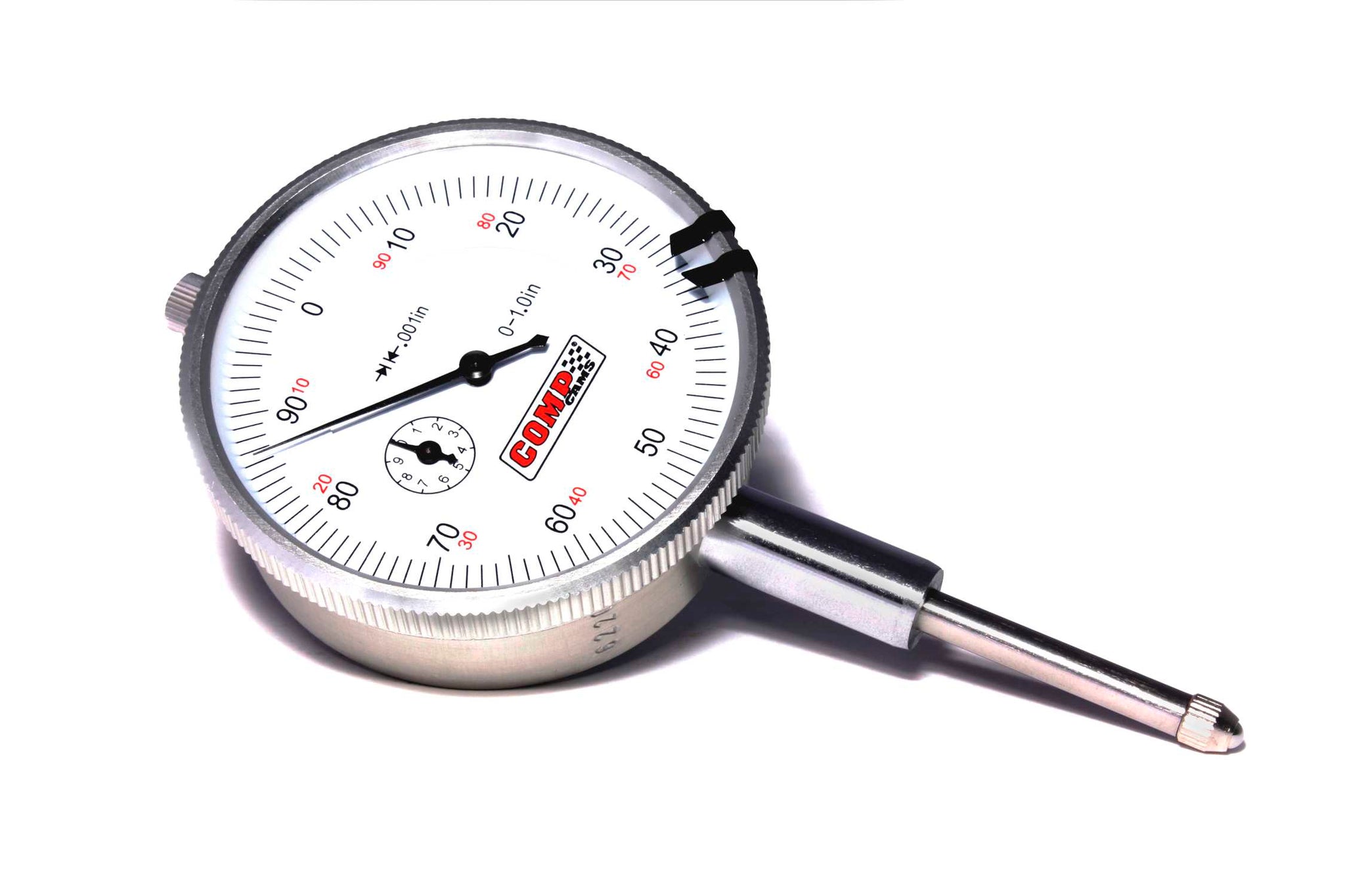

Dial Indicator - 0-1" Total Travel

Compatibile with all COMP tools that require a dial indicator, our 0 to 1.00" travel dial indicator features a lug back, 3/8" shaft, 0-100 face and a revolution counter. We offer tip extensions for accessing difficult to reach areas.

This innovation tool actually slides down into the lifter bore and rides on top of the Camshaft in order to measure lobe lift and base circle runout. Each tool includes two followers: one for Solid or hydraulic cams and one for Rollers. Two models are available and each is double ended. Built-in o-ring Oldsmobile tool firmly in the lifter bore while 1" travel dial indicator (not included) reads Cam lift to .001" Two models available one for GM (.842" dia.) and Ford (.875" dia.) and another for Chrysler (.904" dia.) and Top Fuel (1.0" dia.) lifter bores.

• Feature include lug back, 3/8" shaft, 0-100 dial face and
• 0-1" Travel by .001" jeweled dial indicator is compatible with all COMP products that require the use of a dial indicator
• Two length extensions available
• Feature include lug back, 3/8" shaft, 0-100 dial face and
• 0-1" Travel by .001" jeweled dial indicator is compatible with all COMP products that require the use of a dial indicator
• Two length extensions available
