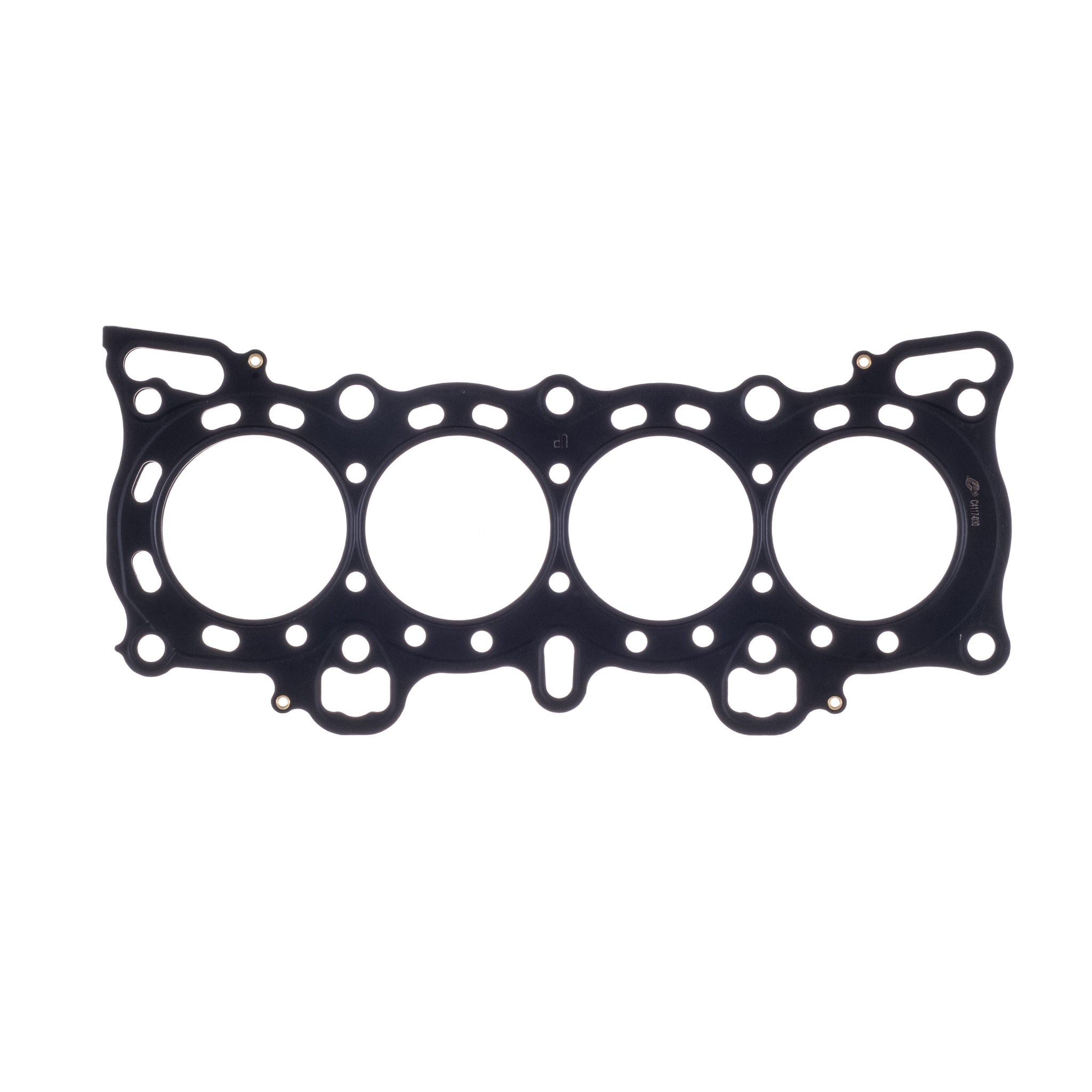

The Cometic Honda D15B1-2-7/D16A6-7 75.5mm .030 inch MLS SOHC ZC Head Gasket - C4117-030 is a precision-engineered head gasket with a 75.5mm bore and .030" compressed thickness.
The Cometic Multi-Layer Steel (MLS) head gasket is engineered for high-performance and racing applications where OEM gaskets fall short. Featuring Multi-Layer Steel (MLS) construction, this gasket uses multiple embossed steel layers that conform to surface irregularities and maintain a positive seal. Precision CNC-machined to exacting tolerances, this gasket seals combustion, water jackets, and oil passages simultaneously — eliminating the need for multiple gaskets or sealing compounds.
-
Material: Multi-Layer Steel (MLS)
-
Bore Size: 75.5mm
-
Thickness: .030" compressed
-
Part Number: C4117-030
Verified fitment: Honda CRX (1988–1991); Honda Civic (1988–1995); Honda Civic del Sol (1993–1995).
