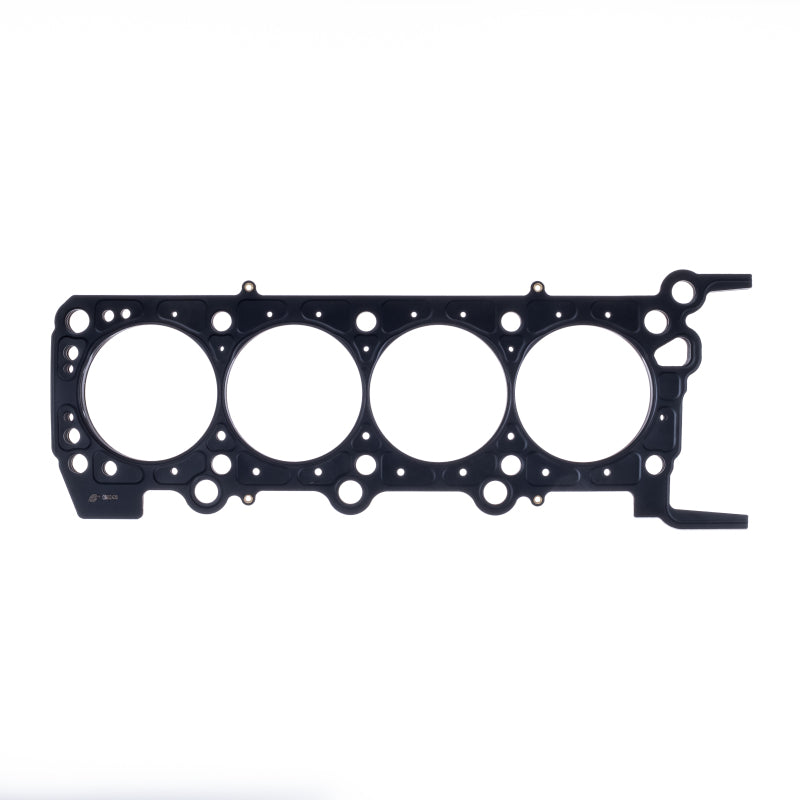

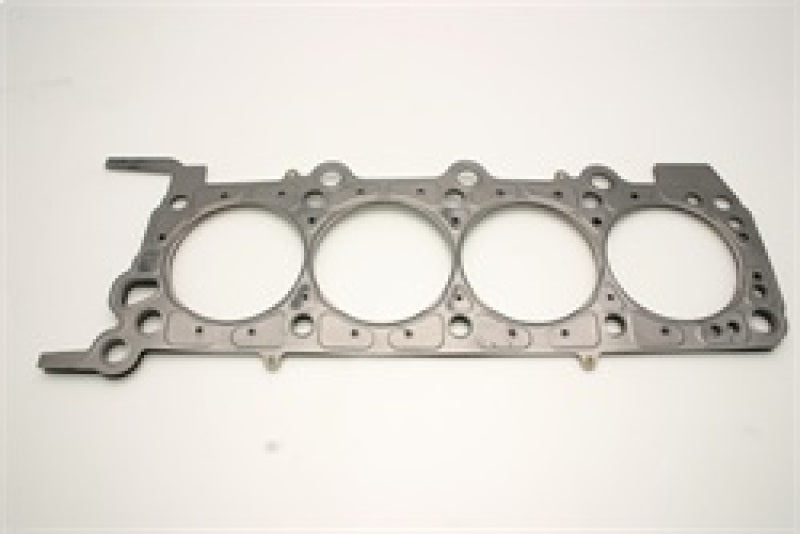

The Cometic Ford 4.6L V-8 Left Side 94MM .120 inch MLS Head Gasket - C5502-120 is a precision-engineered head gasket with a 94mm bore and .120" compressed thickness for the Left-Hand Side (LHS).

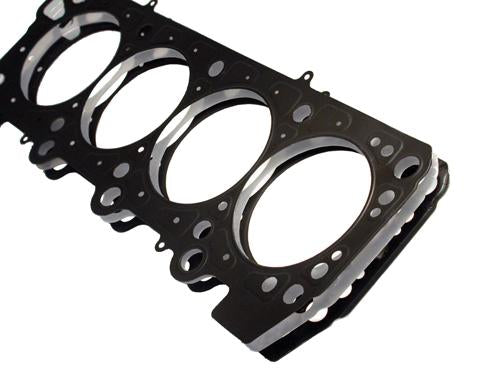

The Cometic Multi-Layer Steel (MLS) head gasket is engineered for high-performance and racing applications where OEM gaskets fall short. Featuring Multi-Layer Steel (MLS) construction, this gasket uses multiple embossed steel layers that conform to surface irregularities and maintain a positive seal. Precision CNC-machined to exacting tolerances, this gasket seals combustion, water jackets, and oil passages simultaneously — eliminating the need for multiple gaskets or sealing compounds.
-
Material: Multi-Layer Steel (MLS)
-
Bore Size: 94mm
-
Thickness: .120" compressed
-
Position: Left-Hand Side (LHS)
-
Part Number: C5502-120
Verified fitment: Ford Crown Victoria (1992–2011); Ford E 150 (1997–2008); Ford E 250 (1997–2008); Ford E 350 (1997–2008); Ford Excursion (2000–2005); Ford Expedition (1997–2004); Ford Explorer (2002–2005); Ford F 150 (1997–2010); and 9 more.
