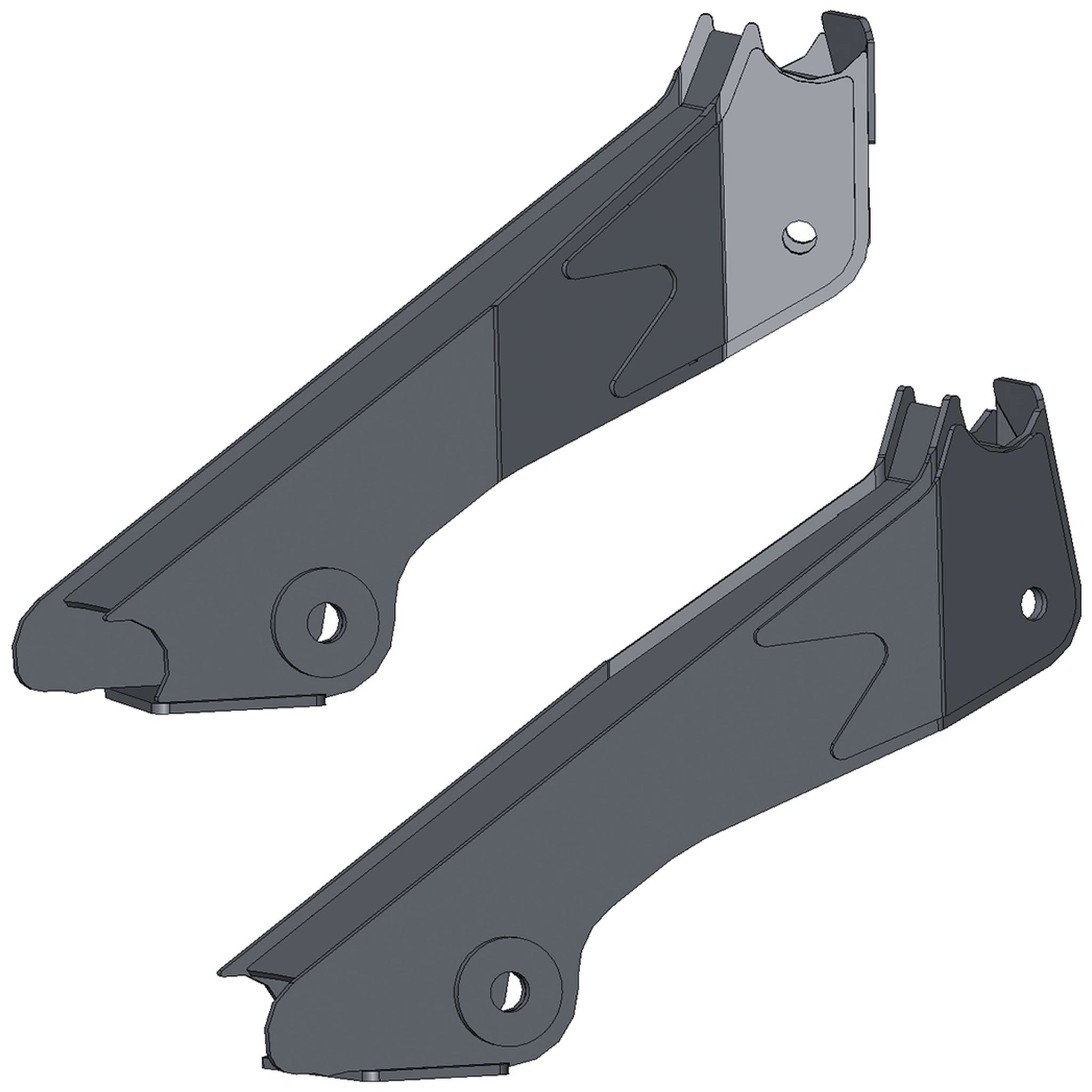

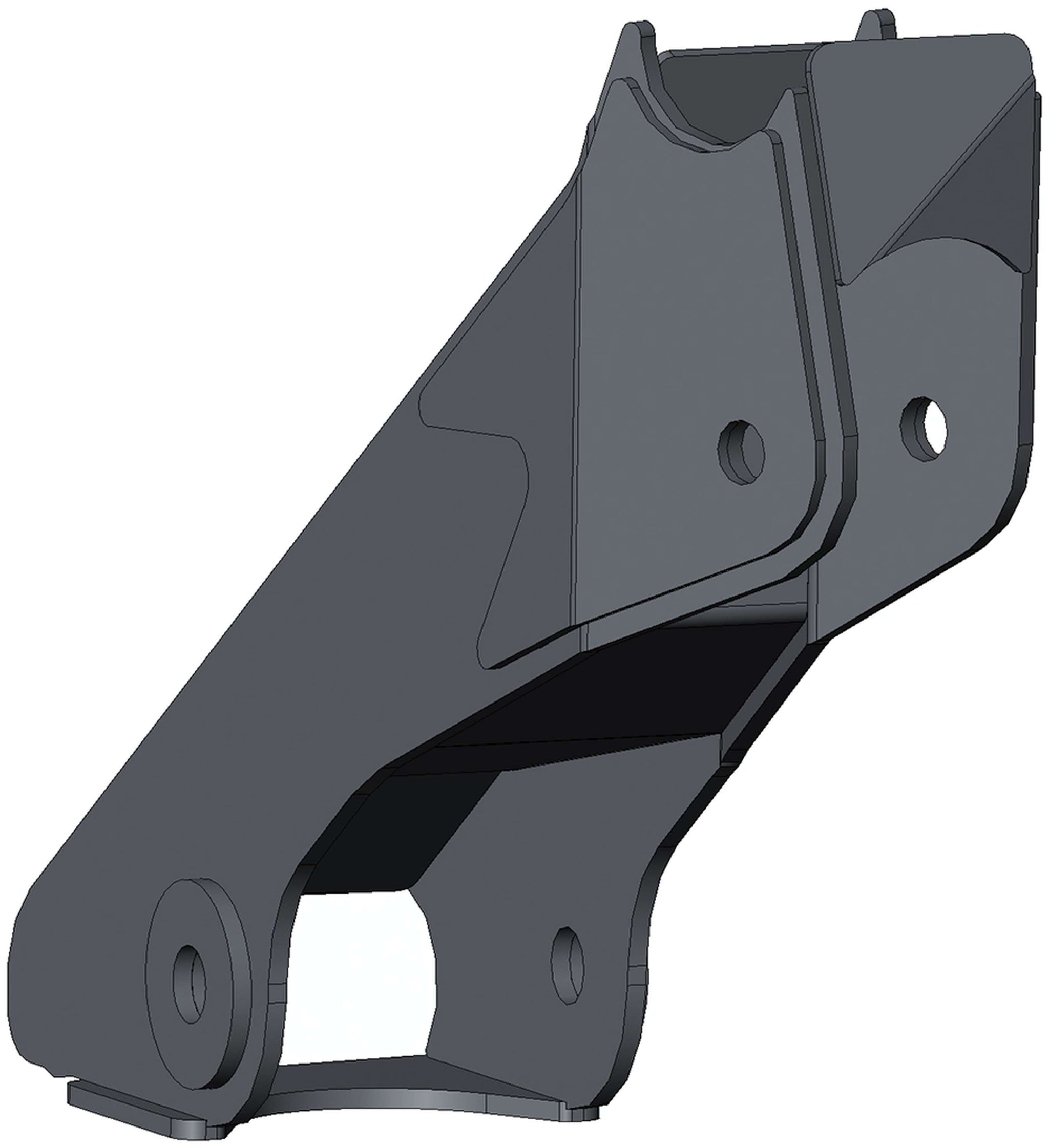

Camburg KINETIK Rear Chassis Upper & Lower Link Mounts (MIG Welded) - CAM-520003

Building a pre-runner or race truck from the ground up or looking to upgrade your existing truck? Our KINETIK rear chassis lower and upper link mounts take the headache out of designing the rear suspension. We designed this based around our proven TT/6100 chassis and geometry and gives you a great starting point to build from or easily graft into an existing tube chassis or frame rails. By MIG welding these we’re able to bring the cost down and offer something a little more affordable without compromising quality. The upper mounts are designed for 1-1/4? heims (JMX-16T) using 5/8? bolts and the lowers mounts for 1? uniballs (AIN-16T) using a 3/4? bolts. You can use these with our 48?, 55? or 60? lower links depending on the wheelbase and shock locations you’re looking for. We use 3/16? and 1/8? 4130 chromoly to build these with overlay plates at the pivot points for added strength/thickness.
