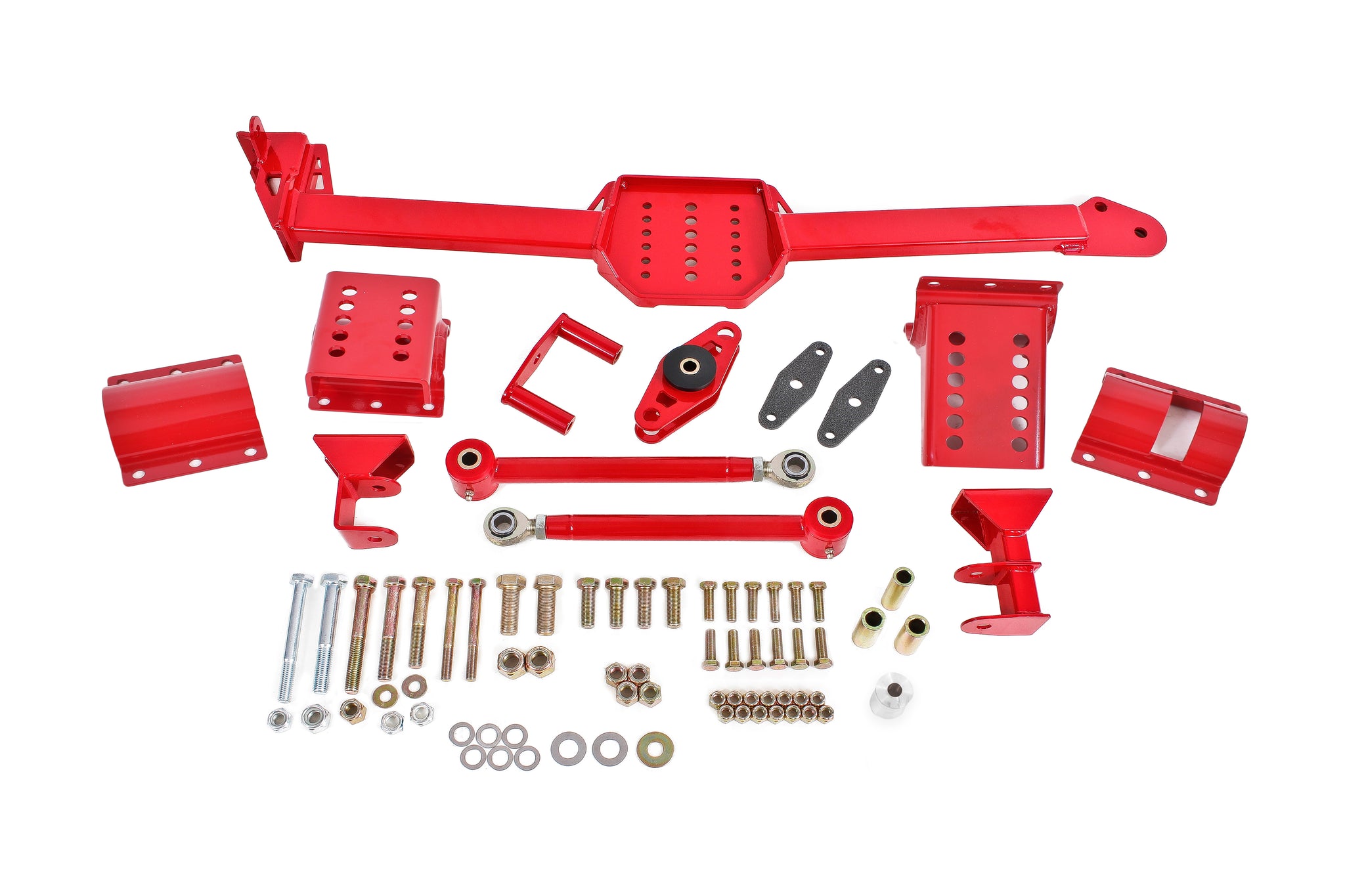

BMR 05-14 S197 Mustang Body Mount Watts Link Rod End/Poly w/ Adj. Axle Clamps - Red - WL005R

Add the ultimate lateral differential location device to your 2005-2014 Mustang and 2007-2014 Shelby GT500 with a Body-Mounted Watts Link from BMR's suspension! A Watts link locates the rearend housing and eliminates lateral axle movement by keeping the differential perfectly centered under the car through the suspensions entire range of motion. BMRs Watts Link (WL005) will hold up to the most extreme conditions and is designed for street performance and handling applications. When performance is a must, rely on BMR's suspension!

Features

• Manufactured from 1x2-inch, 0.120-inch rectangular steel tubing and 0.25-inch laser-cut steel plate
• Heavy-duty, zinc-plated, chromoly, self-lubricating, Teflon-lined rod ends
• 95-durometer, greaseable polyurethane bushings
• Greaseable Delrin center bushing
• Fabricated center pivot
• 100% bolt-on design
• Double shear construction
• Double-adjustable links for fine-tuning and bind-free suspension articulation
• 6 roll center adjustments
• Compatible with stock or BMR's SB042 sway bar
• Eliminates lateral axle movement
• Significantly improves handling
• Available in red or black hammertone powder coat for long lasting good looks
• 3-4 hour installation time
• Proudly designed in the USA!
• Proudly made in the USA!

📄 WL005.pdf (Installation Guide)
