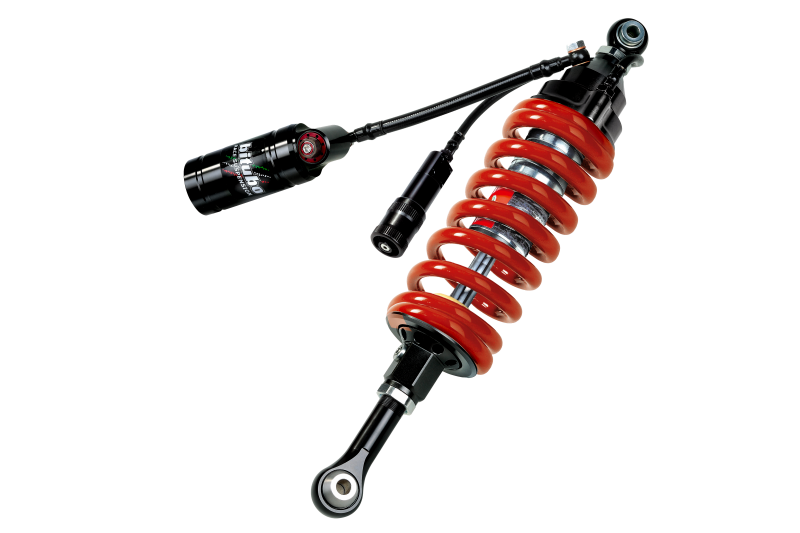

Bitubo CLU3 Monoshock Adjustable: Hydraulic Spring Preload, Reb., Double Comp., Length, Red Spring - K0097CLU31

STATE-OF-THE-ART TECHNOLOGY AND PERFORMANCE thanks to the innovations introduced by our products. The enthusiasm and great care taken by our R&D technicians enable us to propose this new evolved shock absorber that offers state-of-art technology and performance.

The “31” code identifies the red spring (for the most sportive models), while the “32” code specifies the black spring (for the most classic models).

The spring adjustment is controlled by the hydraulic preload, which can be operated manually or with a 14mm hexagonal key.

Applied to all shocks absorbers for BMW, which have hydraulic preload. This handgrip has an ergonomic design with three lobes that make adjustment easier without the need of any uncomfortable tools. Available as spare part, it can be applied into all hydraulic preload mono shocks XXF-CLU-CYU and XZE series produced since 2009.

The compensation tank is separated from the body for better fluid cooling and more freedom in the mounting position. It is connected by a flexible hose, braided for very high pressure to improve the shock feedback and to increase the grip and comfort.

TECHNICAL FEATURES

Nitrogen pressurised, with oil/gas floating piston in the compensation chamber. Ø16mm piston rod with anti-friction treatment and low friction bushing. Upper and lower head attachements made in aeronautical aluminium alloy, on precision CNC machines.

ADJUSTABLE IN:

INCLUDED IN THE PACK:Specific assembly instruction, suspension manual.

POSSIBILE ACCESSORIES:Ergal hand-wheel for preload adjuster

MODEL AVAILABLE FOR: Aprilia, Cagiva, BMW, Honda, Kawasaki, Suzuki, Triumph, Yamaha
