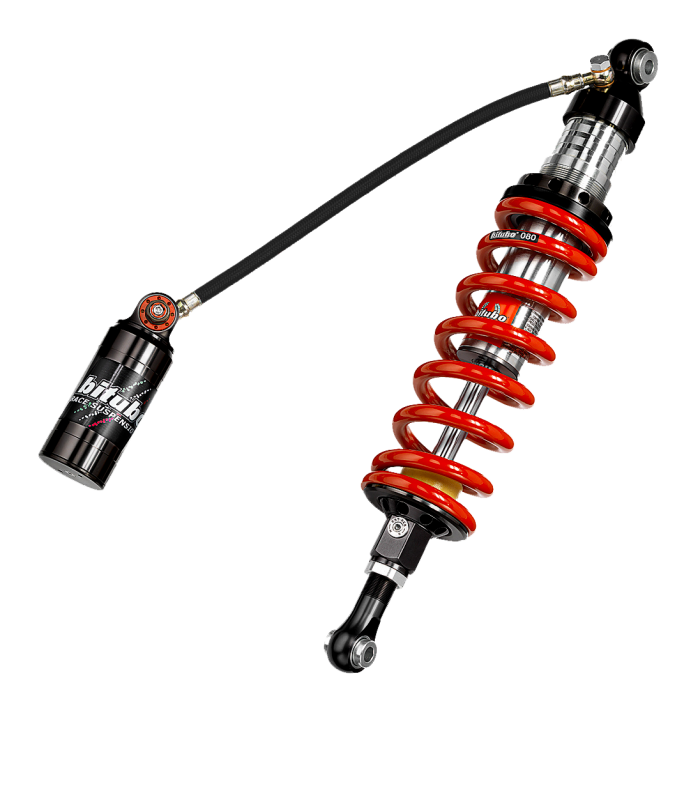

Bitubo CLU1 Monoshock Adjustable: Spring Preload, Rebound, Double Compression, Length, Red Spring - KT007CLU11

STATE-OF-THE-ART TECHNOLOGY AND PERFORMANCE thanks to the innovations introduced by our products. The enthusiasm and great care taken by our R&D technicians enable us to propose this new evolved shock absorber that offers state-of-art technology and performance.

The “11” code identifies the red spring (for the most sportive models), while the “12” code specifies the black spring (for the most classic models).

The compensation tank is separated from the body for better fluid cooling and more freedom in the mounting position. It is connected by a flexible hose, braided for very high pressure to improve the shock feedback and to increase the grip and comfort.



TECHNICAL FEATURES
Nitrogen pressurised, with oil/gas floating piston in the compensation chamber. Ø16mm piston rod with anti-friction treatment and low friction bushing. Upper and lower head attachments made in aeronautical aluminium alloy, on precision CNC machines.

ADJUSTABLE IN:

• Low speed compression 24 clicks
• High speed compression 20 clicks
• Rebound 24 clicks
• Spring preload Stepless
• Length 8mm

INCLUDED IN THE PACK:Specific assembly instruction, suspension manual, tool for preload adjuster.

MODEL AVAILABLE FOR: Aprilia, Cagiva, Ducati, Honda, Kawasaki, KTM, Suzuki, Triumph, Yamaha
