Bilstein Part # BILAK7110SB

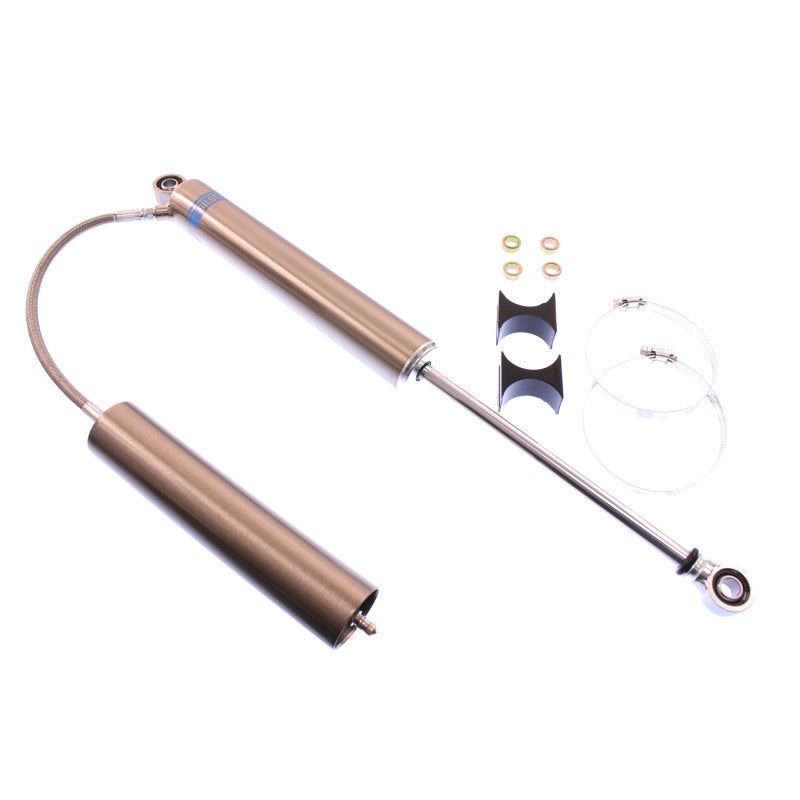

Bilstein Motorsport RSVR.SHOCK 8in. 10in. SFT 255/70 46mm Monotube Shock Absorber - AK7110SB

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

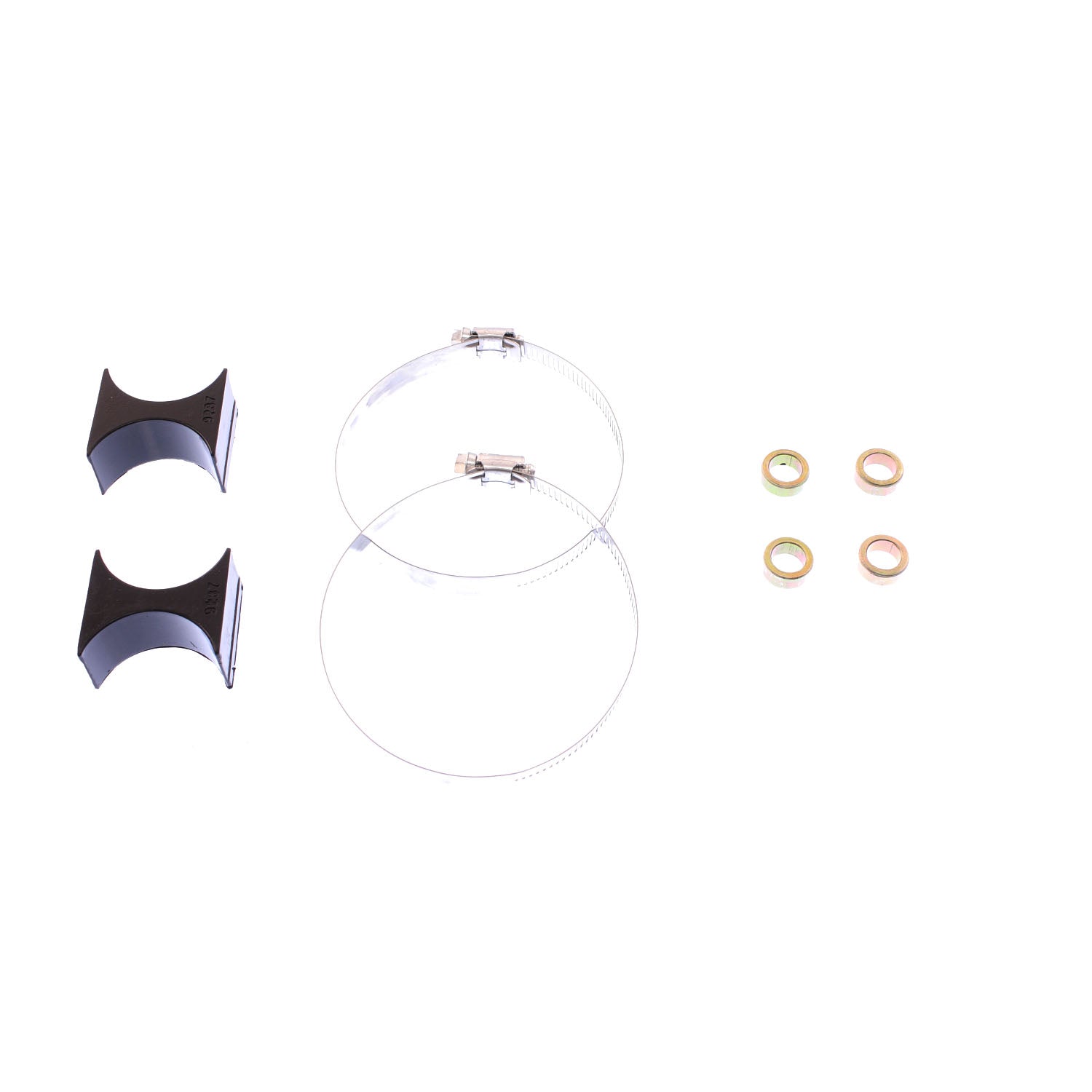

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
  • High-flow piston reduces harshness

  • Body Design: Smooth Body (Non-Coilover)
  • Compression @0.52m/S: 700
  • Upper Mount Type: 1/2in Heim
  • Reservoir: Yes
  • Mount Type: Eye-to-Eye
  • Finish: Nickel Plated with Clear Powder Coat
  • Extended Length (in): 24.31
  • Internal Design: Monotube
  • Collapsed Length (in): 14.29
  • Rebound @0.52m/S: 2550
  • Spring Seat Included: No
  • Piston Diameter: 46mm
  • Collapsed Length (mm): 363.0
  • Stroke/Travel Length (in): 10.02
  • Shaft Diameter (mm): 14.0
  • Stroke/Travel Length (mm): 254.5
  • Lower Mount Type: 1/2in Heim
  • Series: M 7100
  • Extended Length (mm): 617.5

Application

  • No Applications
