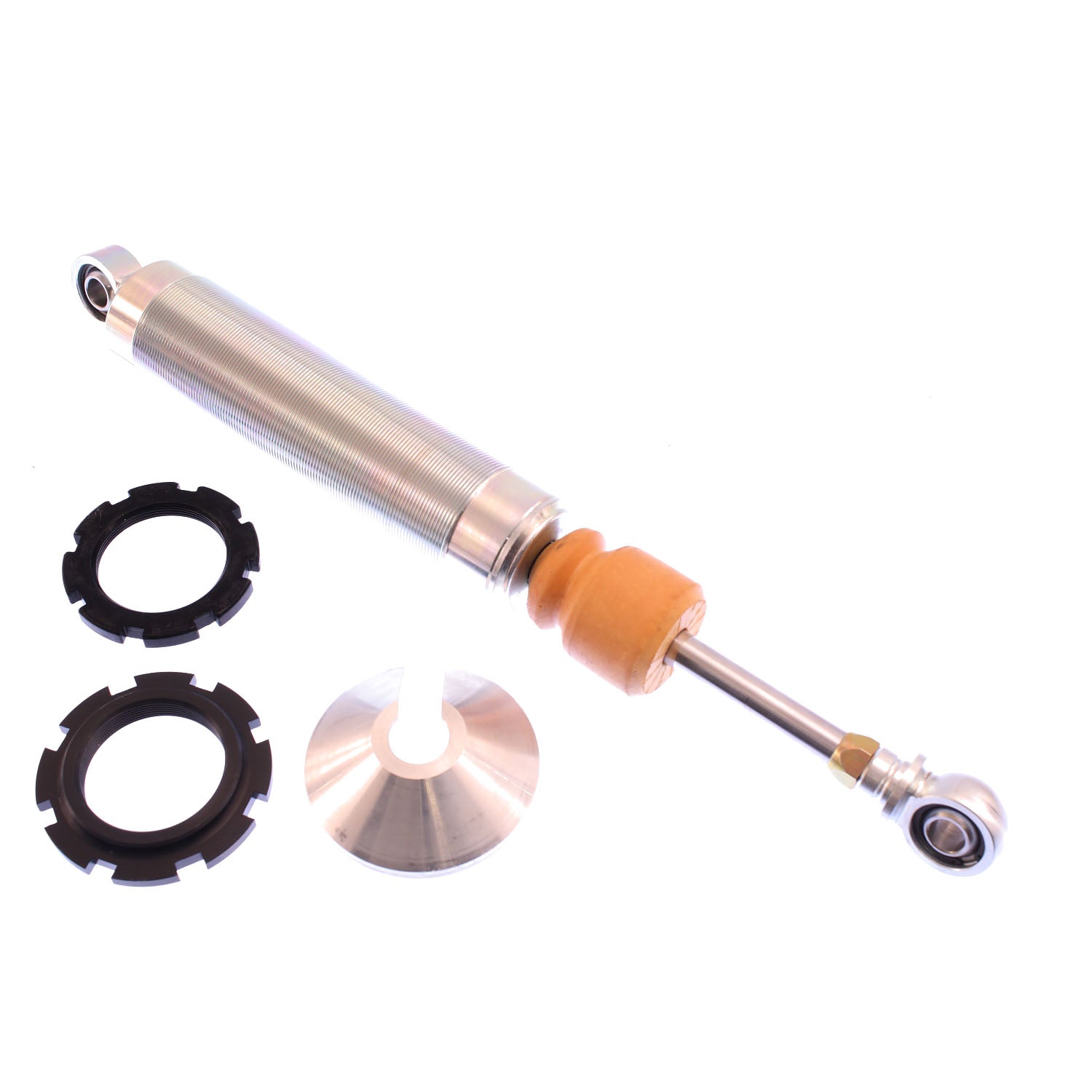

Bilstein Motorsport 8in. Mini Magnum Rear CUSTOM 46mm Monotube Shock Absorber - B46-0206W

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications in a wide variety of lengths
• Self-adjusting deflective disc valving

Specifications

• Collapsed Length (mm): 355.6
• Series: M 7100 Classic (Coilover)
• Upper Mount Type: 1/2in Heim
• Rebound @0.52m/S: Custom
• Internal Design: Monotube
• Extended Length (mm): 565.2
• Compression @0.52m/S: Custom
• Lower Mount Type: 1/2in Heim
• Extended Length (in): 22.25
• Mount Type: Eye-to-Eye
• Finish: Zinc Plated
• Body Design: Threaded Body (Coilover)
• Reservoir: No

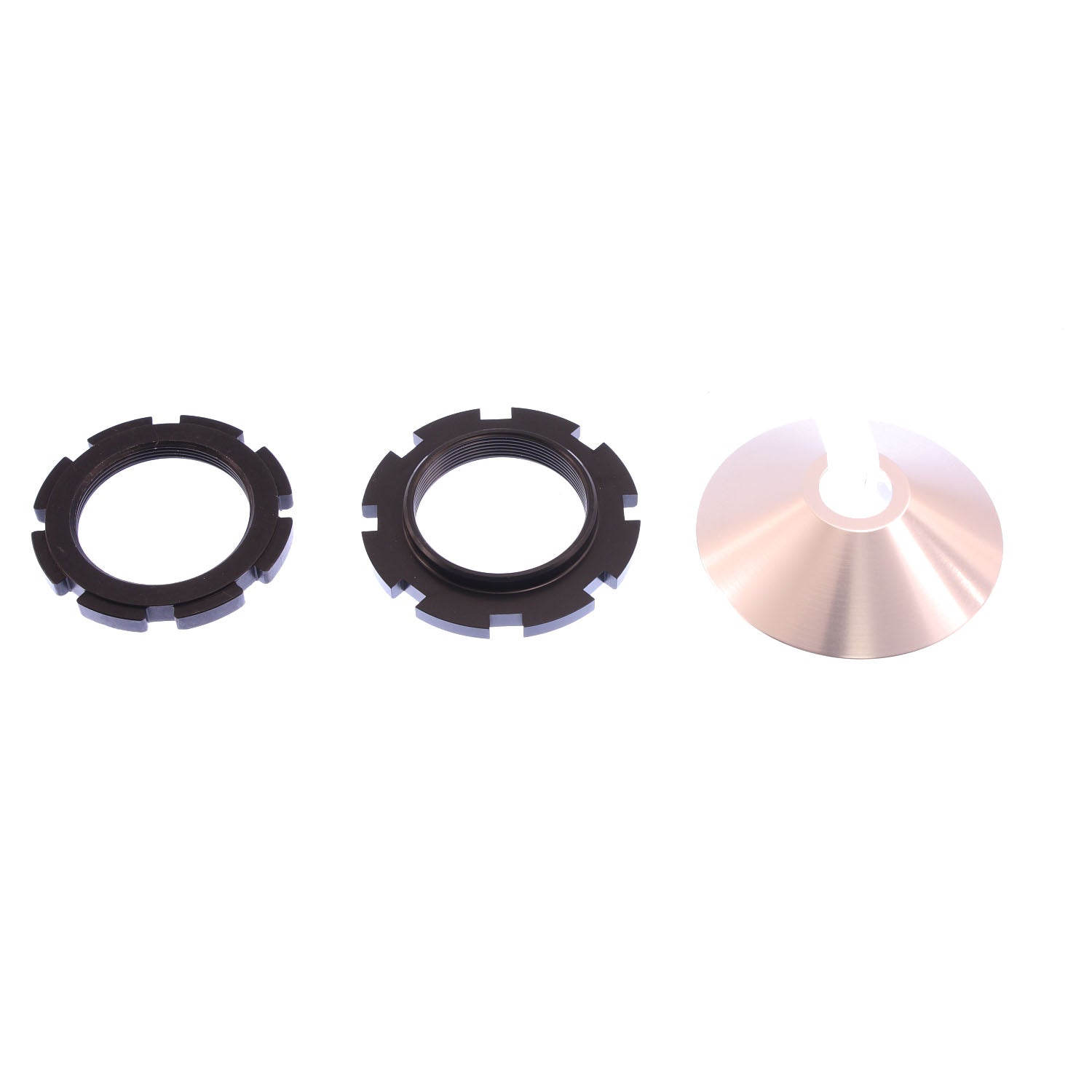

• Spring Seat Included: Yes
• Spring Hardware: Single Rate (2.5in)
• Collapsed Length (in): 14.00
• Piston Diameter: 46mm
• Shaft Diameter (mm): 14.0
• Stroke/Travel Length (mm): 209.6
• Stroke/Travel Length (in): 8.25

Application

• No Applications
