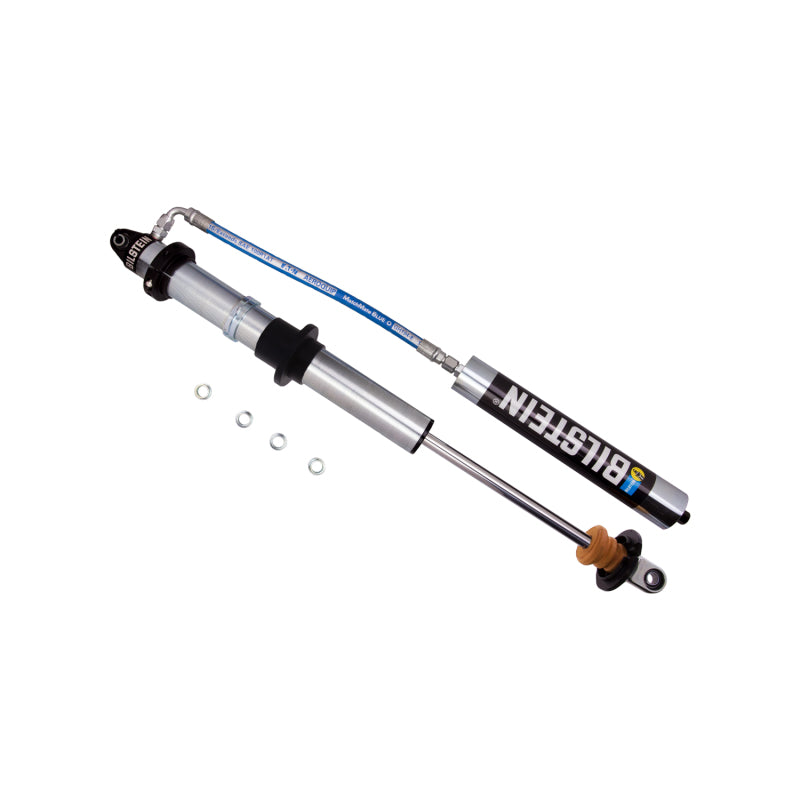

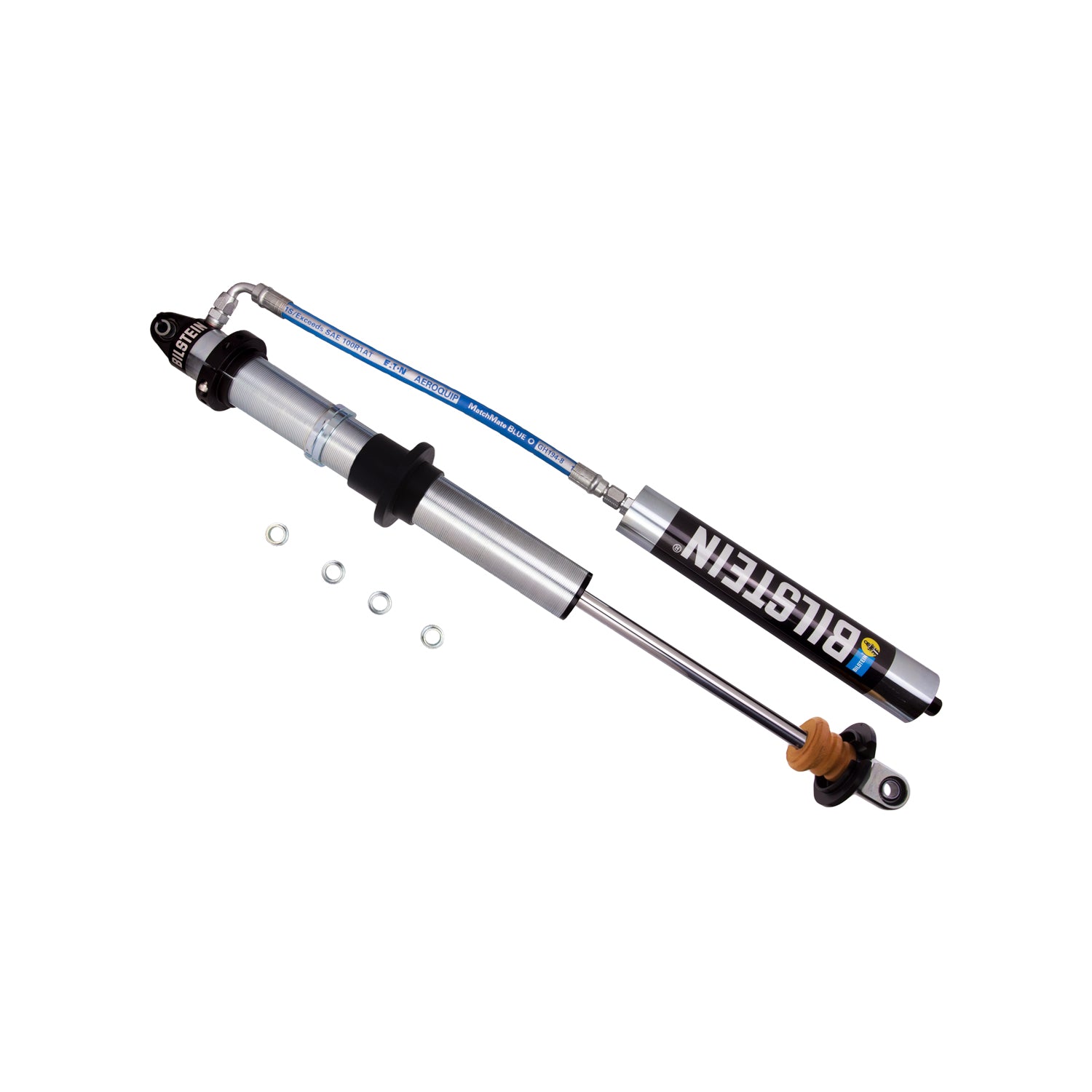

Bilstein M 9200 (Coilover) 60mm Shock Absorber - 33-244501

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Features

• Available in 46mm and 60mm monotubes
• Threaded body with dual-rate coilover hardware
• Multiple stroke lengths available ranging from 8" to 16"

Specifications

• Upper Mount Type: Eye .5x1.5in
• Mount Type: Eye-to-Eye
• Rebound @0.52m/S: 2550
• Reservoir: Yes
• Extended Length (in): 42.50
• Extended Length (mm): 1079.5
• Spring Seat Included: No
• Collapsed Length (in): 26.50
• Piston Diameter: 60mm
• Stroke/Travel Length (in): 16.00
• Shaft Diameter (mm): 22.0
• Stroke/Travel Length (mm): 406.4
• Body Design: Threaded Body (Coilover)
• Series: M 9200 (Coilover)
• Internal Design: Monotube
• Collapsed Length (mm): 673.1
• Compression @0.52m/S: 1000
• Lower Mount Type: Eye .5x1.5in
• Finish: Zinc Plated

Application

• No Applications
