Bilstein Part # BIL33-269535

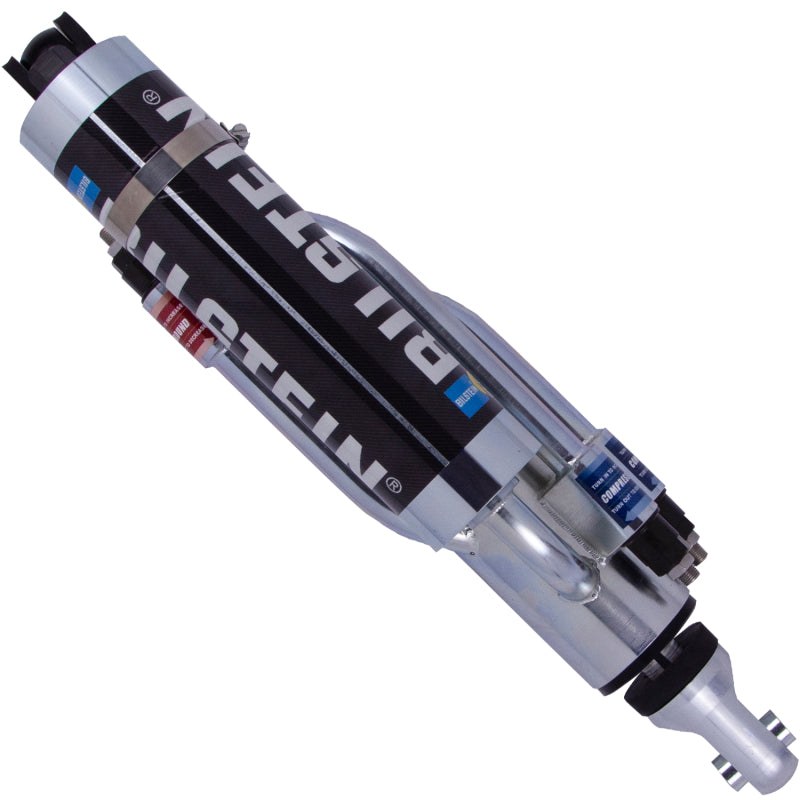

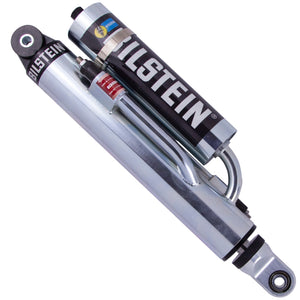

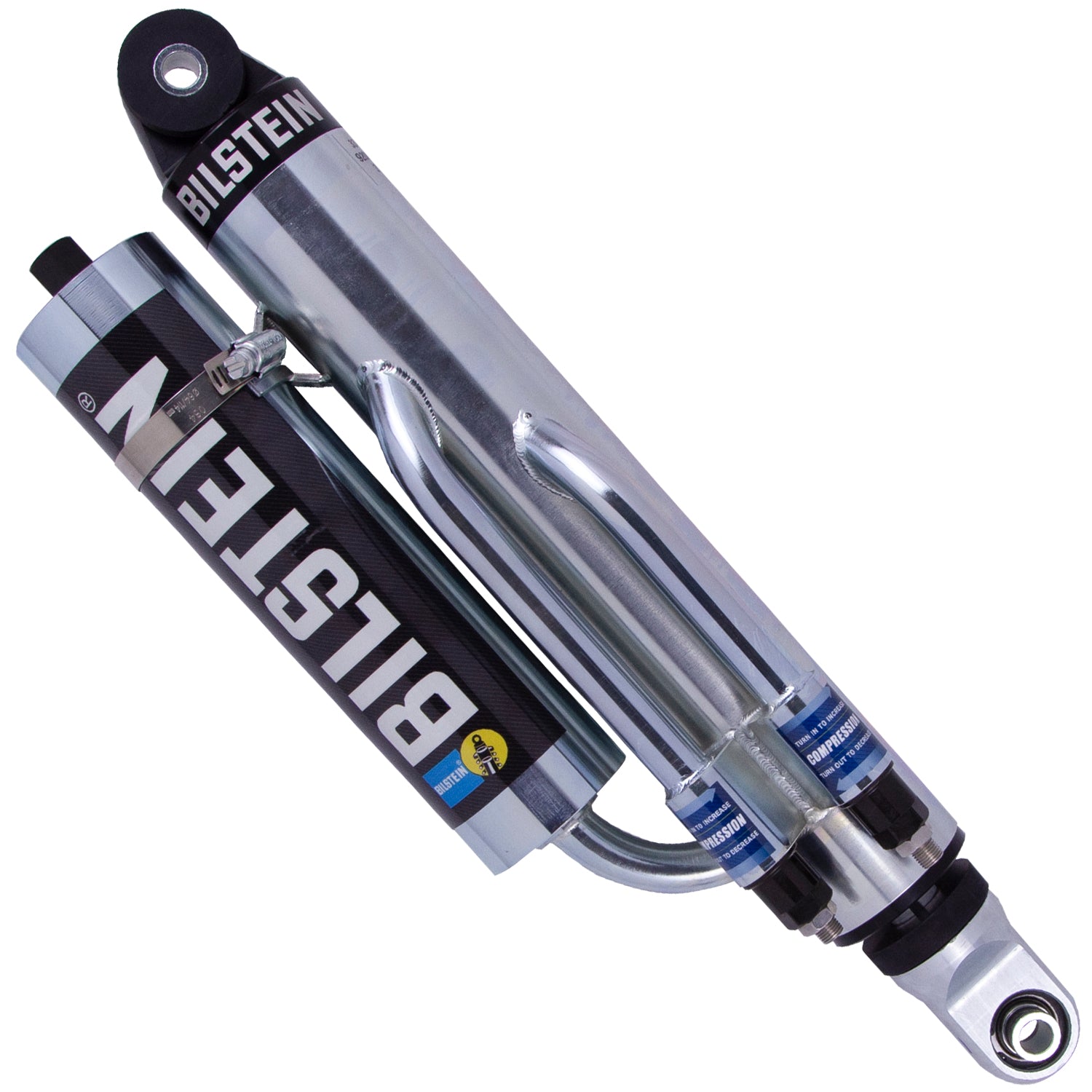

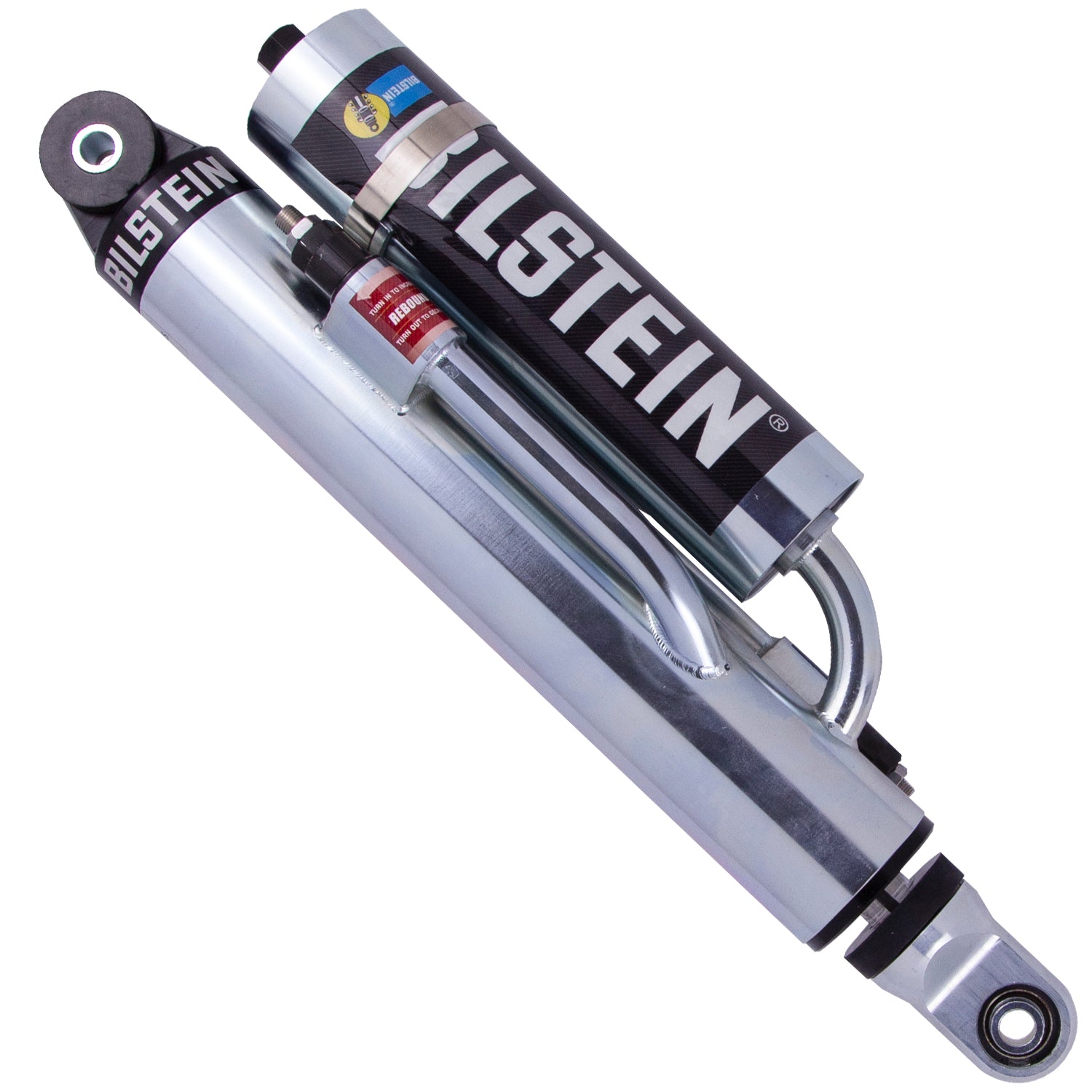

Bilstein M 9200 (Bypass) 3-Tube Zinc Plated Right Side Monotube Shock Absorber - 33-269535

Before you order

Customers also viewed

4.8 on Google964 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length.

These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

  • Available in 60mm, 70mm and 83mm monotubes.

  • 4-tube, position sensitive with adjustable rebound and compression.

  • Multiple stroke lengths available ranging from 8" to 18".

Mount type Eye-to-Eye
Upper mount type Eye .5x1.5in
Body design 3-Tube Bypass Screw Top
Collapsed length (mm) 444.5
Reservoir Yes
Extended length (mm) 647.7
Finish Zinc Plated
Compression @0.52m/S Custom
Position Right
Lower mount type Eye .5x1.5in
Spring seat included No
Series M 9200 (Bypass)
Piston diameter 60mm
Collapsed length (in) 17.50
Internal design Monotube
Extended length (in) 25.50
Rebound @0.52m/S Custom
Stroke/travel length (mm) 203.2
Shaft diameter (mm) 22.0
Stroke/travel length (in) 8.00
Part number 33-269535

  • Universal fitment. Check dimensions before ordering.
