Bilstein Part # BIL33-269528

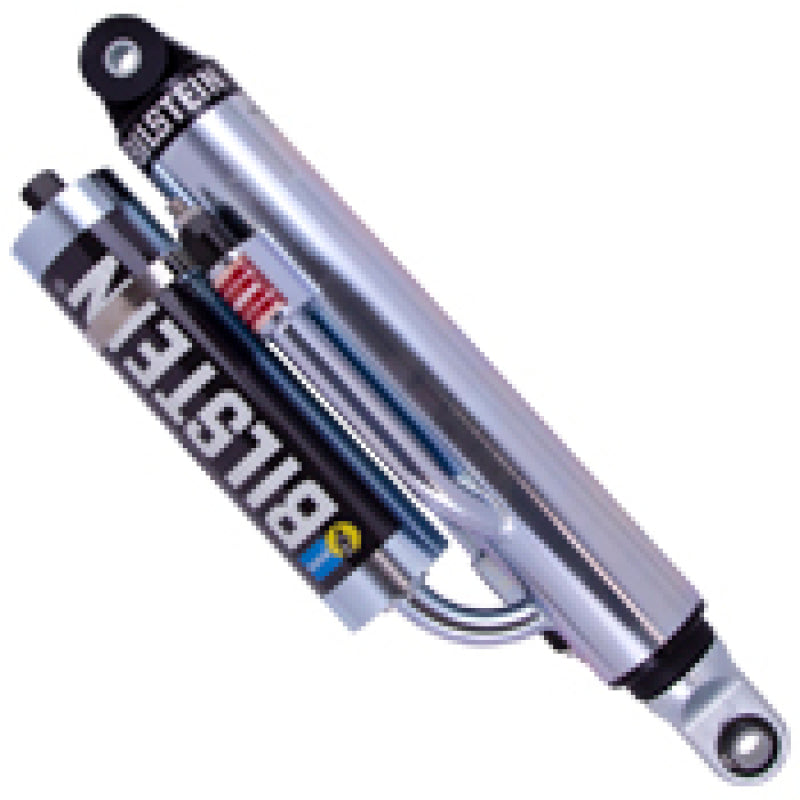

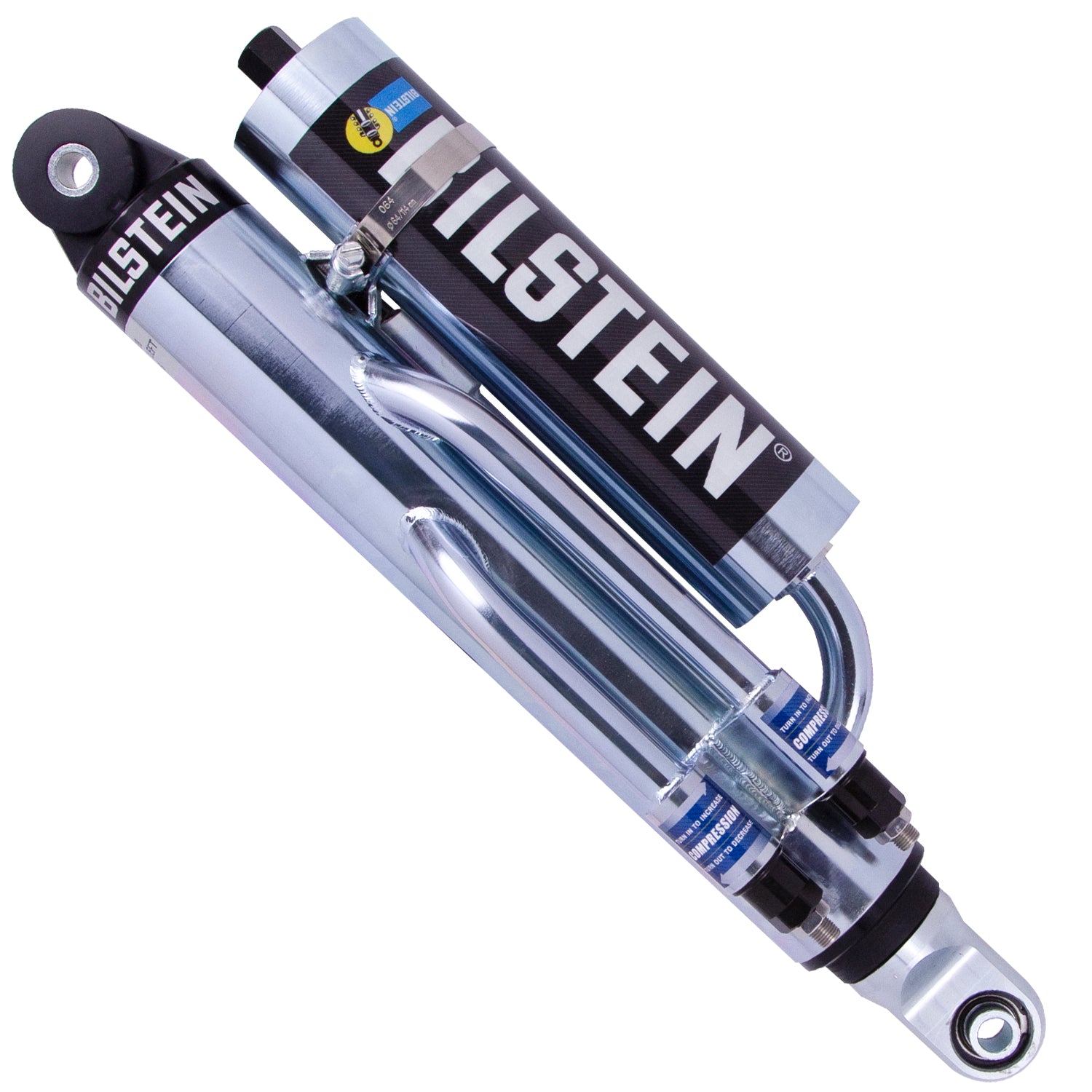

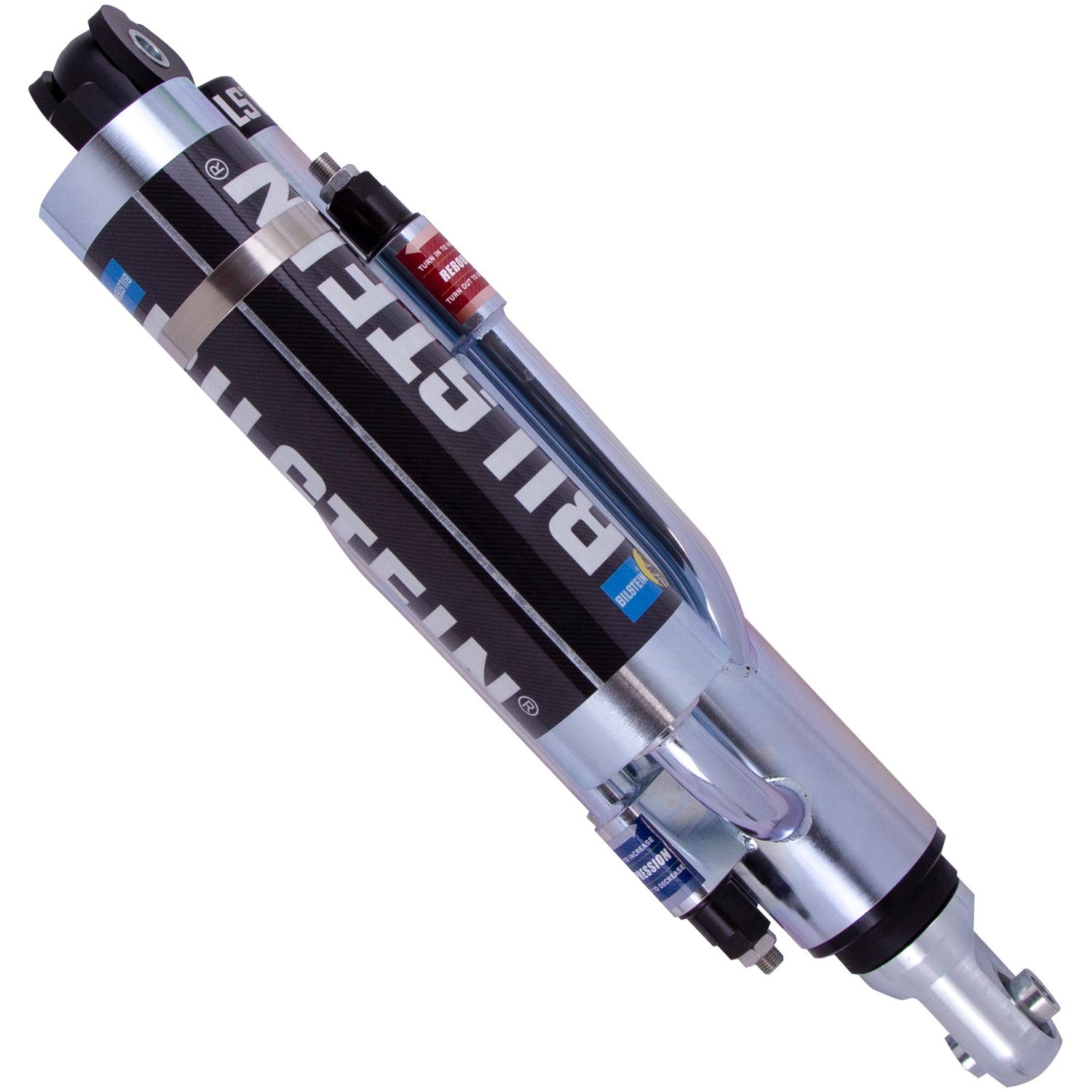

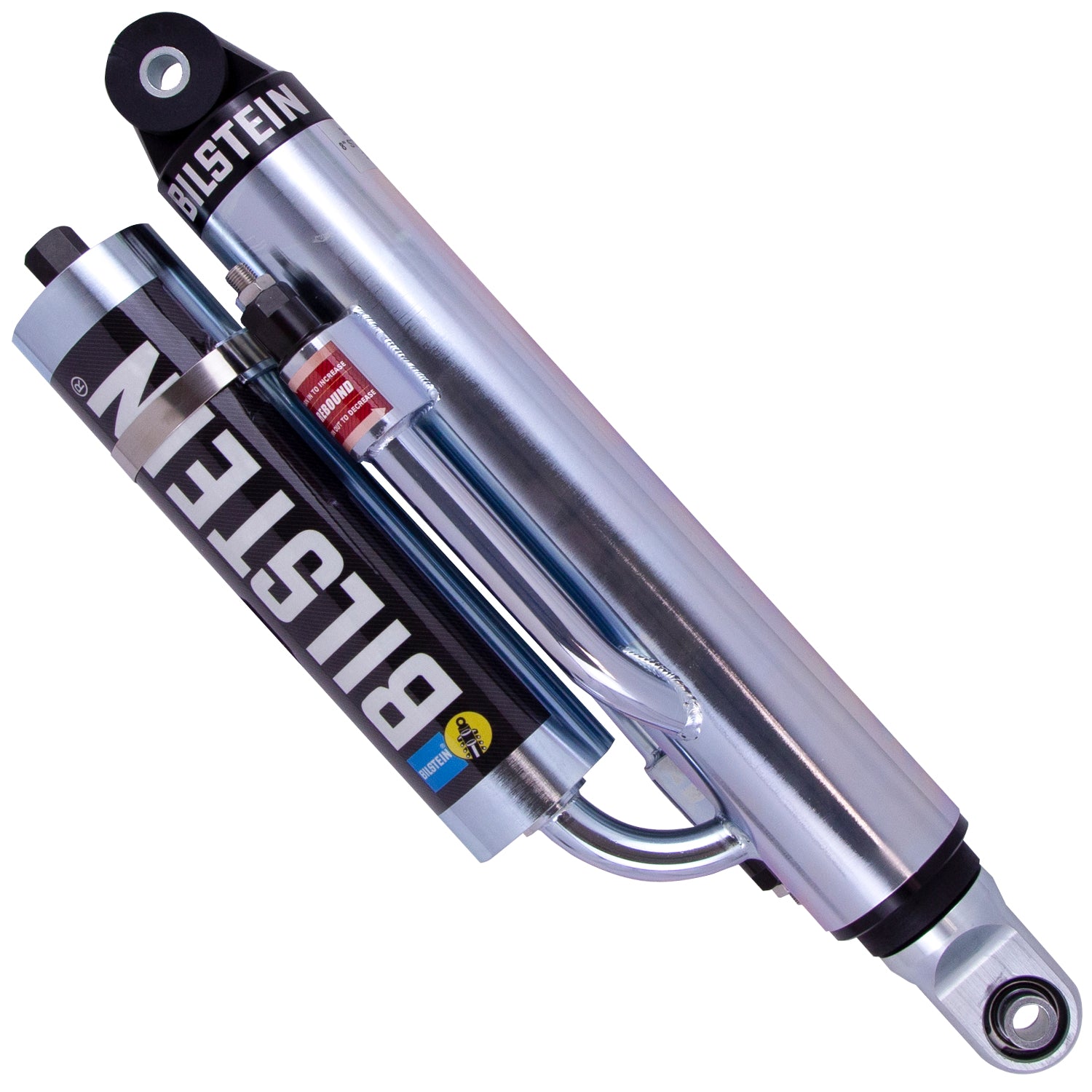

Bilstein M 9200 (Bypass) 3-Tube Zinc Plated Left Side Monotube Shock Absorber - 33-269528

Before you order

Customers also viewed

4.8 on Google969 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length.

These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

  • Available in 60mm, 70mm and 83mm monotubes.

  • 4-tube, position sensitive with adjustable rebound and compression.

  • Multiple stroke lengths available ranging from 8" to 18".

Finish Zinc Plated
Series M 9200 (Bypass)
Extended length (mm) 647.7
Position Left
Collapsed length (mm) 444.5
Extended length (in) 25.50
Upper mount type Eye .5x1.5in
Internal design Monotube
Spring seat included No
Piston diameter 60mm
Collapsed length (in) 17.50
Stroke/travel length (mm) 203.2
Shaft diameter (mm) 22.0
Stroke/travel length (in) 8.00
Compression @0.52m/S Custom
Body design 3-Tube Bypass Screw Top
Reservoir Yes
Rebound @0.52m/S Custom
Mount type Eye-to-Eye
Lower mount type Eye .5x1.5in
Part number 33-269528

  • Universal fitment. Check dimensions before ordering.
