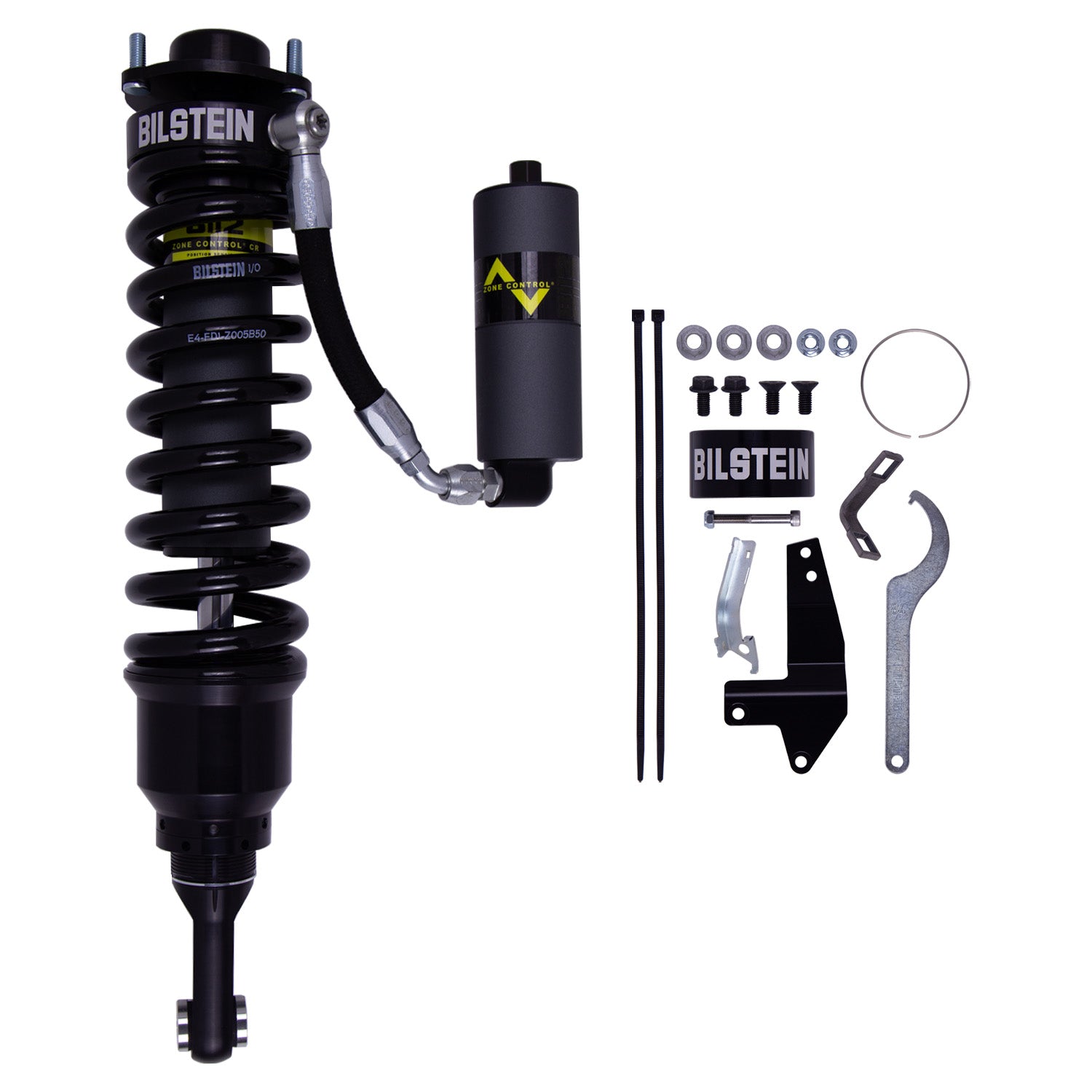

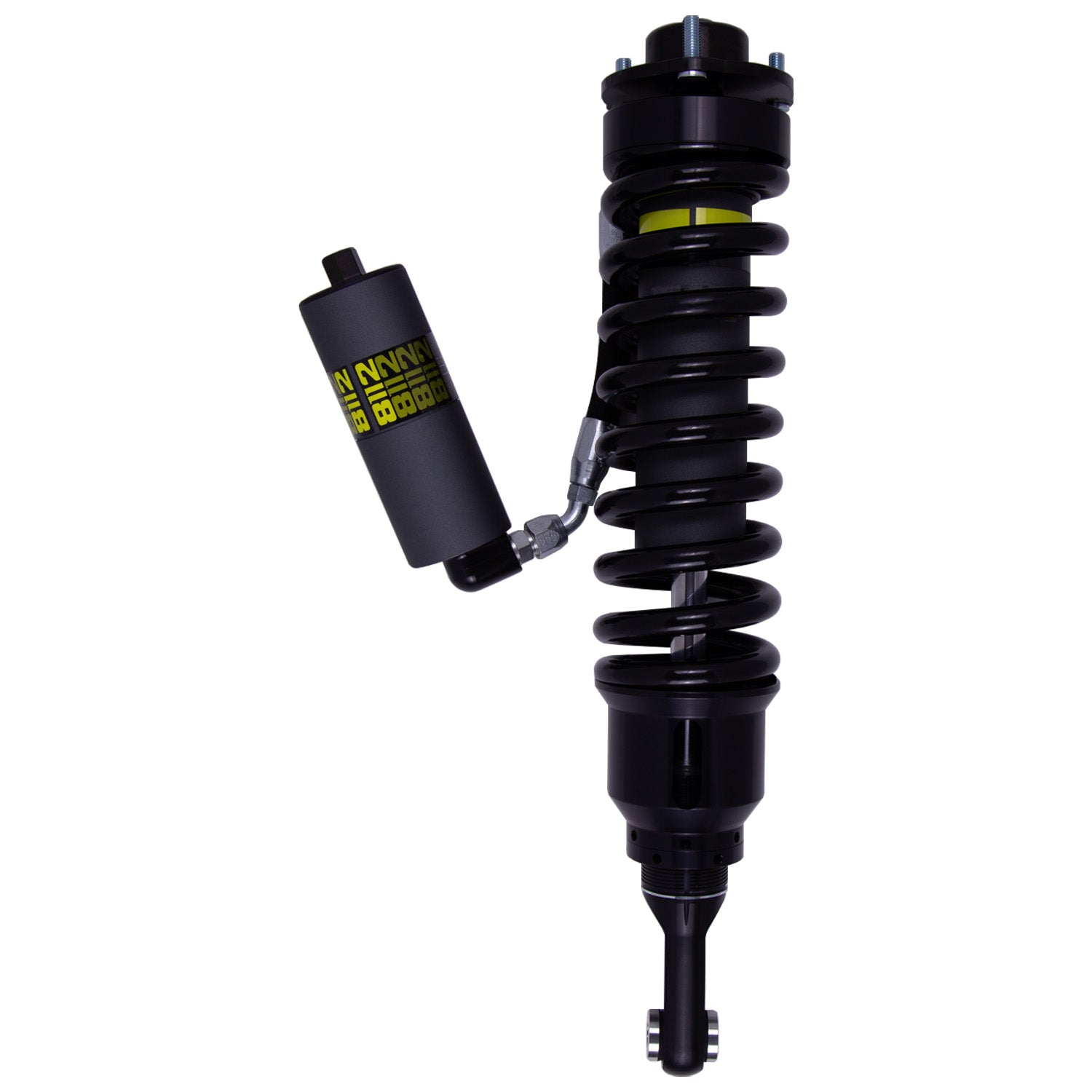

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving.
The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
ZoneControl® CR. Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.
Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs.
60mm remote reservoir for increased oil capacity and cooling.
| Finish | Dampers: EVO Grey / Springs: Black |
|---|---|
| Reservoir | Yes |
| Body material | Steel |
| Lower mount type | Eye 14.1mm |
| Upper mount type | Special |
| Boot included | No |
| Optional heavy load springs | 53-291387, 53-332837 |
| Adjustable damping | Non-Adjustable |
| Collapsed length (in) | 17.99 |
| Internal design | Monotube |
| Spring seat included | Yes |
| Collapsed length (mm) | 456.9 |
| Series | B8 8112 (ZoneControl CR) |
| Extended length (in) | 22.80 |
| Body design | Smooth Body (Coilover) |
| Extended length (mm) | 579.1 |
| Piston diameter | 60mm |
| Shaft diameter (mm) | 22.0 |
| Front main spring rate (lbs/in) | 600 lbs |
| Part number | 41-324165 |
