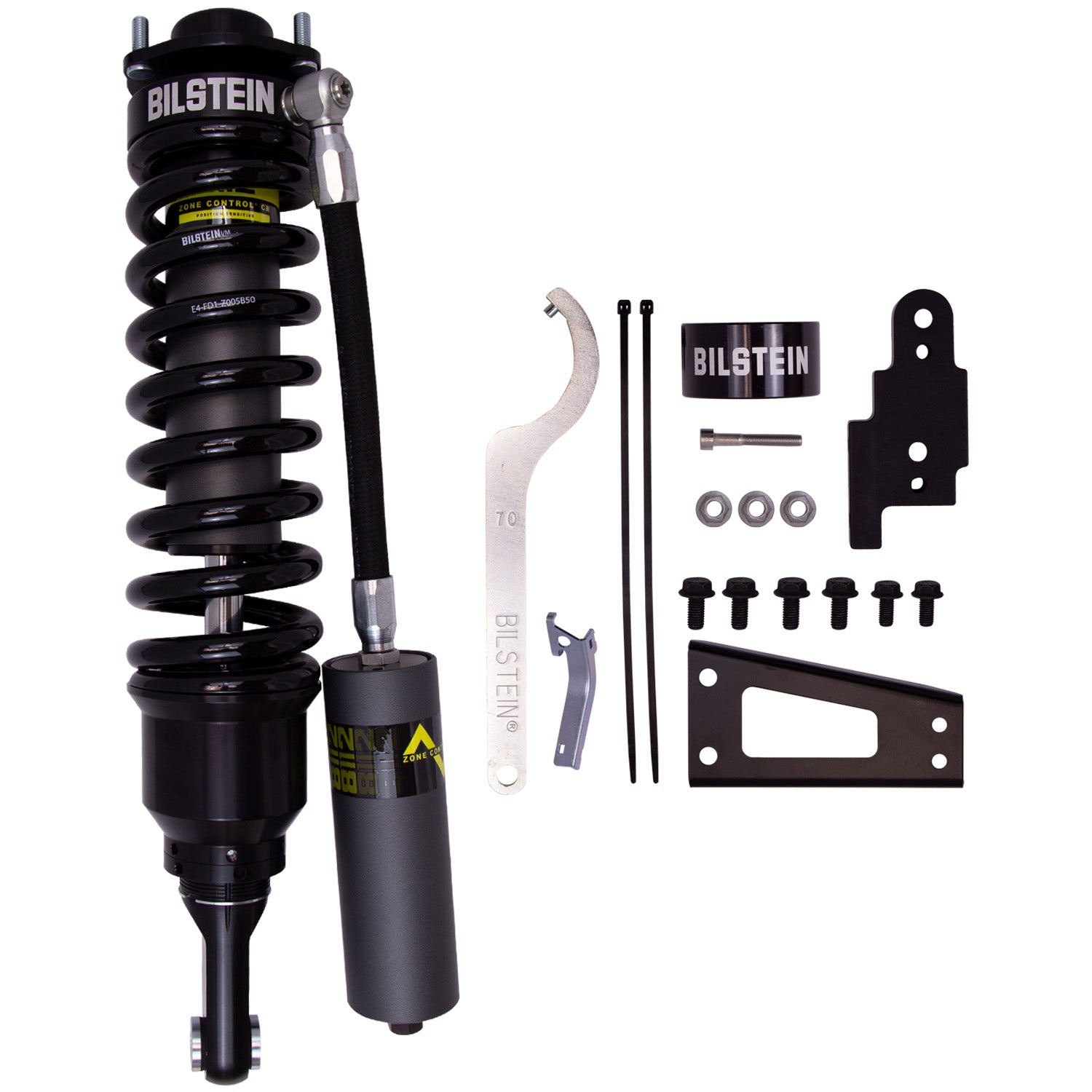

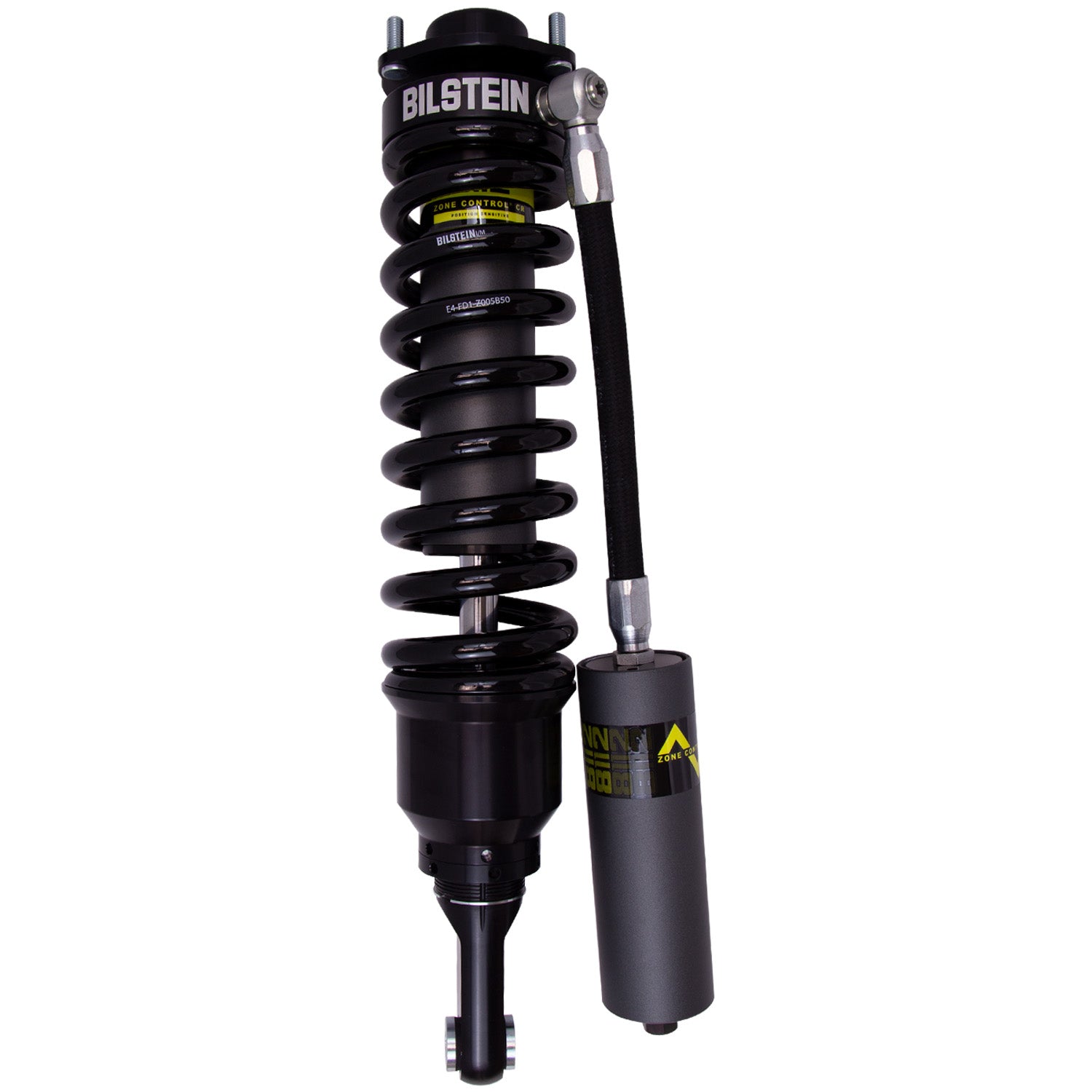

Bilstein B8 8112 Series 05-22 Toyota Tacoma Zone Control CR Front Right Corner Module - 41-322697

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Features

• 60mm remote reservoir for increased oil capacity and cooling
• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs

📄 USA SDS_Shock_Air Spring_V2_EN.pdf

📄 B8_8112_Flyer.pdf

📄 BILSTEIN Off-Road Brochure (8.5x14.75) 2024_WEB.pdf

📄 E-WM05-0000116.pdf
