Bilstein Part # BIL41-319574

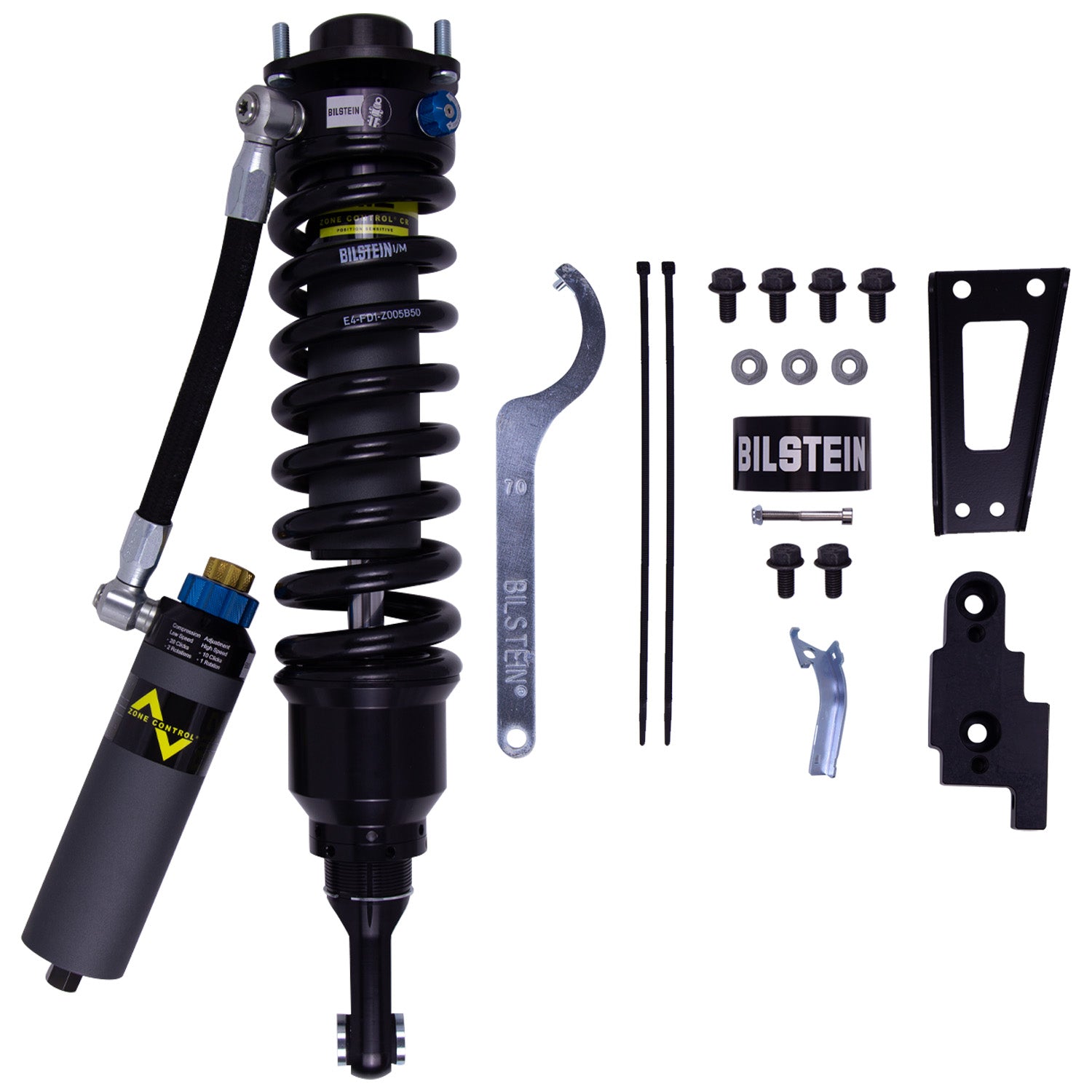

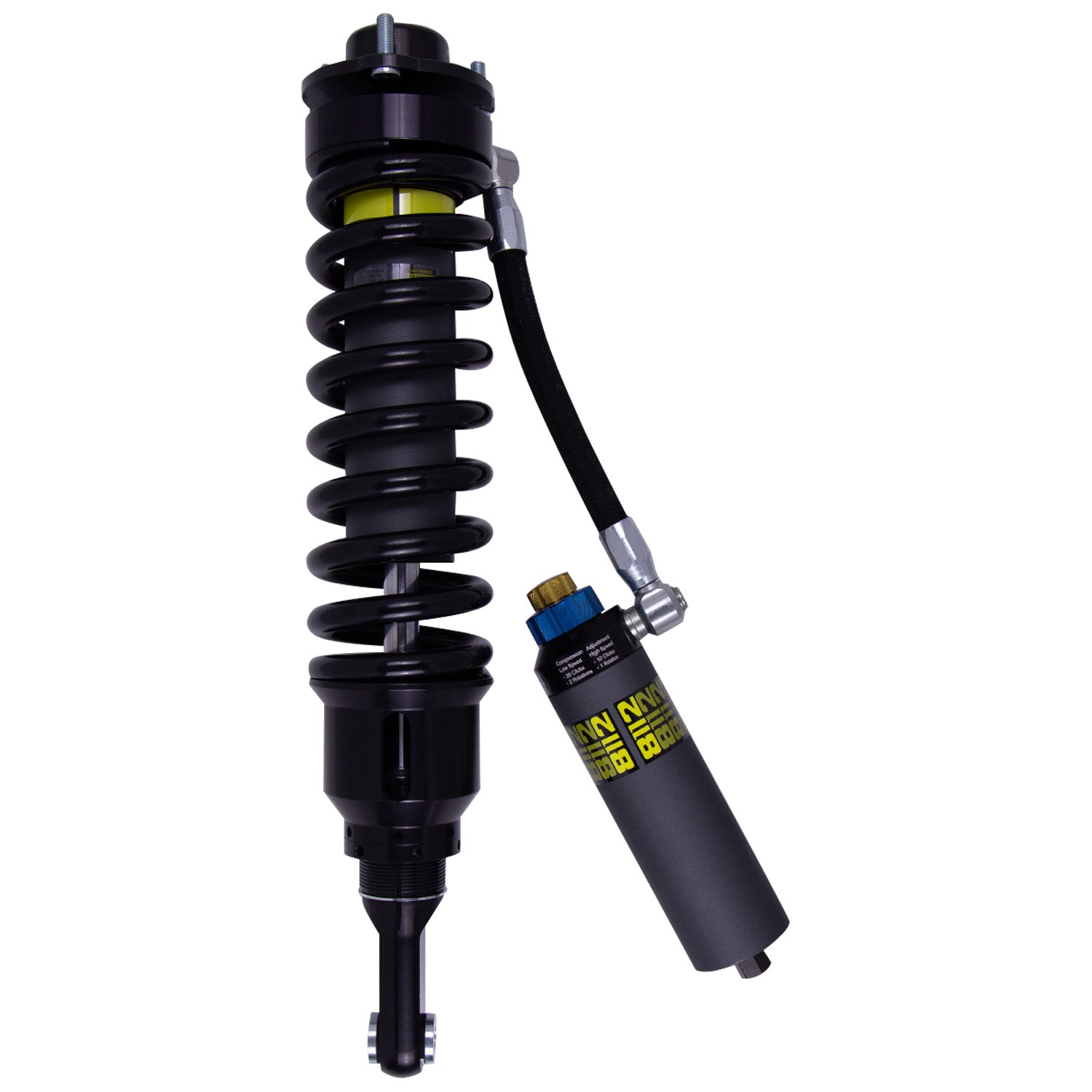

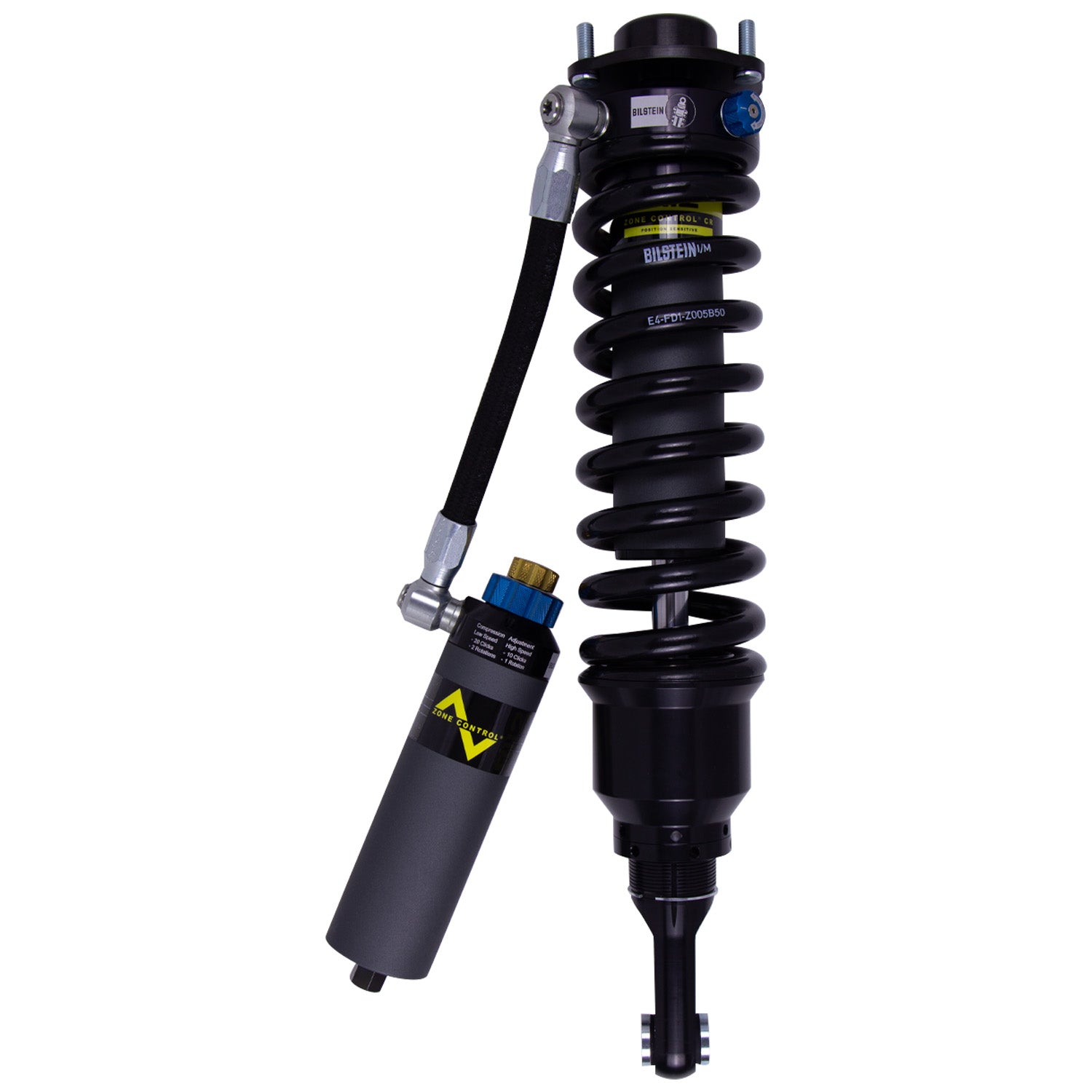

Bilstein B8 8112 Series 05-22 Toyota Tacoma Front Left Shock Absorber and Coil Spring Assembly - 41-319574

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

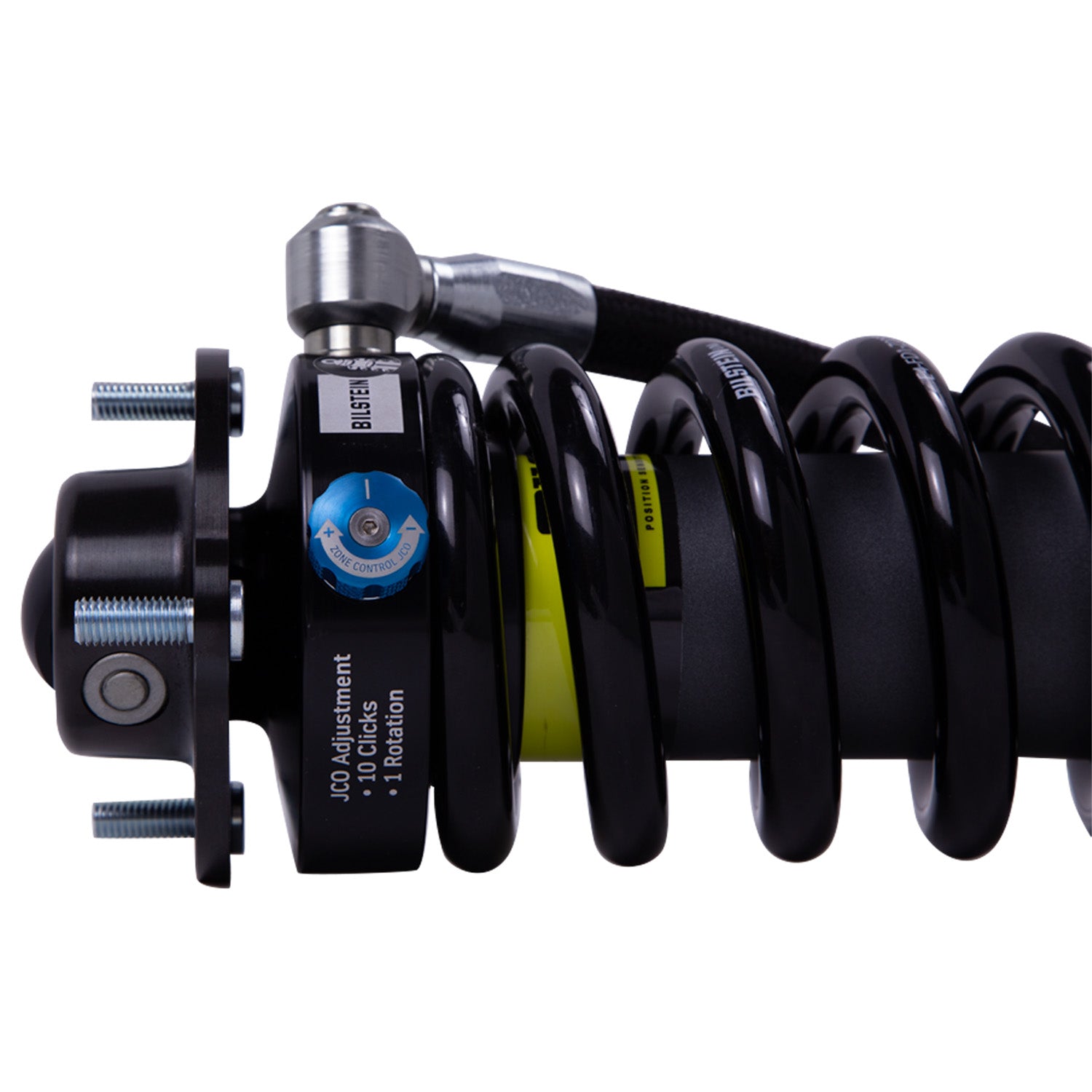

  • Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)

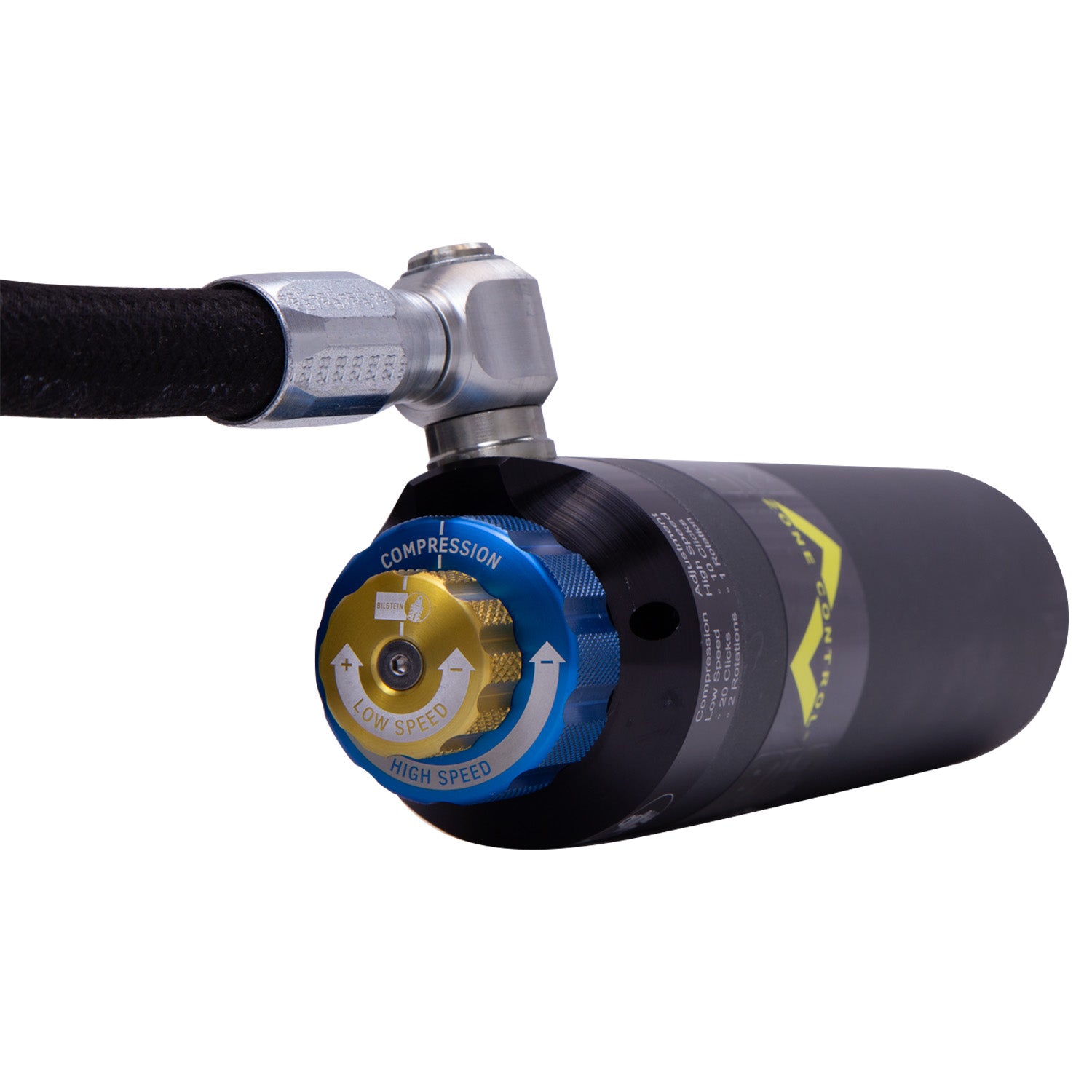

  • 60mm remote reservoir for increased oil capacity and cooling

  • Internal Design: Monotube
  • Spring Seat Included: Yes
  • Series: B8 8112 (ZoneControl CR DSA+)
  • Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
  • Body Material: Steel
  • Collapsed Length (mm): 442.6
  • Boot Included: No
  • Extended Length (in): 22.39
  • Reservoir: Yes
  • Lower Mount Type: Eye 15.88mm
  • Body Design: Smooth Body (Coilover)
  • Extended Length (mm): 568.8
  • Upper Mount Type: Special
  • Finish: Dampers: EVO Grey/Springs: Black
  • Collapsed Length (in): 17.43
  • Optional Heavy Load Springs: 53-291387, 53-332837
  • Aftermarket Upper Arms Required: Yes
  • Piston Diameter: 60mm
  • Shaft Diameter (mm): 22.0
  • Front Main Spring Rate (lbs/In): 600 lbs

Application

  • Toyota Tacoma 2005-2023
