Bilstein B8 8112 Series 03-09 Toyota 4Runner Zone Control Monotube Front Right Corner Module - 41-326336

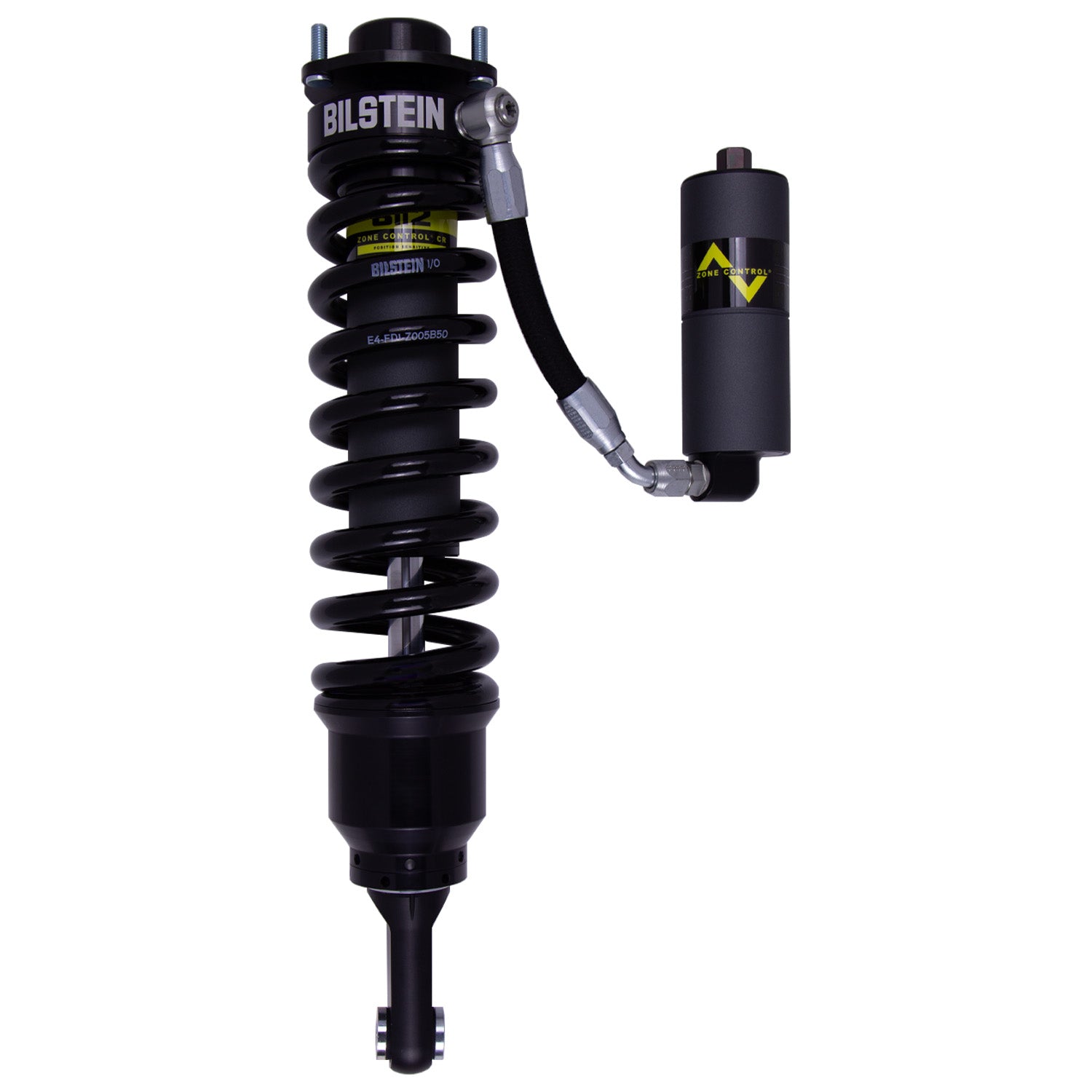

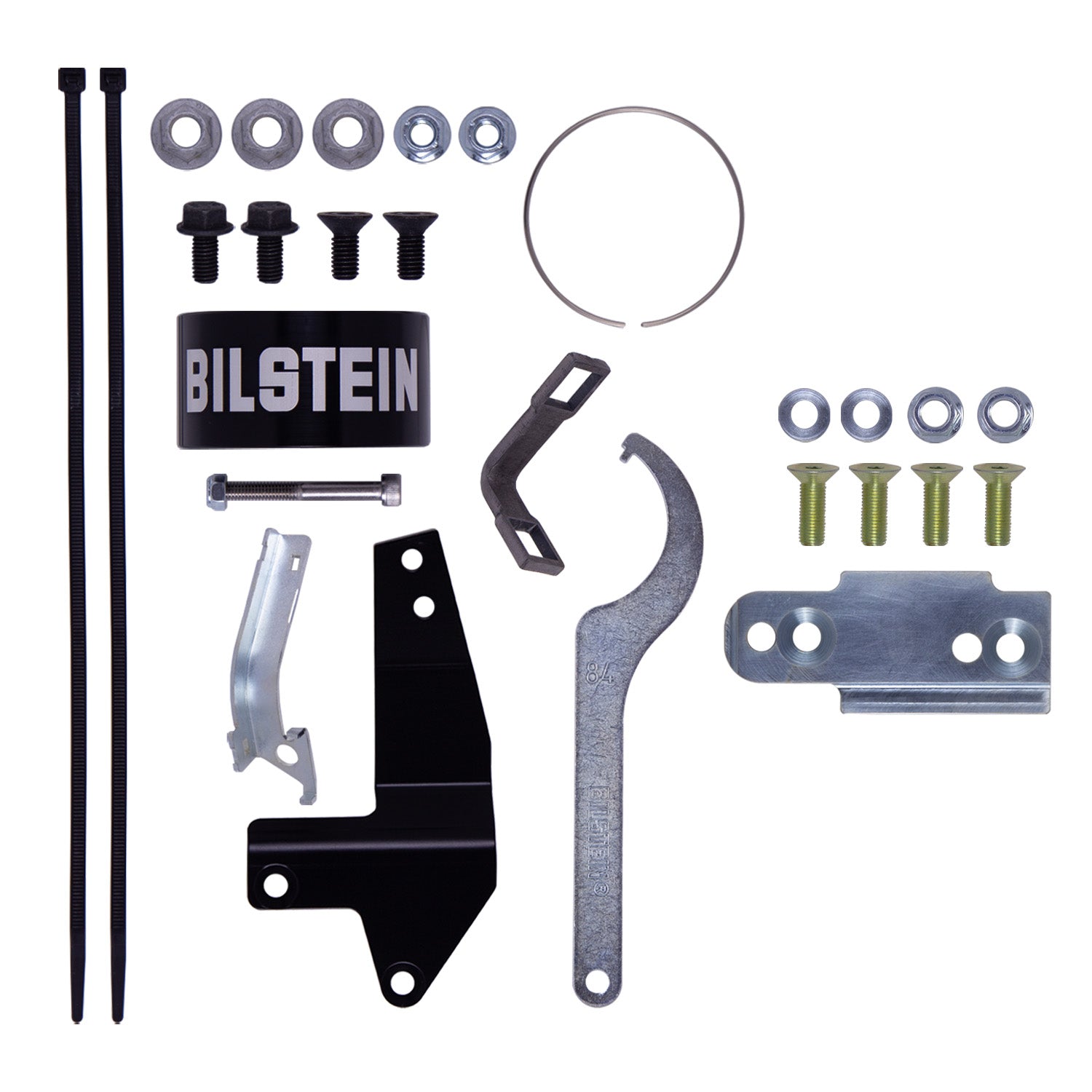

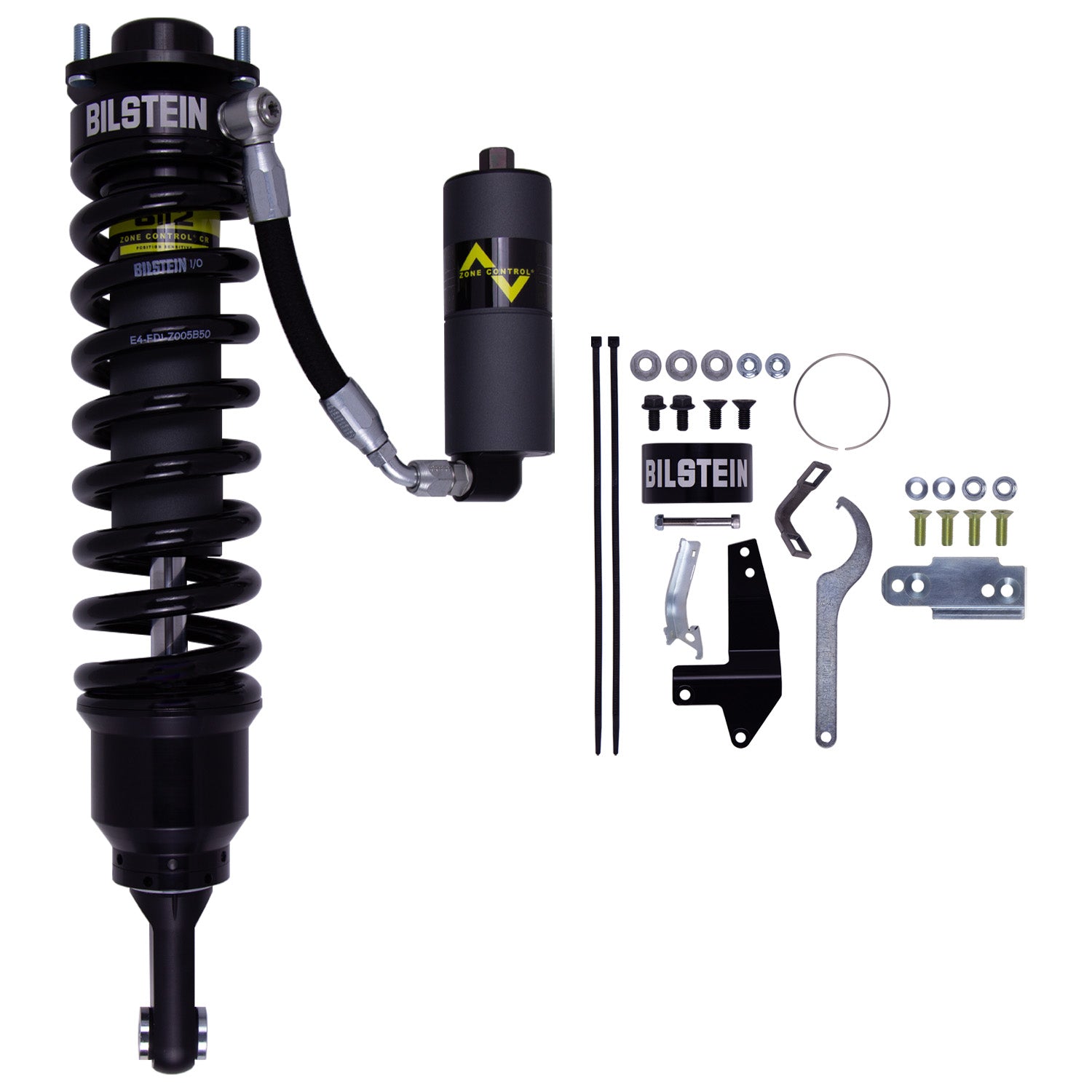

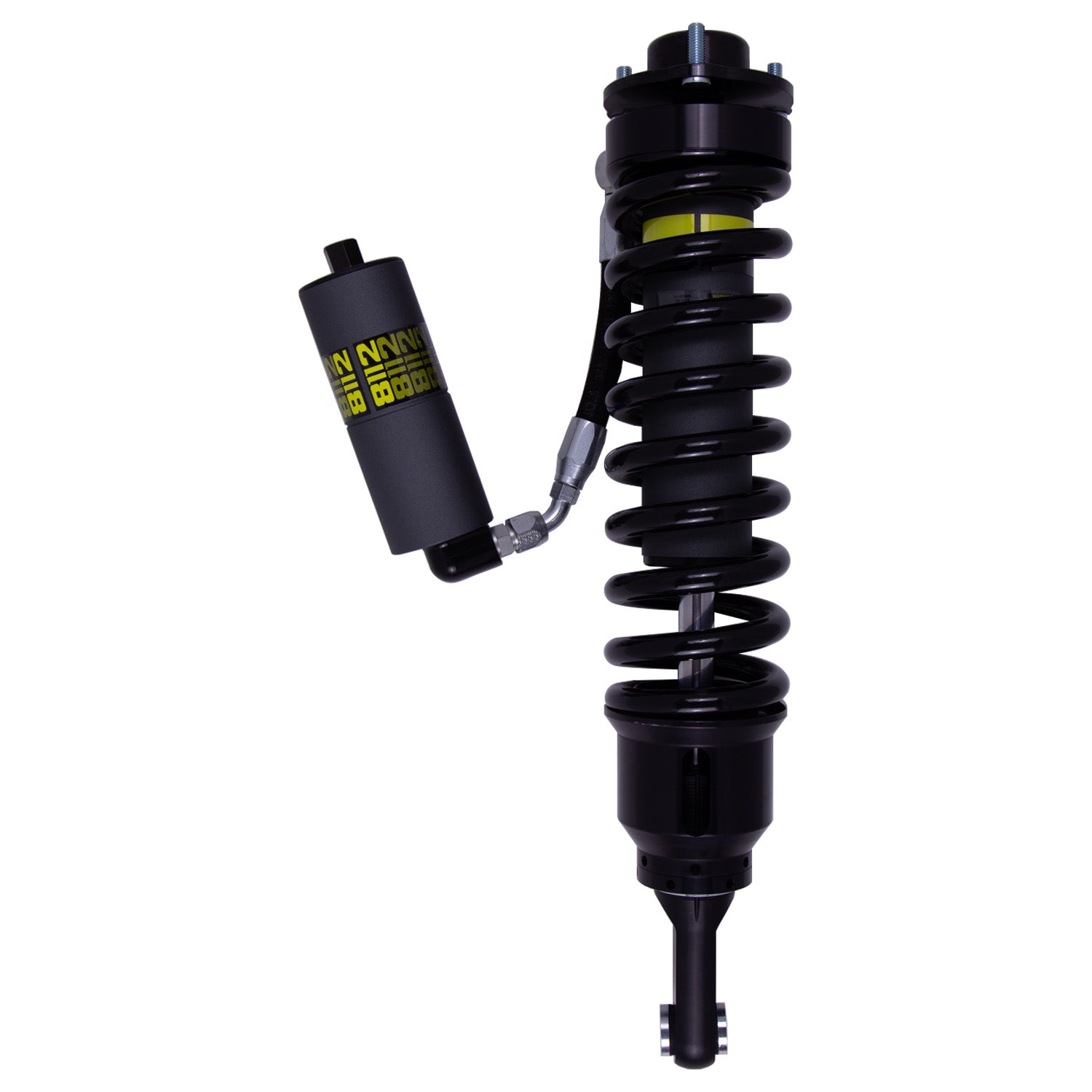

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Features

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
• 60mm remote reservoir for increased oil capacity and cooling

Specifications

• Reservoir: Yes
• Collapsed Length (in): 17.99
• Boot Included: No
• Lower Mount Type: Eye 14.1mm
• Optional Heavy Load Springs: 53-291387, 53-332837
• Extended Length (mm): 579.1
• Series: B8 8112 (ZoneControl CR)
• Adjustable Damping: Non-Adjustable
• Internal Design: Monotube
• Extended Length (in): 22.80
• Body Material: Steel
• Collapsed Length (mm): 456.9
• Spring Seat Included: Yes
• Finish: Dampers: EVO Grey / Springs: Black
• Body Design: Smooth Body (Coilover)
• Upper Mount Type: Special
• Piston Diameter: 60mm
• Shaft Diameter (mm): 22.0
• Front Main Spring Rate (lbs/In): 600 lbs

Application

• Lexus GX470 2003-2009, Toyota 4Runner 2003-2009, FJ Cruiser 2007-2009
