Bilstein Part # BIL41-326329

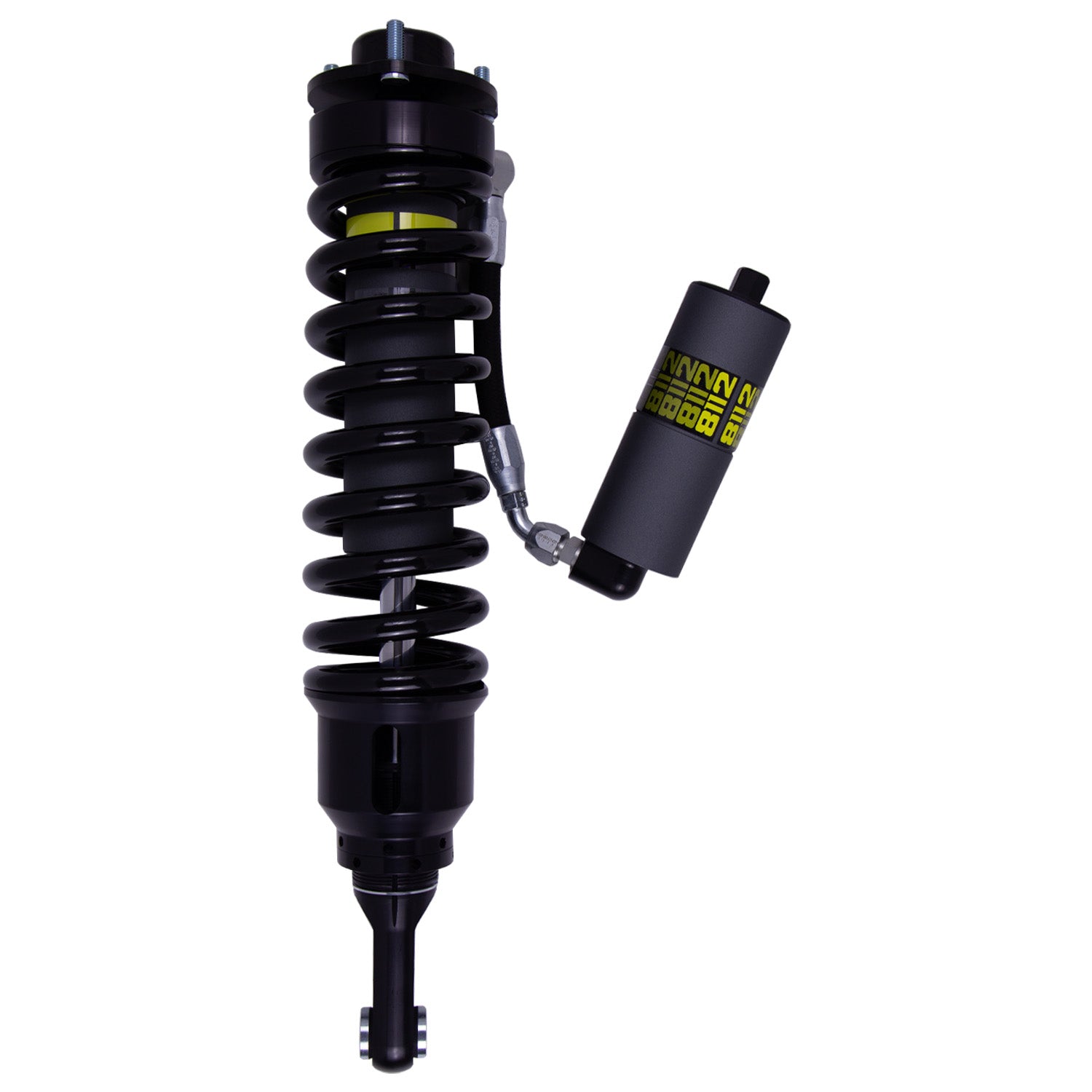

Bilstein B8 8112 Series 03-09 Toyota 4Runner Zone Control Monotube Front Left Corner Module - 41-326329

Before you order

Customers also viewed

4.8 on Google967 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving.

The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

  • ZoneControl® CR. Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.

  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs.

  • 60mm remote reservoir for increased oil capacity and cooling.

Body material Steel
Body design Smooth Body (Coilover)
Upper mount type Special
Finish Dampers: EVO Grey / Springs: Black
Collapsed length (mm) 456.9
Spring seat included Yes
Adjustable damping Non-Adjustable
Internal design Monotube
Reservoir Yes
Piston diameter 60mm
Shaft diameter (mm) 22.0
Front main spring rate (lbs/in) 600 lbs
Collapsed length (in) 17.99
Boot included No
Extended length (in) 22.80
Lower mount type Eye 14.1mm
Optional heavy load springs 53-291387, 53-332837
Extended length (mm) 579.1
Series B8 8112 (ZoneControl CR)
Part number 41-326329

  • Lexus GX470 2003-2009, Toyota 4Runner 2003-2009, FJ Cruiser 2007-2009
