Bilstein Part # BIL47-310834

Bilstein B8 6112 14-18 Chevrolet Silverado 1500 Front Suspension Kit - 47-310834

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

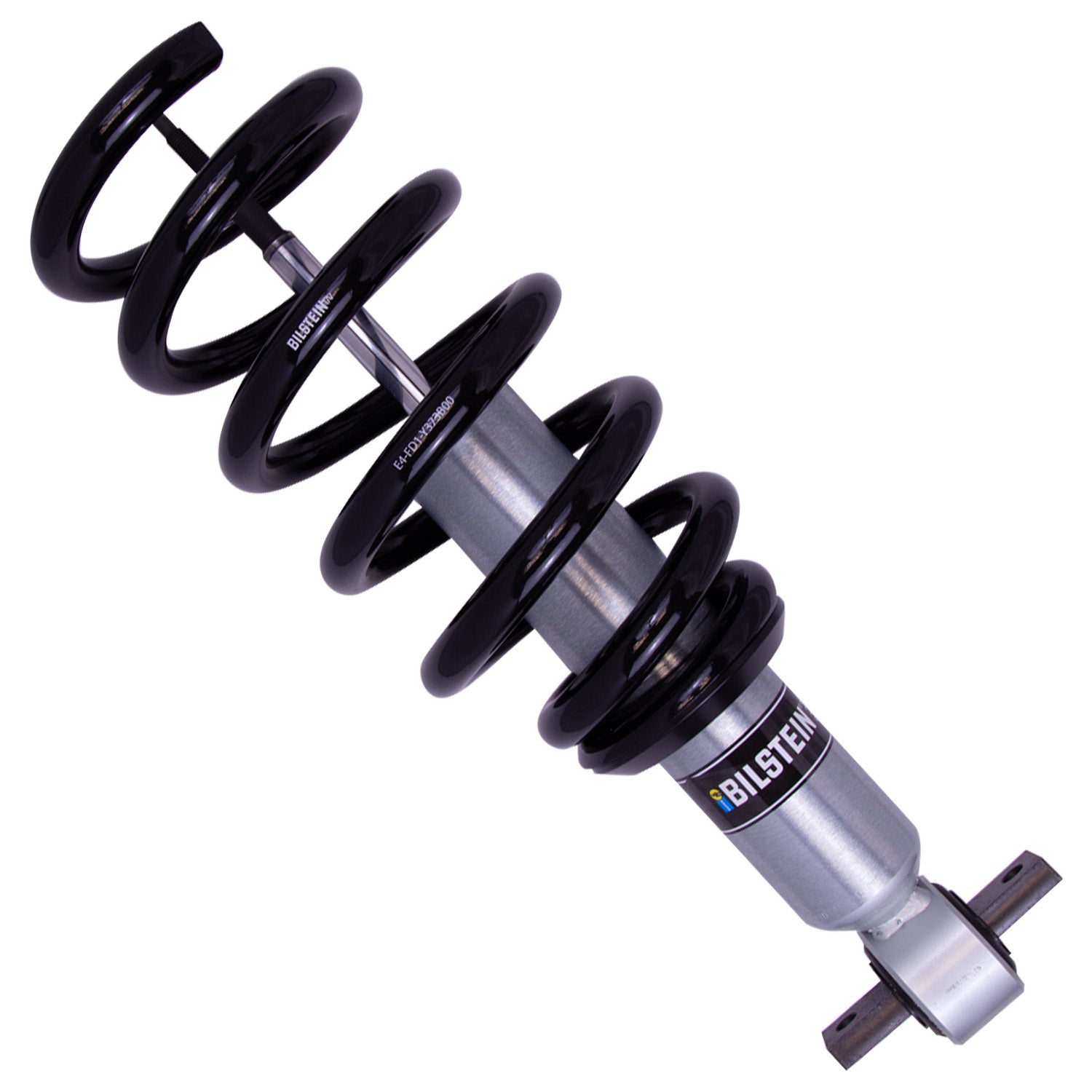

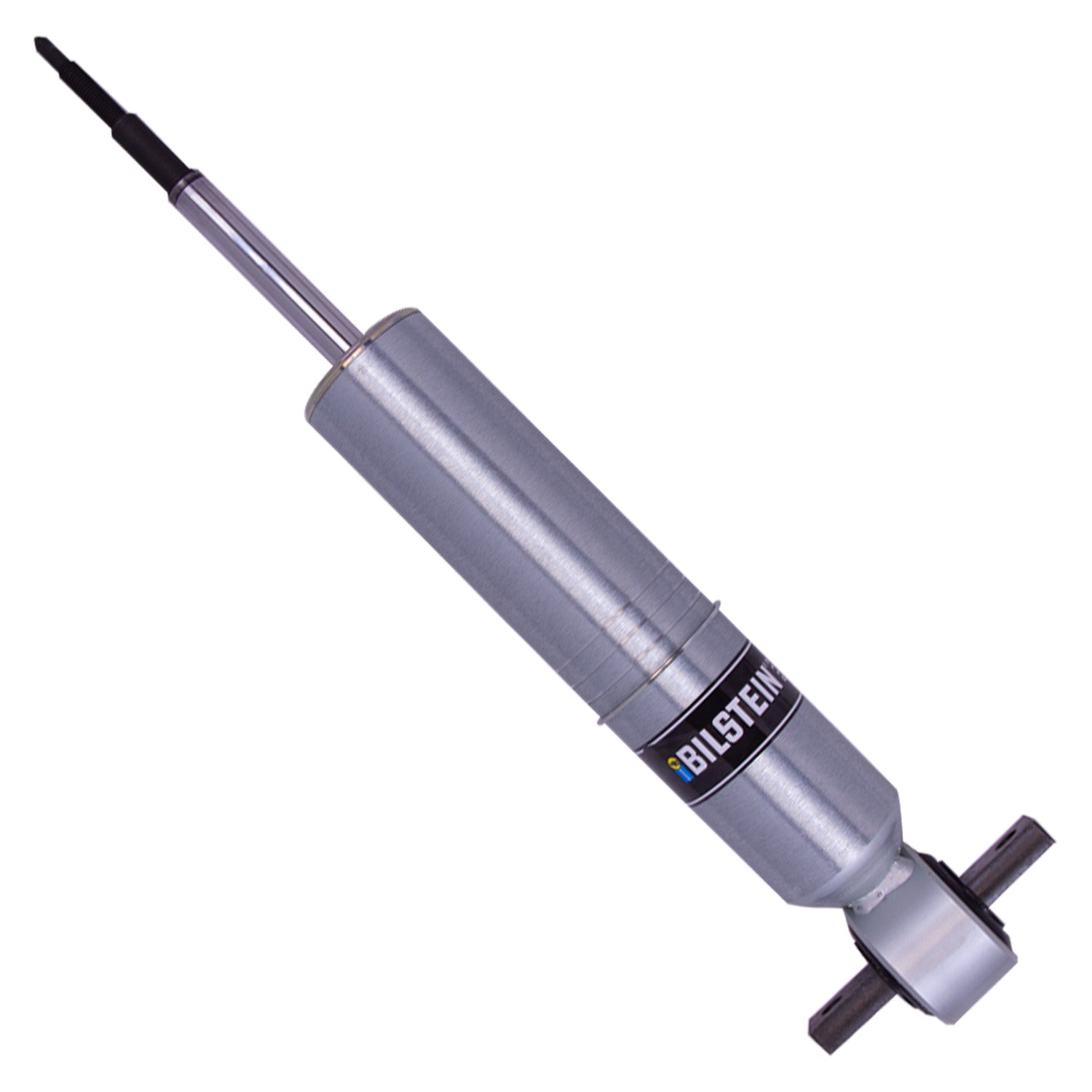

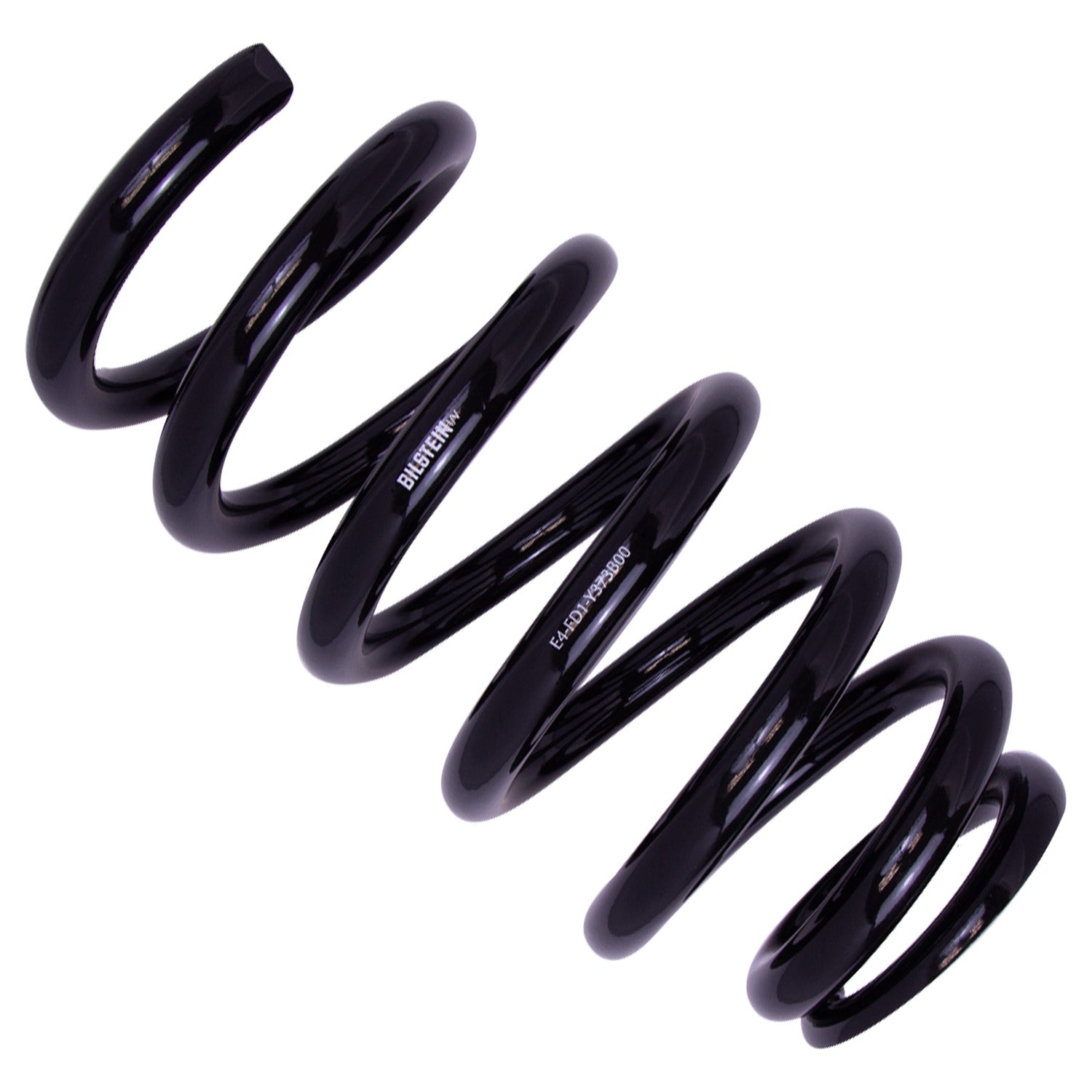

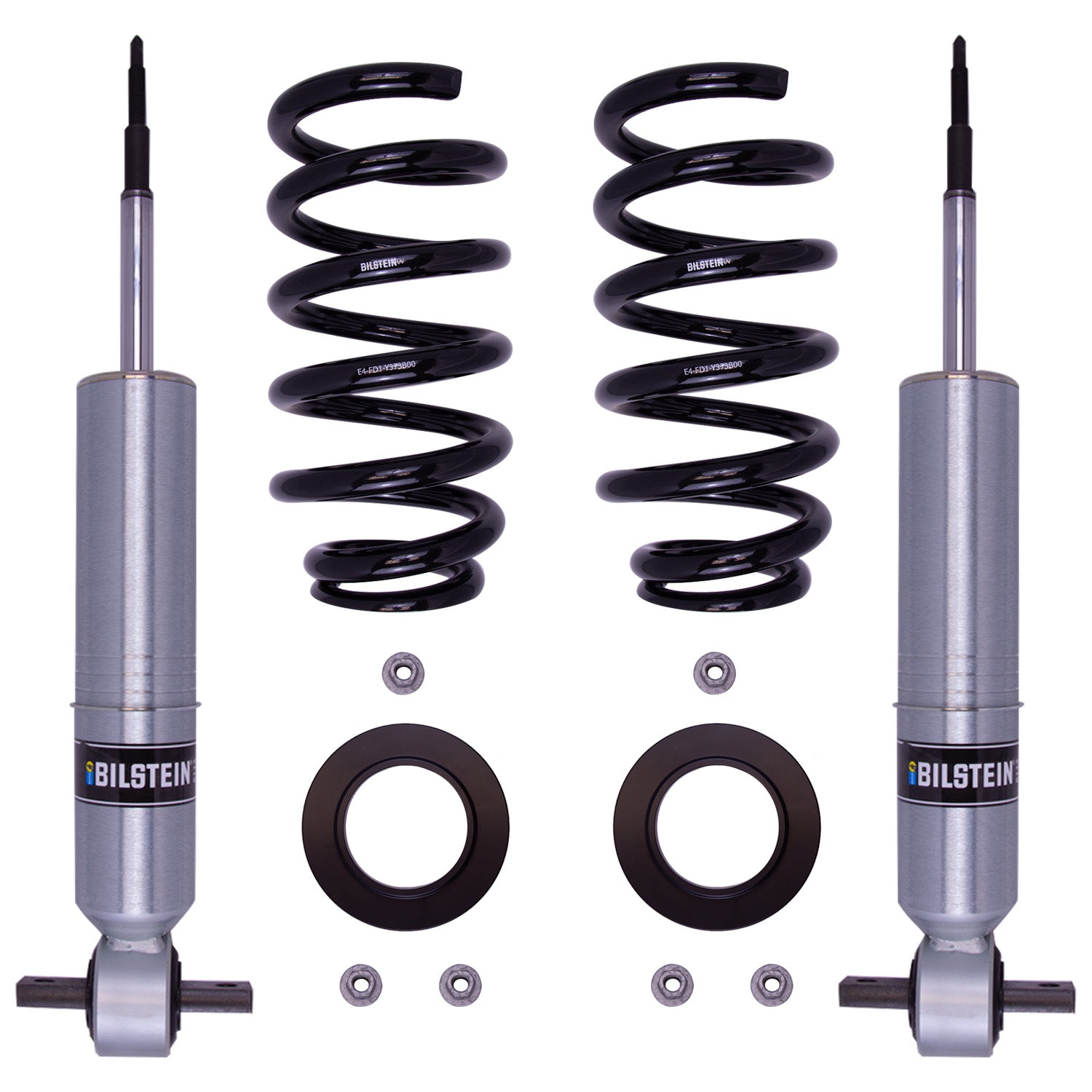

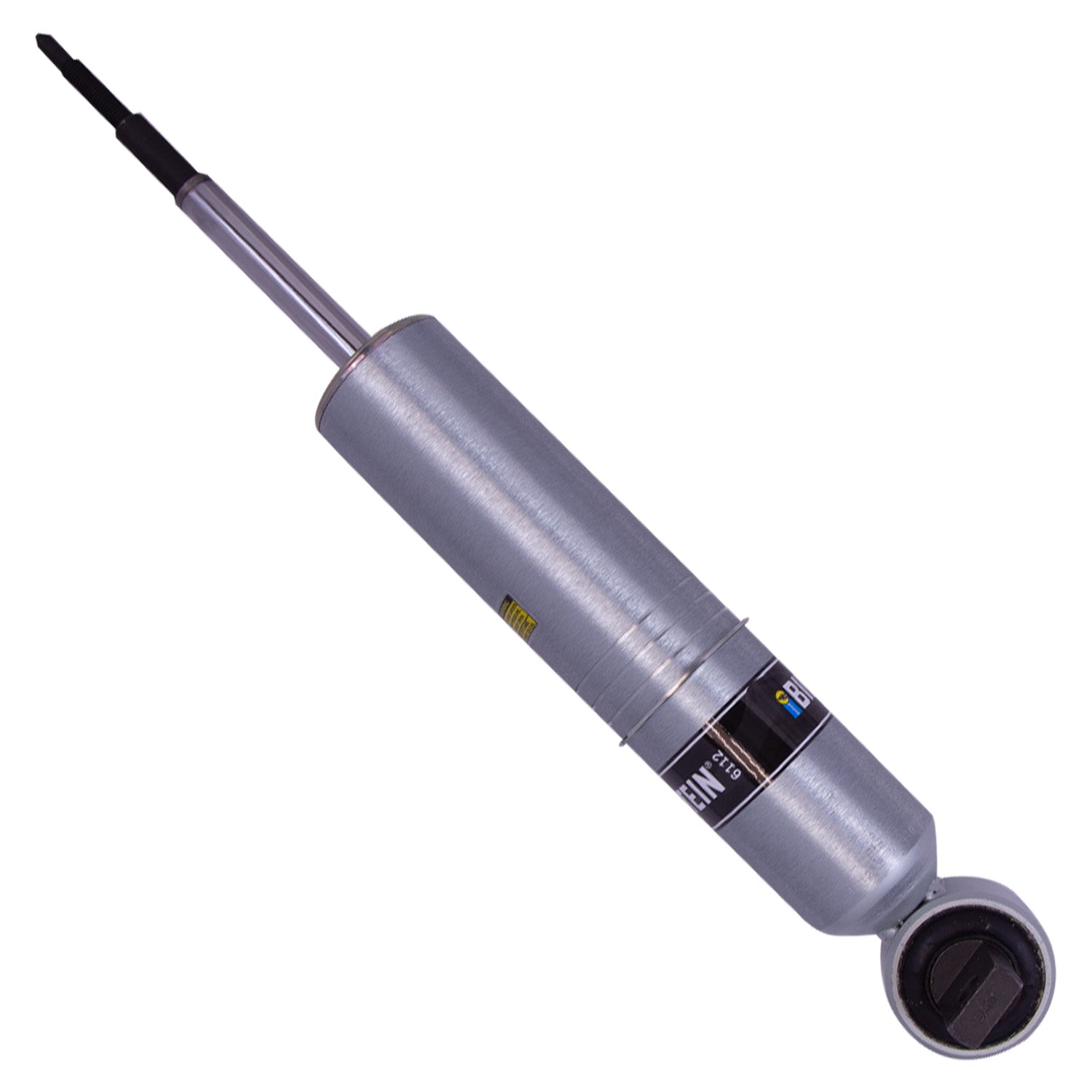

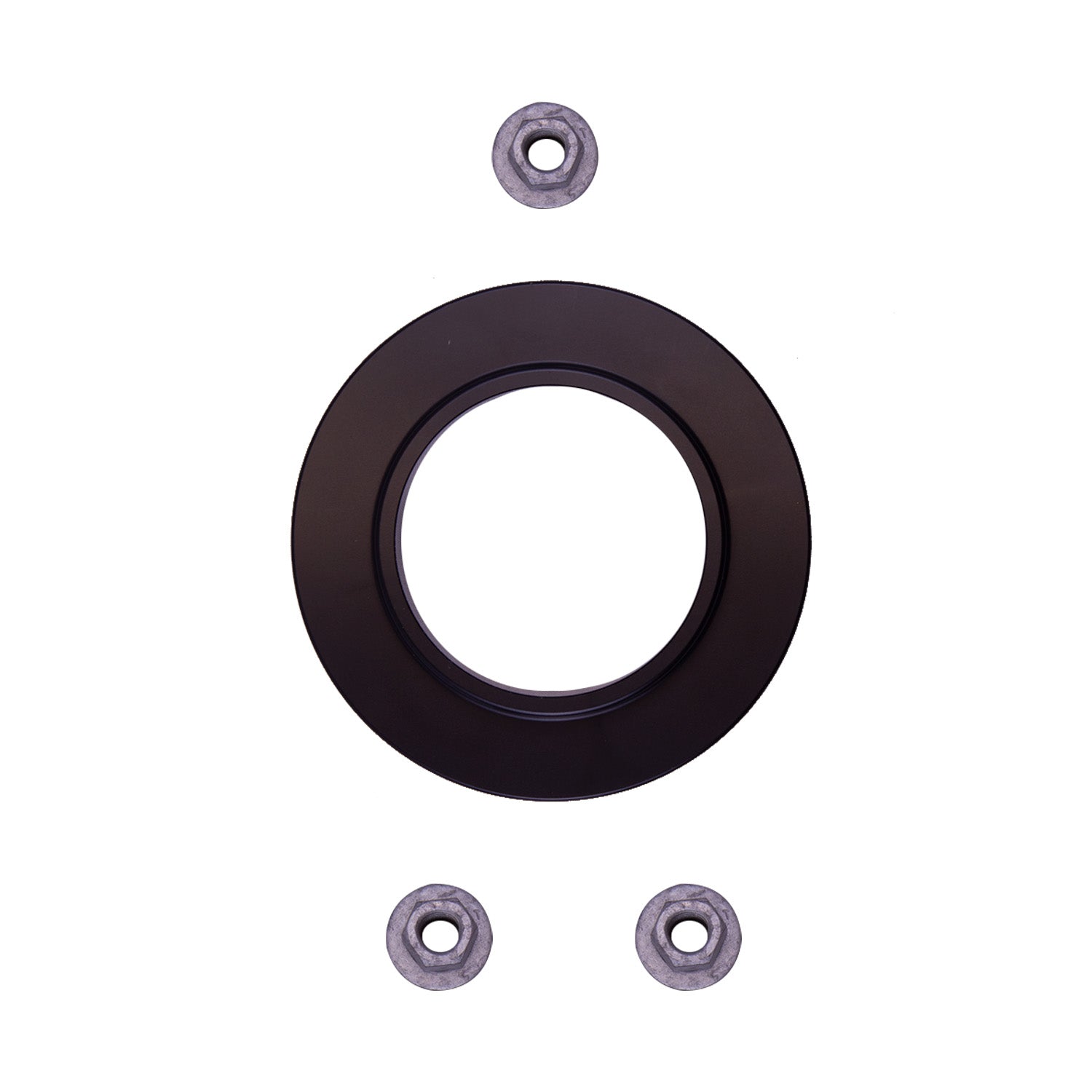

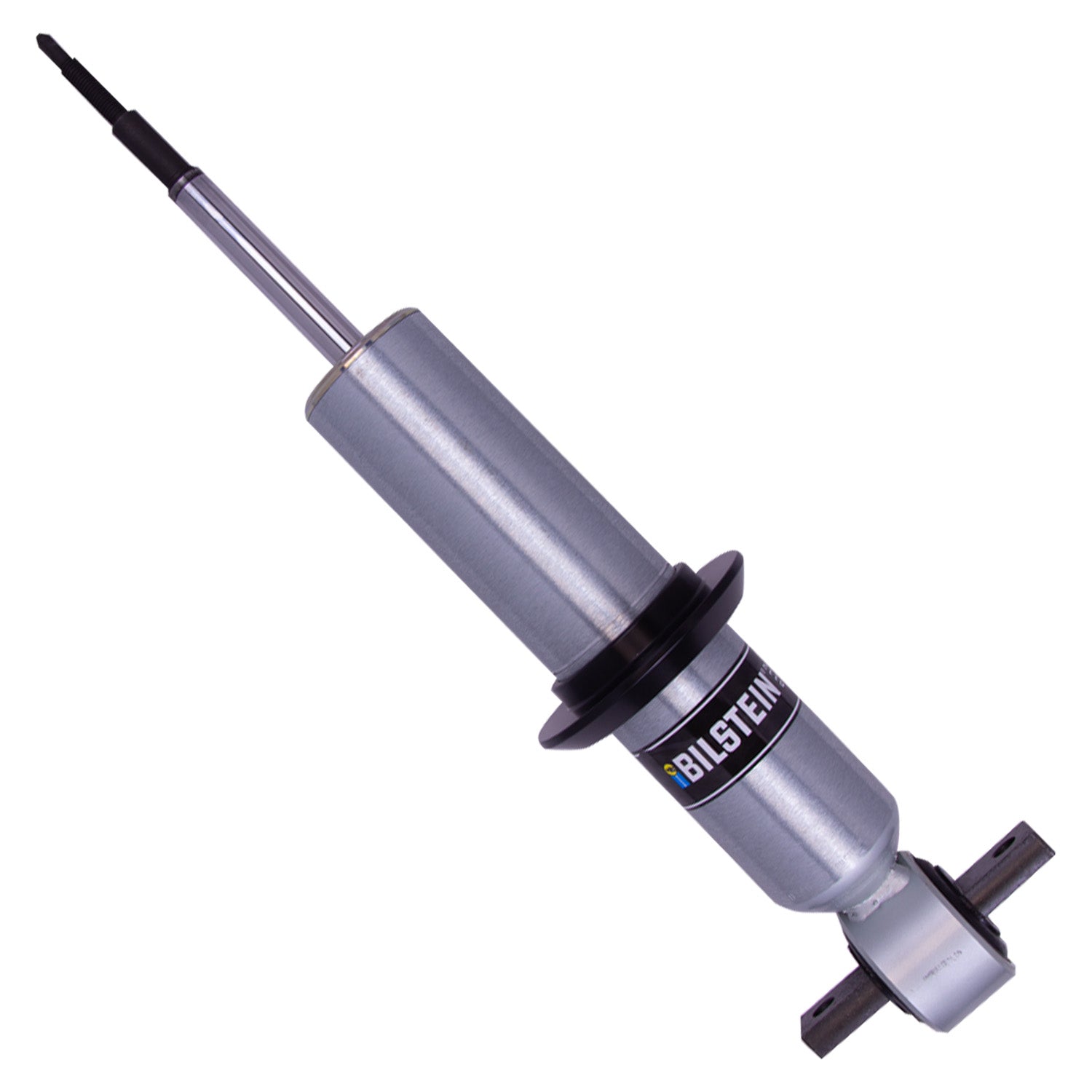

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning

  • Body Design: Snap Ring Grooved Body (Coilover)
  • Internal Design: Monotube
  • Finish: Dampers: Zinc Plated/Springs: Black
  • Spring Seat Included: Yes
  • Series: B8 6112
  • Reservoir: No
  • Boot Included: No
  • Piston Diameter: 60mm
  • Shaft Diameter: 18mm
  • Front Main Spring Rate (lbs/In): 750
  • Extended Length (mm): 479.1
  • Collapsed Length (mm): 380.0
  • Extended Length (in): 18.86
  • Collapsed Length (in): 14.96
  • Stroke/Travel Length (in): 3.90
  • Stroke/Travel Length (mm): 99.1

Application

  • Chevrolet Silverado 1500 2014-2018, Silverado 1500 LD 2019, Tahoe 2015-2020, GMC Sierra 1500 2014-2018, Sierra 1500 Limited 2019, Yukon 2015-2020
