Bilstein Part # BIL47-310025

Bilstein B8 6112 10-22 Lexus GX460 / 10-22 Toyota 4Runner Front Suspension Kit - 47-310025

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

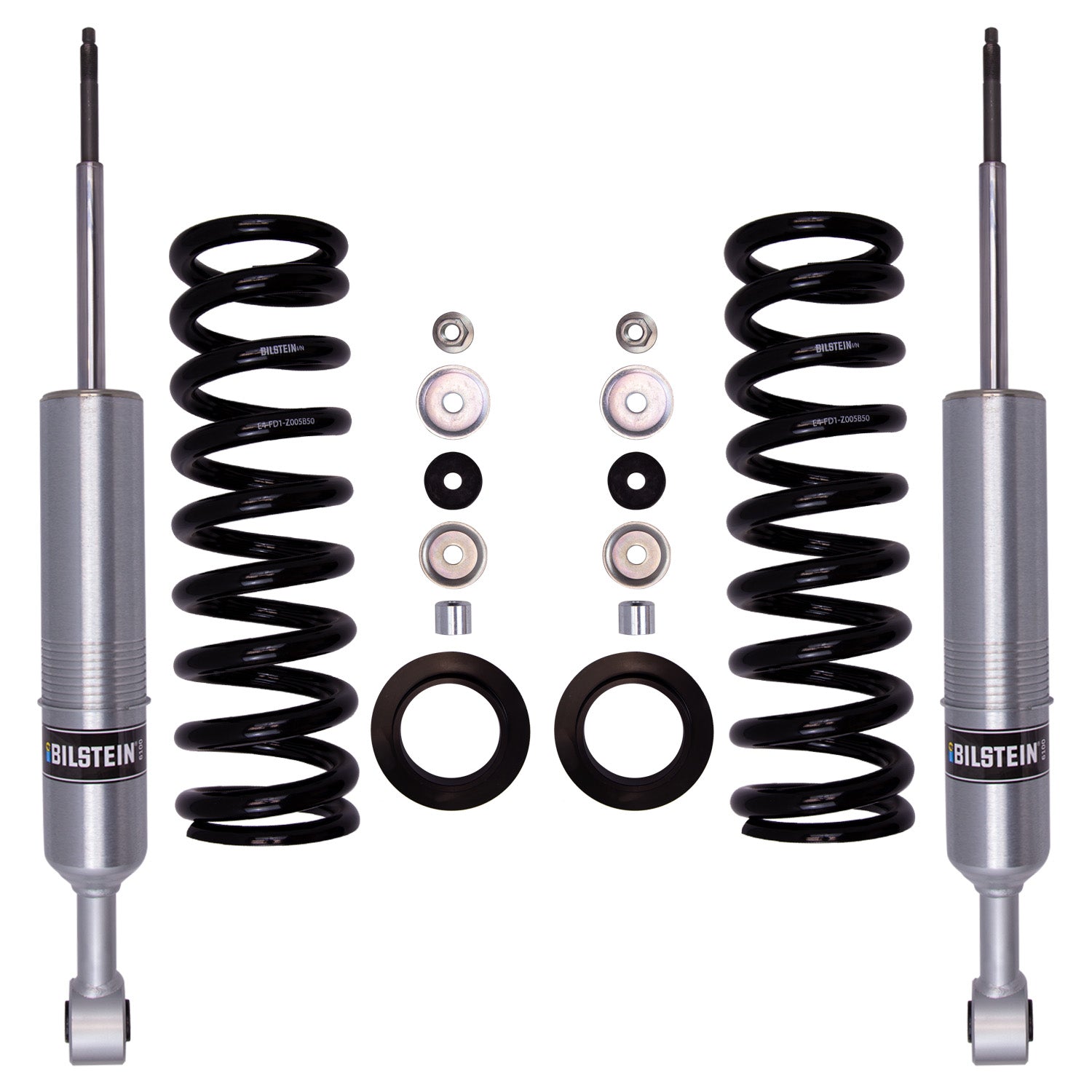

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning

  • Spring Seat Included: Yes
  • Boot Included: No
  • Internal Design: Monotube
  • Series: B8 6112
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Finish: Dampers: Zinc Plated/Springs: Black
  • Reservoir: No
  • Piston Diameter: 60mm
  • Shaft Diameter: 18mm
  • Front Main Spring Rate (lbs/In): 600
  • Collapsed Length (in): 16.86
  • Stroke/Travel Length (in): 4.79
  • Stroke/Travel Length (mm): 121.7
  • Extended Length (mm): 550.0
  • Collapsed Length (mm): 428.3
  • Extended Length (in): 21.65

Application

  • Lexus GX460 2010-2023, Toyota 4Runner 2010-2024, FJ Cruiser 2010-2014
