Bilstein Part # BIL47-310698

Bilstein B8 6112 09-13 Ford F-150 (4wd Only) Front Suspension Kit - 47-310698

Before you order

Customers also viewed

4.8 on Google969 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter

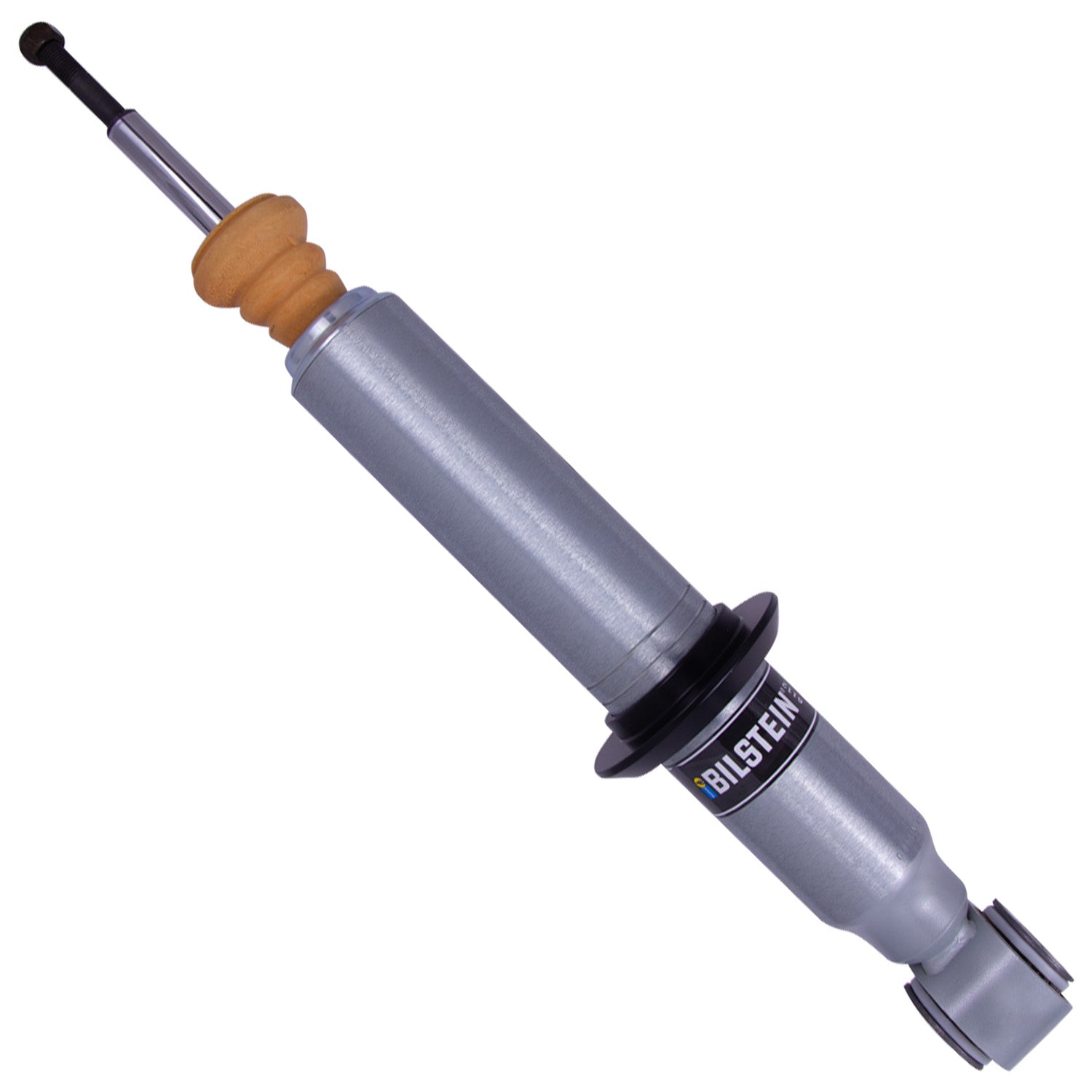

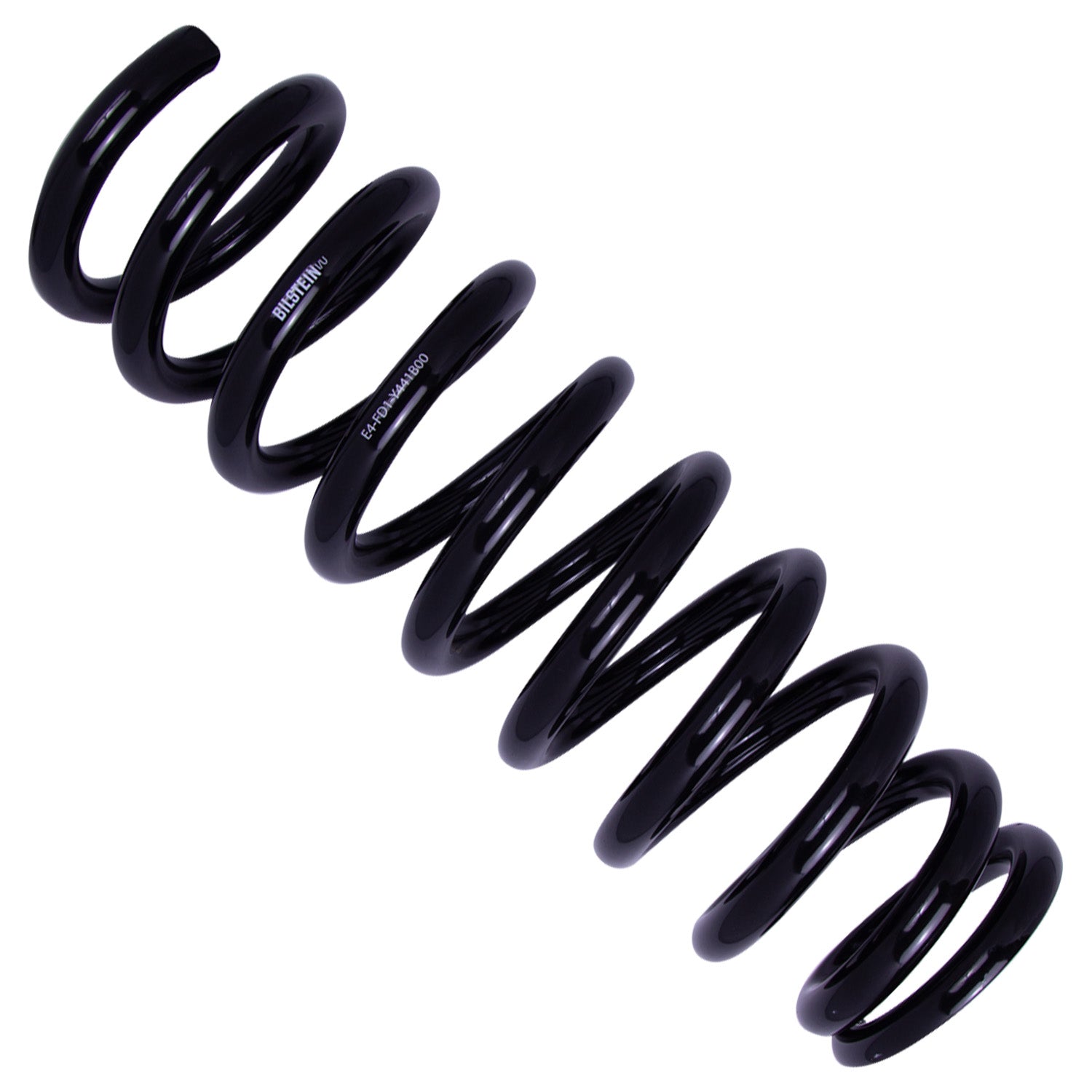

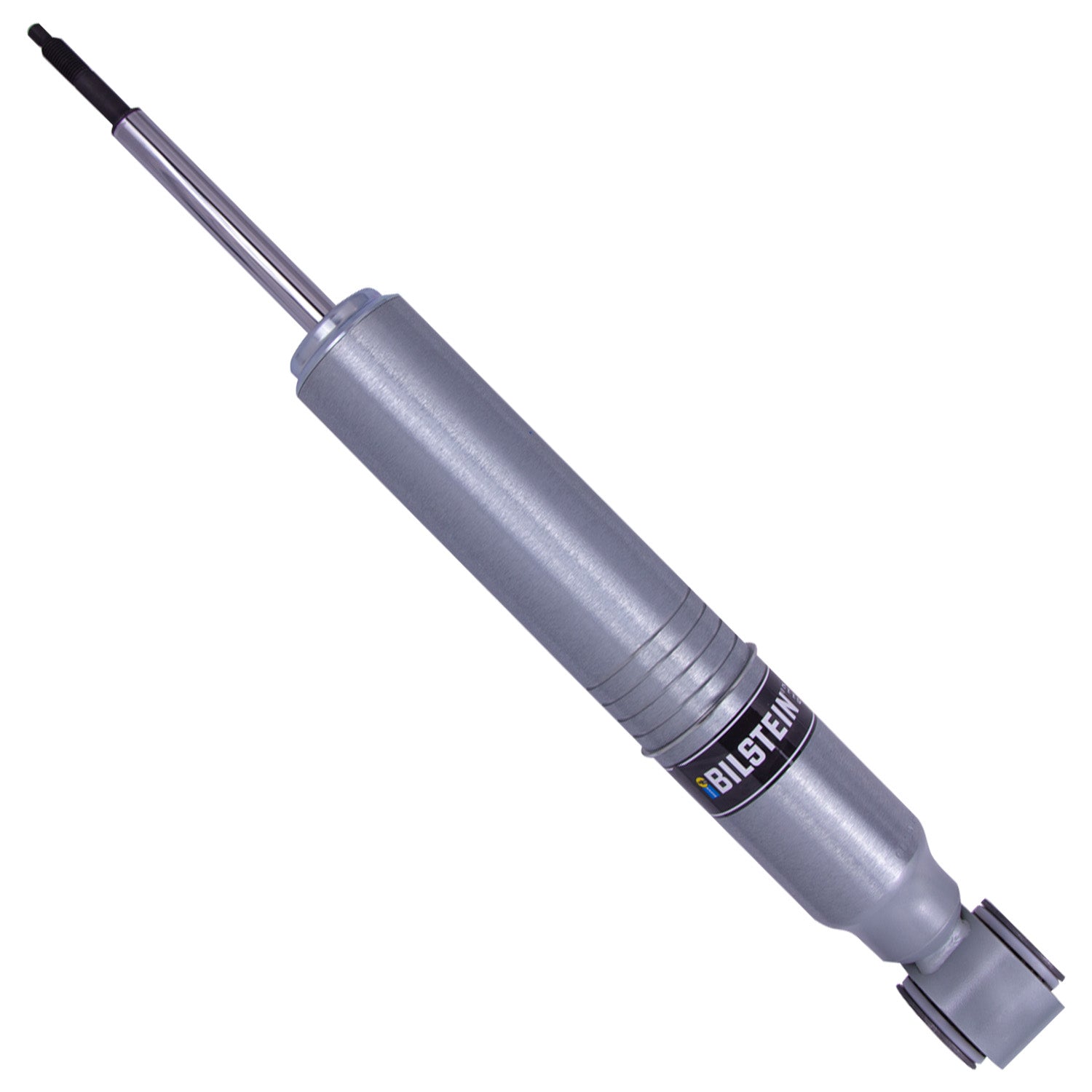

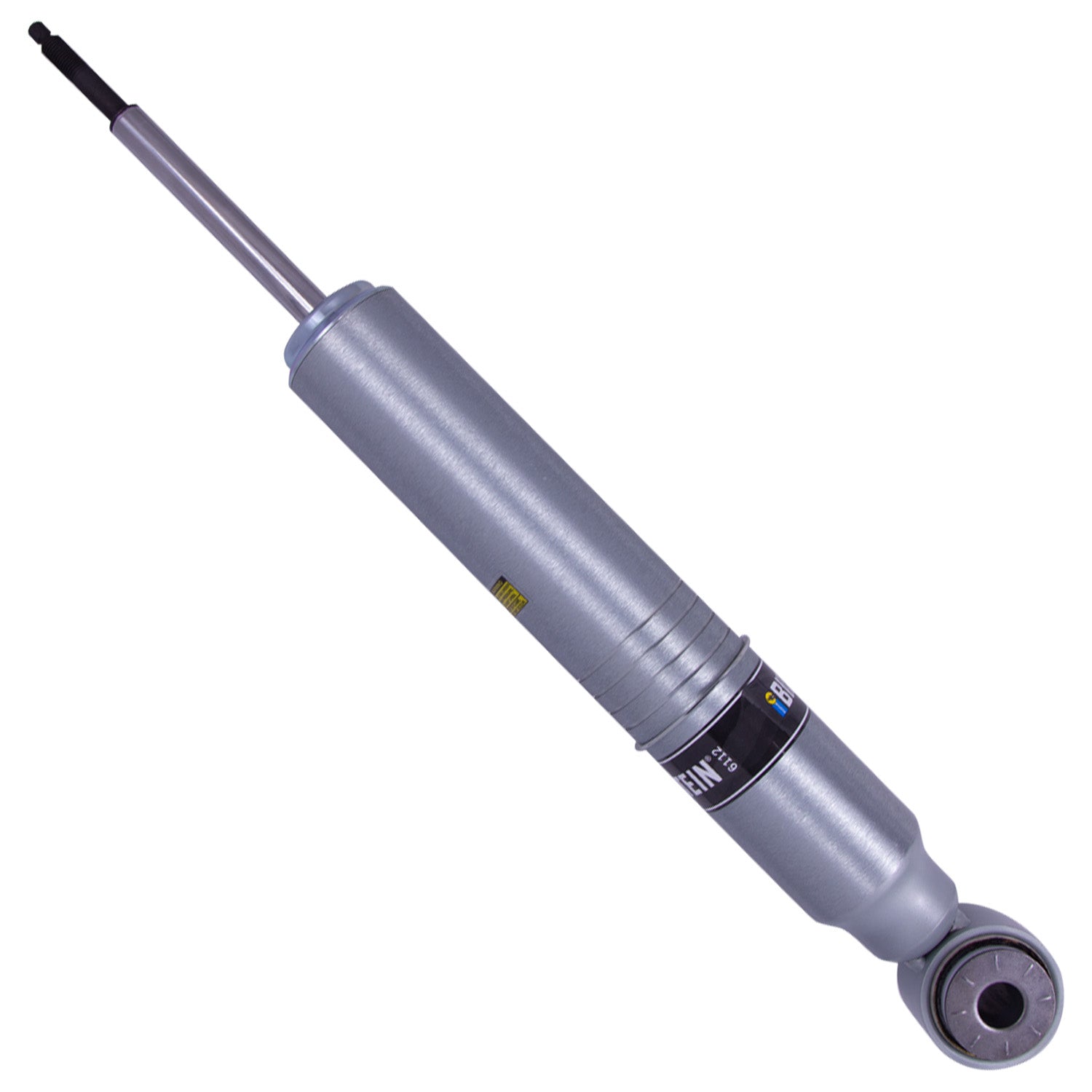

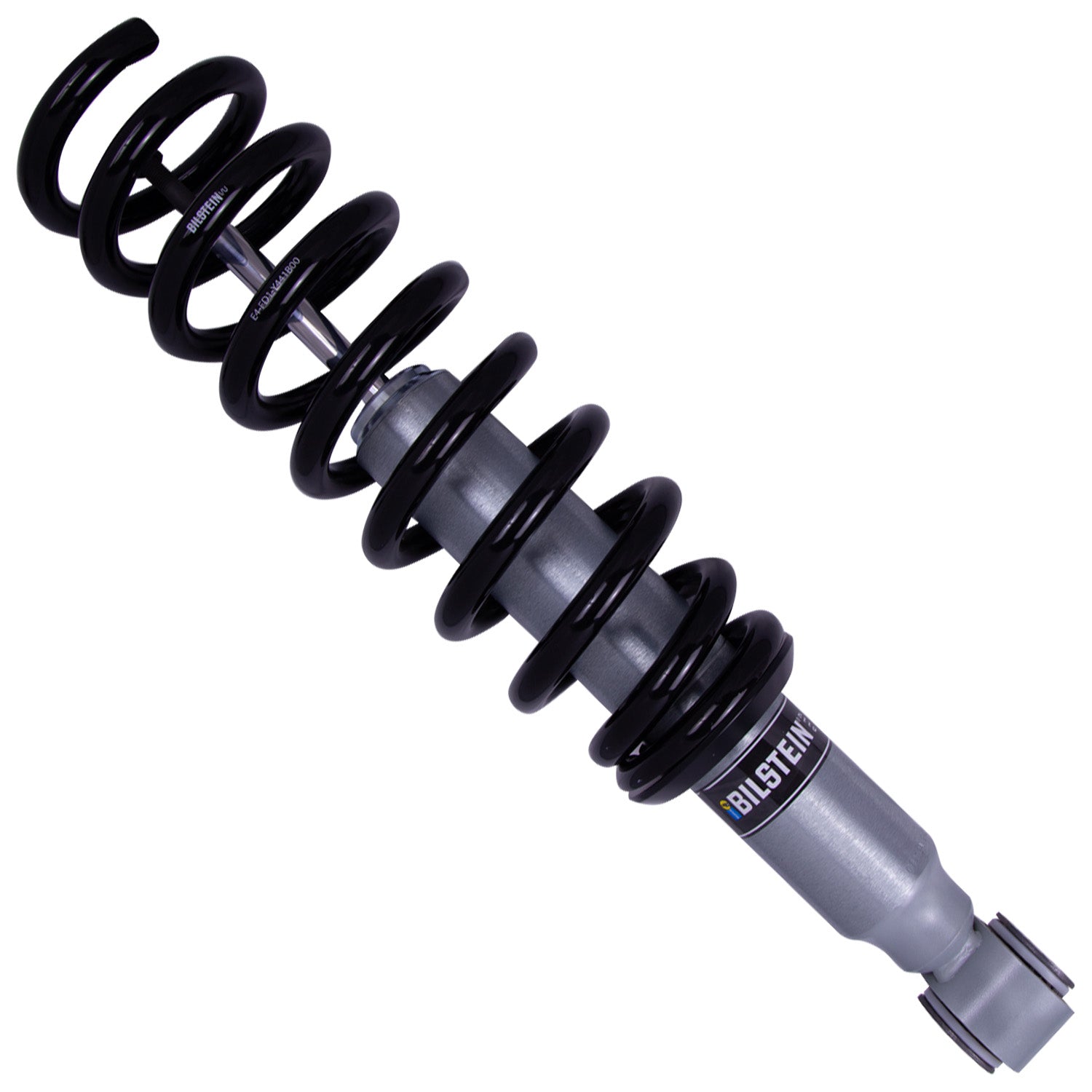

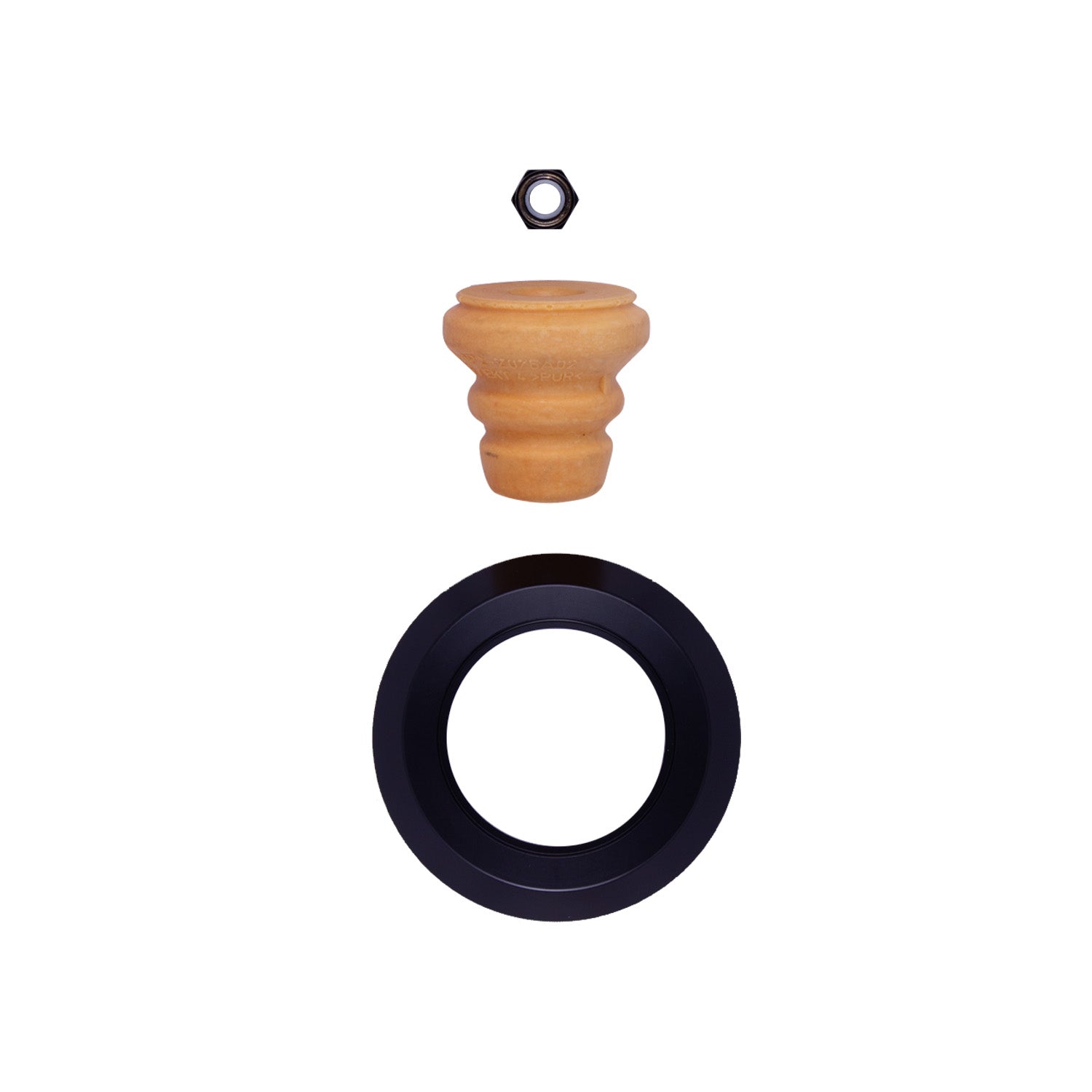

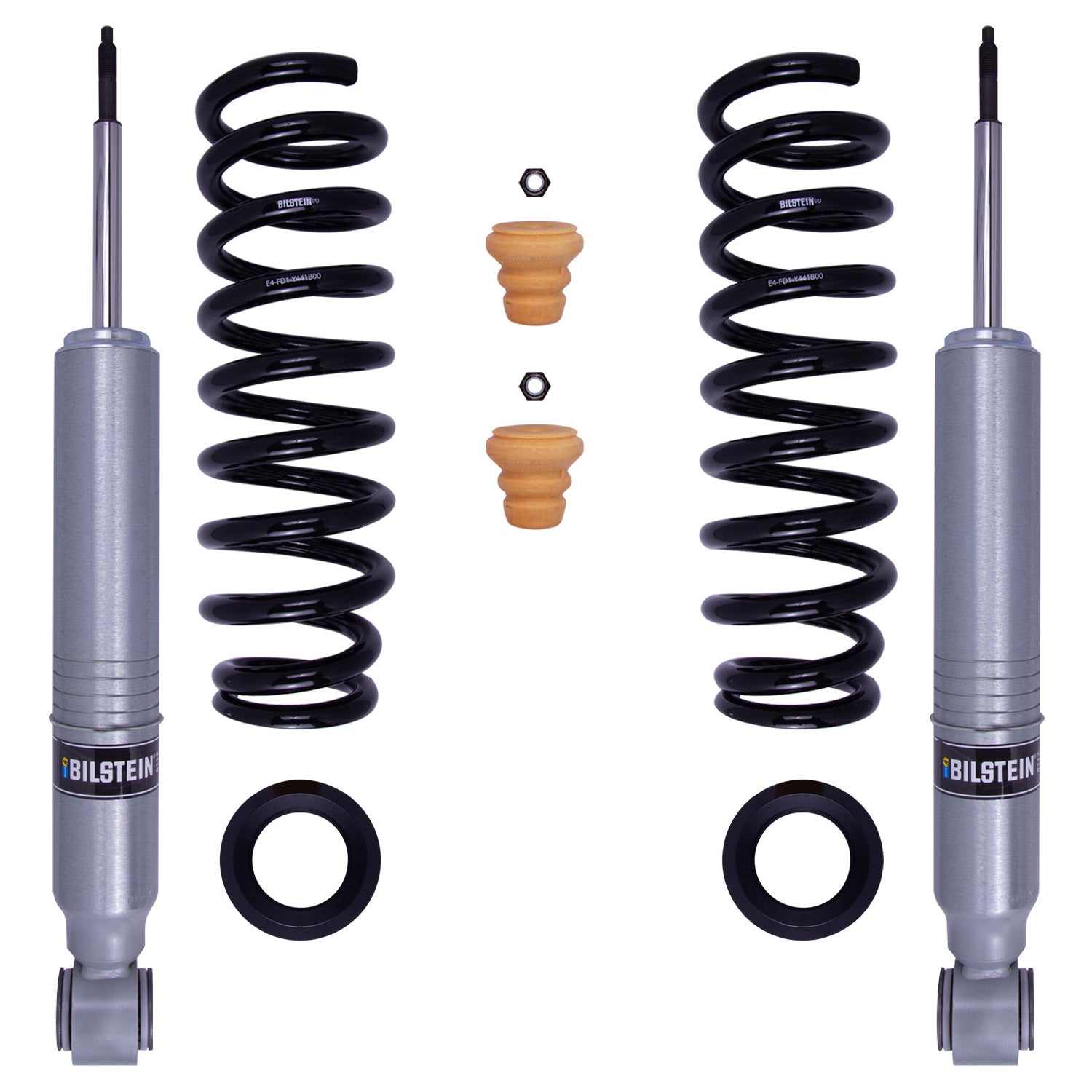

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats.

The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

  • Large 60mm body for increased oil capacity, cooling, and long-term durability.

  • 60mm digressive piston improves ride comfort and control over rough terrain.

  • Vehicle specific tuning.

Reservoir No
Spring seat included Yes
Boot included No
Body design Snap Ring Grooved Body (Coilover)
Series B8 6112
Finish Dampers: Zinc Plated/Springs: Black
Internal design Monotube
Piston diameter 60mm
Shaft diameter 18mm
Front main spring rate (lbs/in) 500
Extended length (mm) 563.8
Collapsed length (mm) 433.1
Extended length (in) 22.20
Collapsed length (in) 17.05
Stroke/travel length (in) 5.15
Stroke/travel length (mm) 130.7
Part number 47-310698

  • Ford F-150 2009-2013
