Bilstein Part # BIL24-285681

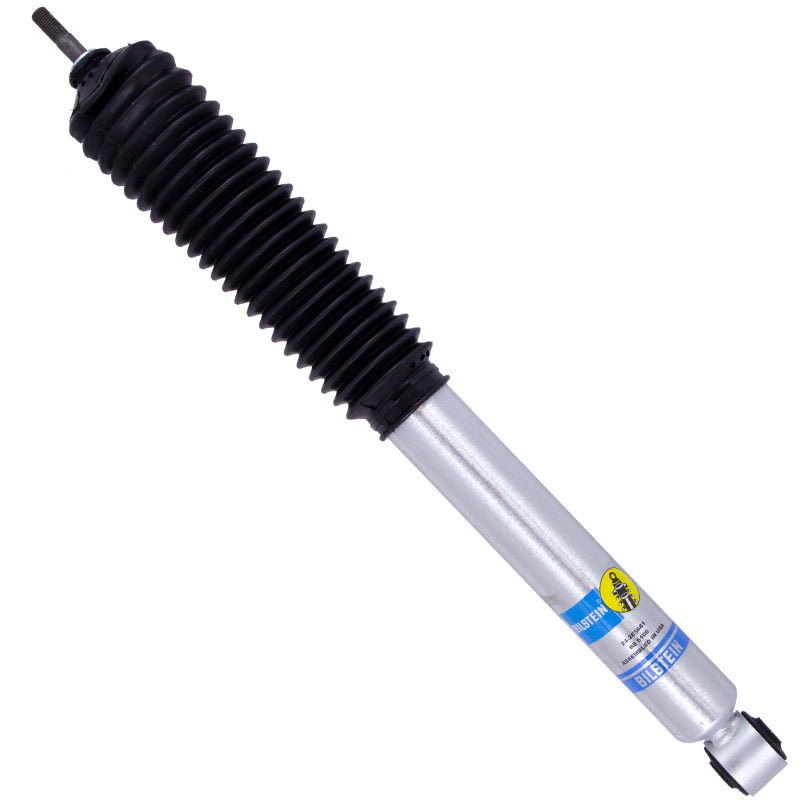

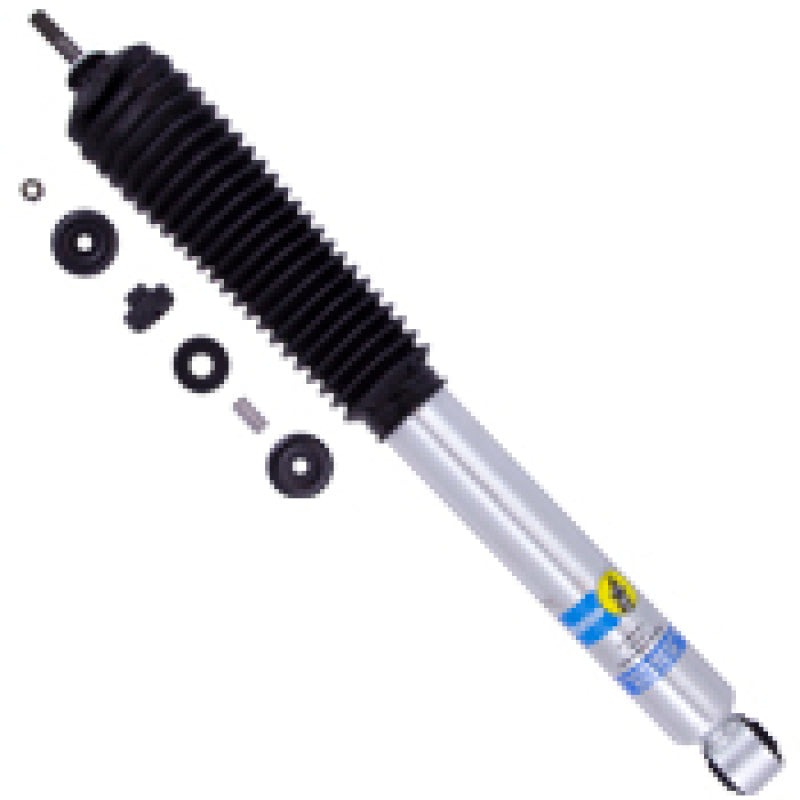

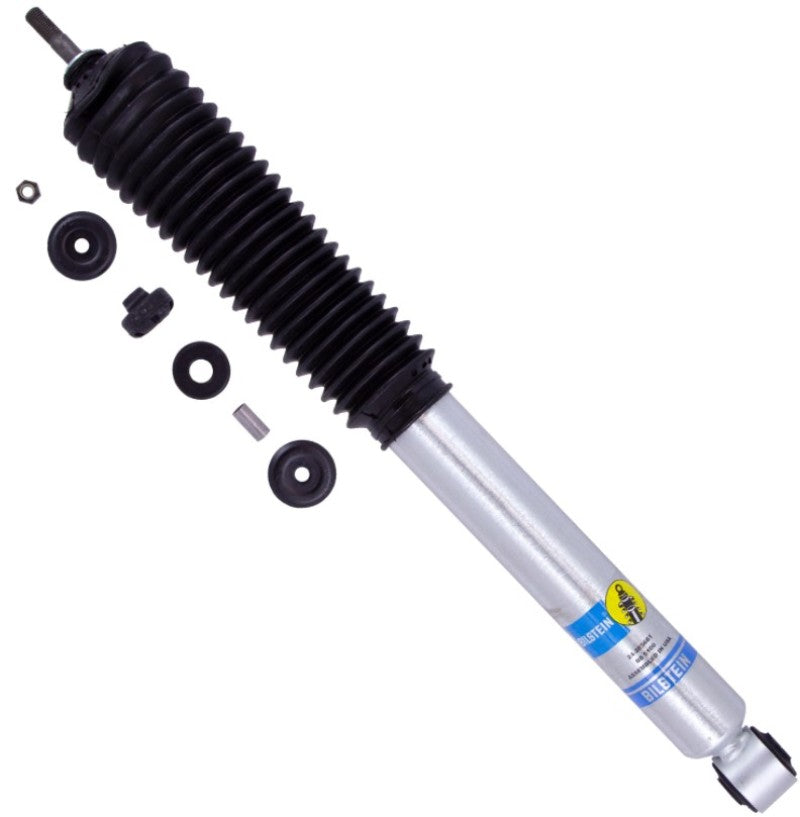

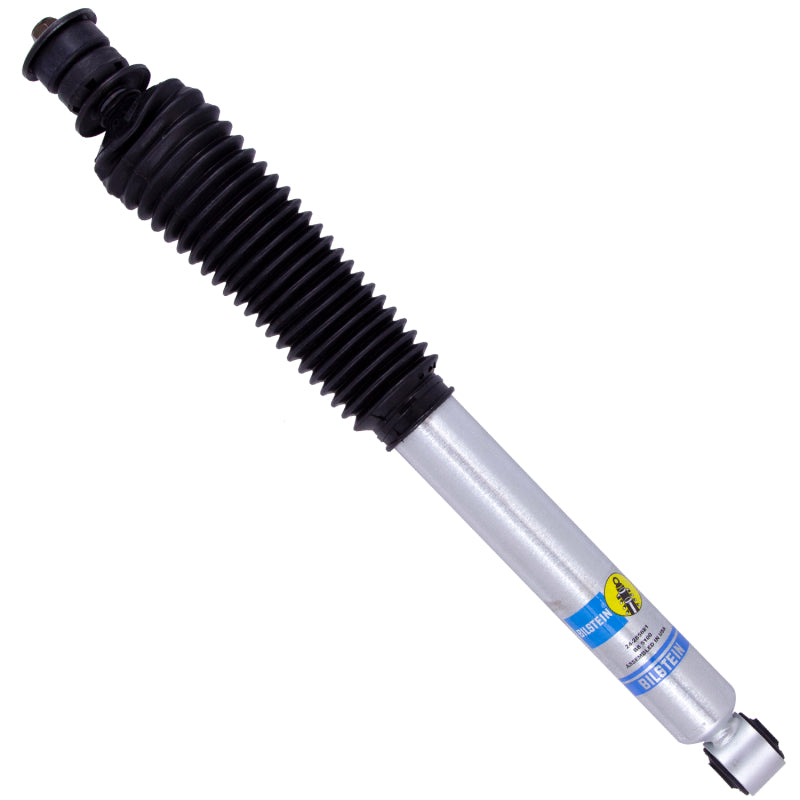

Bilstein B8 14-19 Ram 2500 Rear (4WD Only/Rear Lifted Height 2in w/o Air Leveling) Replacement Shock - 24-285681

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • Vehicle specific tuning

  • Collapsed Length (in): 16.75
  • Body Design: Smooth Body (Non-coilover)
  • Finish: Zinc Plated
  • Extended Length (in): 26.71
  • Collapsed Length (mm): 425.5
  • Series: B8 5100
  • Adjustable Damping: Non-Adjustable
  • Spring Seat Included: No
  • Piston Diameter: 46mm
  • Shaft Diameter: 14mm
  • Stroke/Travel Length (mm): 253.0
  • Stroke/Travel Length (in): 9.96
  • Extended Length (mm): 678.5
  • Boot Included: Black Bellows
  • Lower Mount Type: Eye 14.4mm
  • Upper Mount Type: Stem
  • Internal Design: Monotube
  • Reservoir: No

Application

  • Ram 2500 2014-2026
