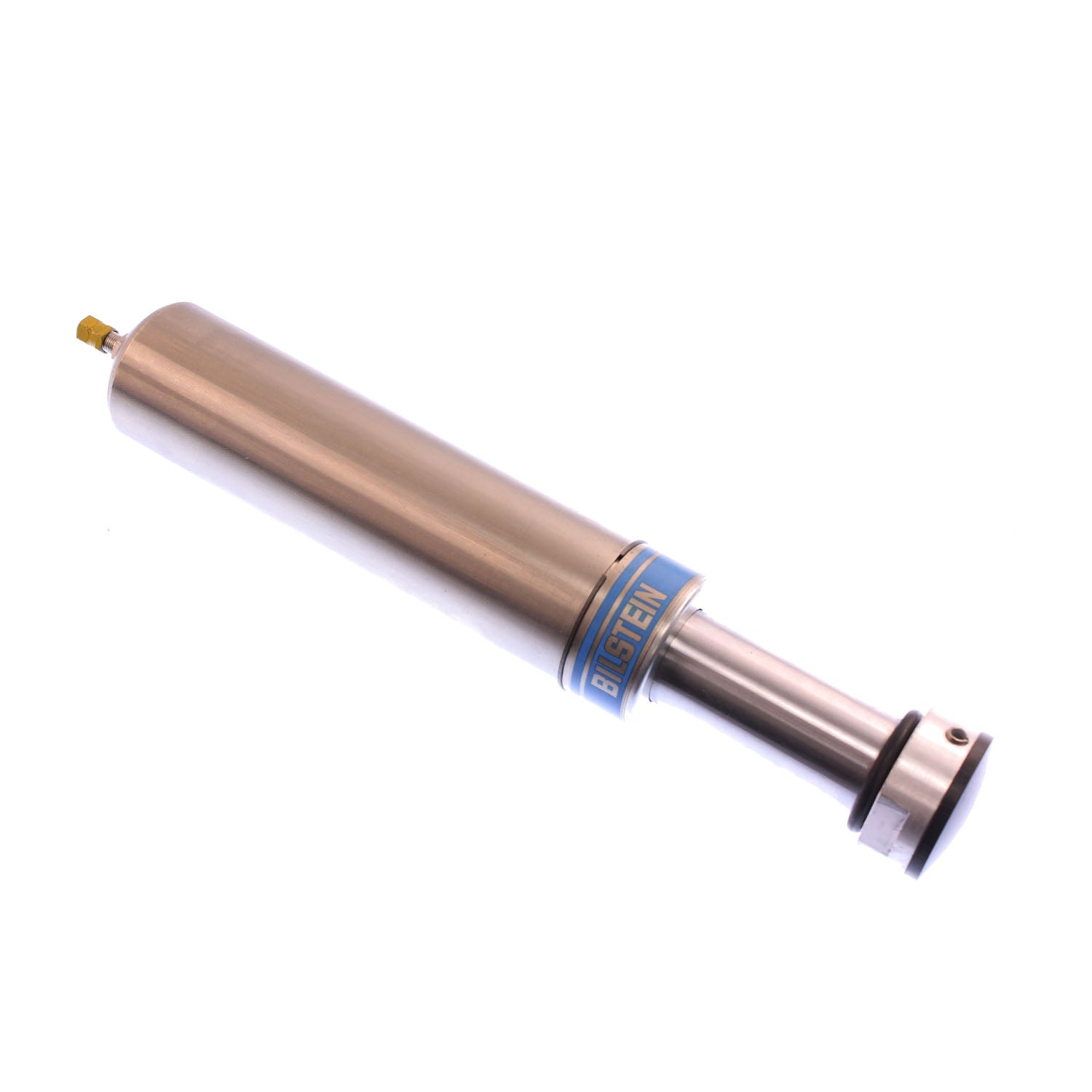

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance.
This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.
Filled with technology perfected over 3 decades of off-road dominance.
Monotube gas pressure design maximizes heat dissipation.
Available for lifted truck, custom truck, rock crawling and off-road racing applications.
| Internal design | Monotube |
|---|---|
| Collapsed length (mm) | 244.1 |
| Extended length (mm) | 316.7 |
| Mount type | Special |
| Upper mount type | Special |
| Body design | Smooth Body (Non-Coilover) |
| Reservoir | No |
| Compression @0.52m/S | Custom |
| Lower mount type | Special |
| Series | M 9100 (Bump Stop) |
| Rebound @0.52m/S | Custom |
| Finish | Nickel Plated |
| Collapsed length (in) | 9.61 |
| Extended length (in) | 12.47 |
| Spring seat included | No |
| Piston diameter | 46mm |
| Shaft diameter | 1-1/4 in. |
| Stroke/travel length (in) | 2.86 |
| Shaft diameter (mm) | 31.8 |
| Stroke/travel length (mm) | 72.6 |
| Part number | F4-BE5-G723-M0 |
