Bilstein Part # BIL33-250755

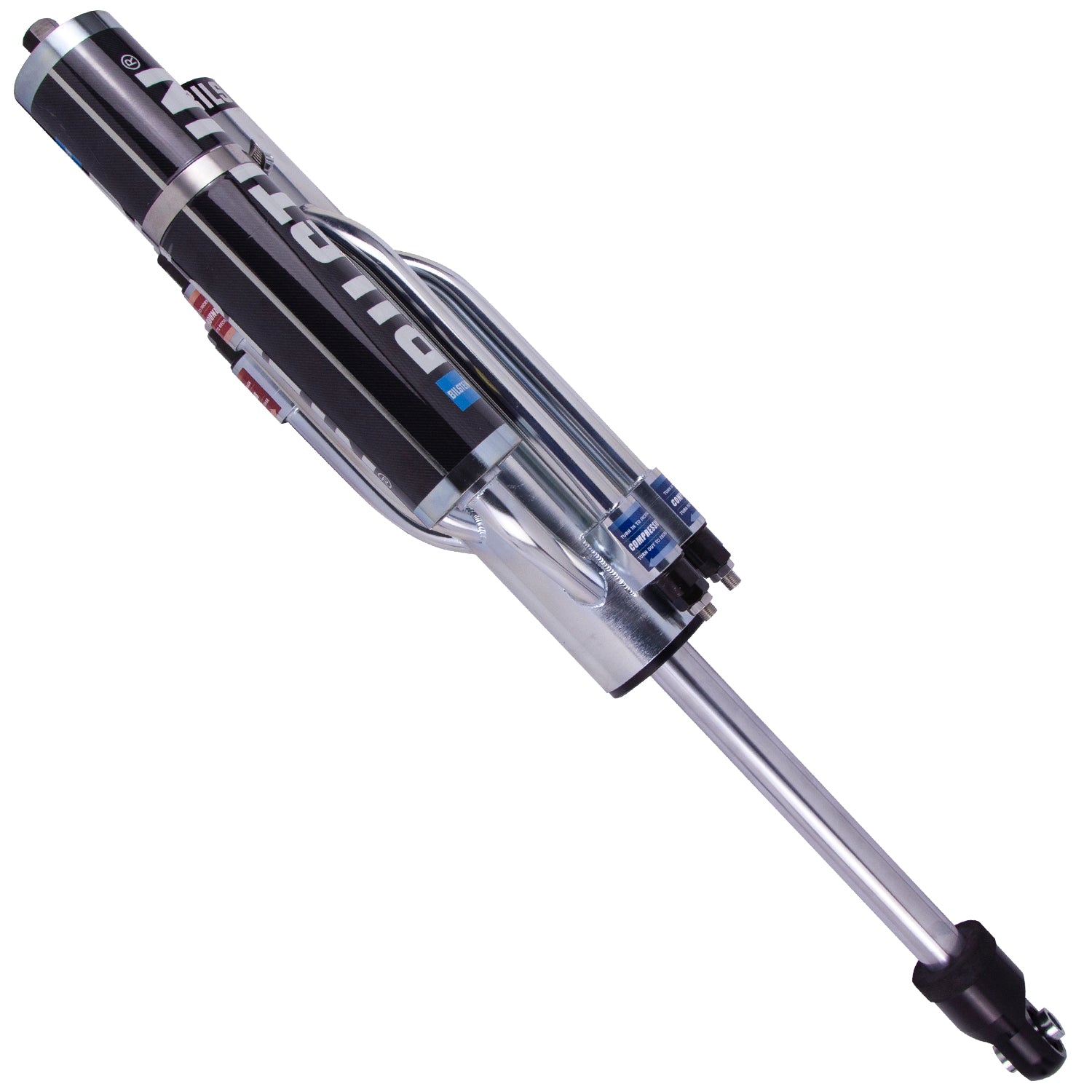

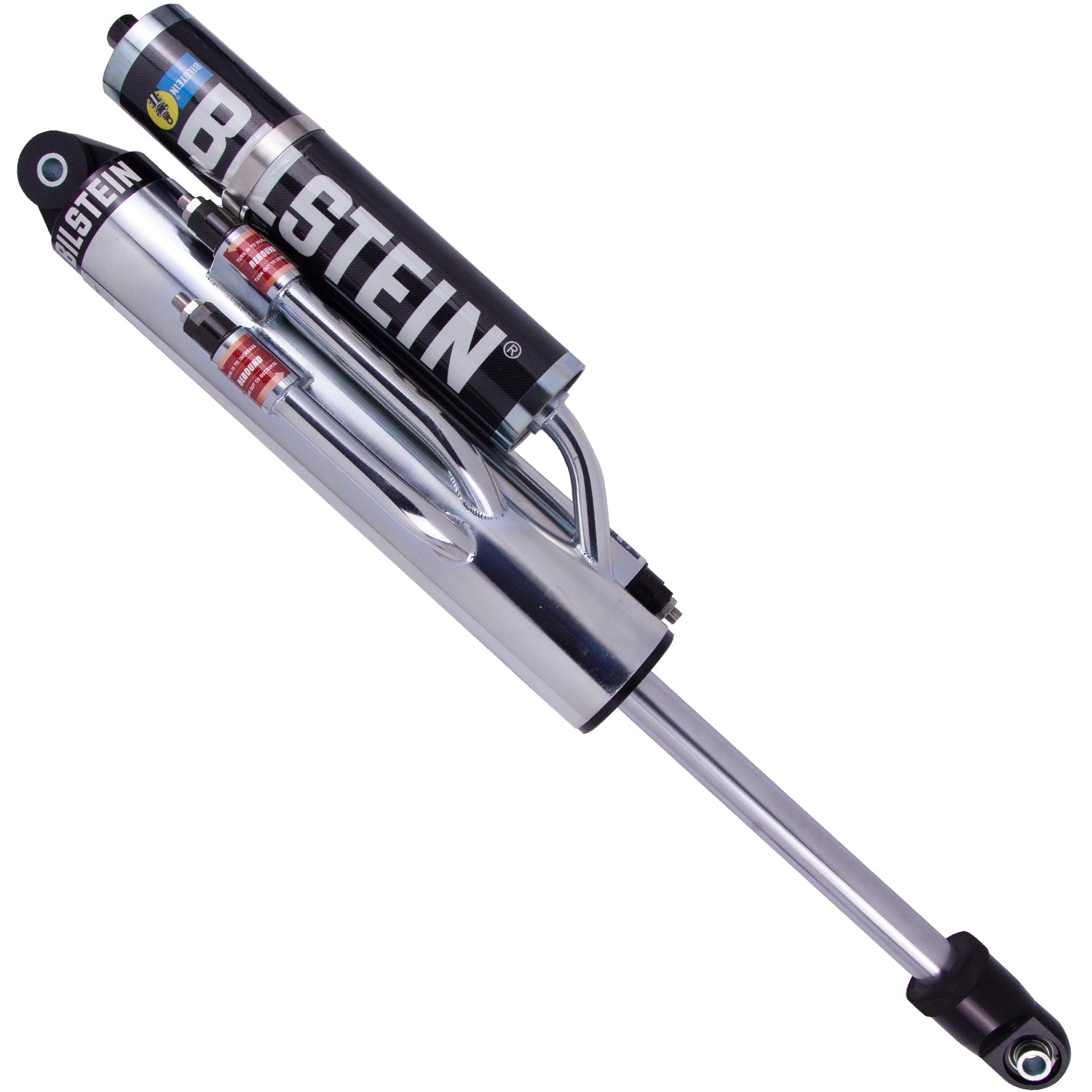

Bilstein 70mm 4 Tube Bypass 10in Stroke Right M 9200 Shock Absorber - 33-250755

Before you order

Customers also viewed

4.8 on Google967 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length.

These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

  • Available in 60mm, 70mm and 83mm monotubes.

  • 4-tube, position sensitive with adjustable rebound and compression.

  • Multiple stroke lengths available ranging from 8" to 18".

Extended length (in) 29.50
Upper mount type Eye .5x1.5in
Body design 4-Tube Bypass Screw Top
Compression @0.52m/S Custom
Reservoir Yes
Internal design Monotube
Rebound @0.52m/S Custom
Extended length (mm) 749.3
Lower mount type Eye .5x1.5in
Spring seat included No
Series M 9200 (Bypass)
Finish Zinc Plated
Position Right
Collapsed length (mm) 495.3
Mount type Eye-to-Eye
Piston diameter 70mm
Collapsed length (in) 19.50
Shaft diameter 1-1/8 in.
Stroke/travel length (in) 10.00
Stroke/travel length (mm) 254.0
Shaft diameter (mm) 28.6
Part number 33-250755

  • Universal fitment. Check dimensions before ordering.
