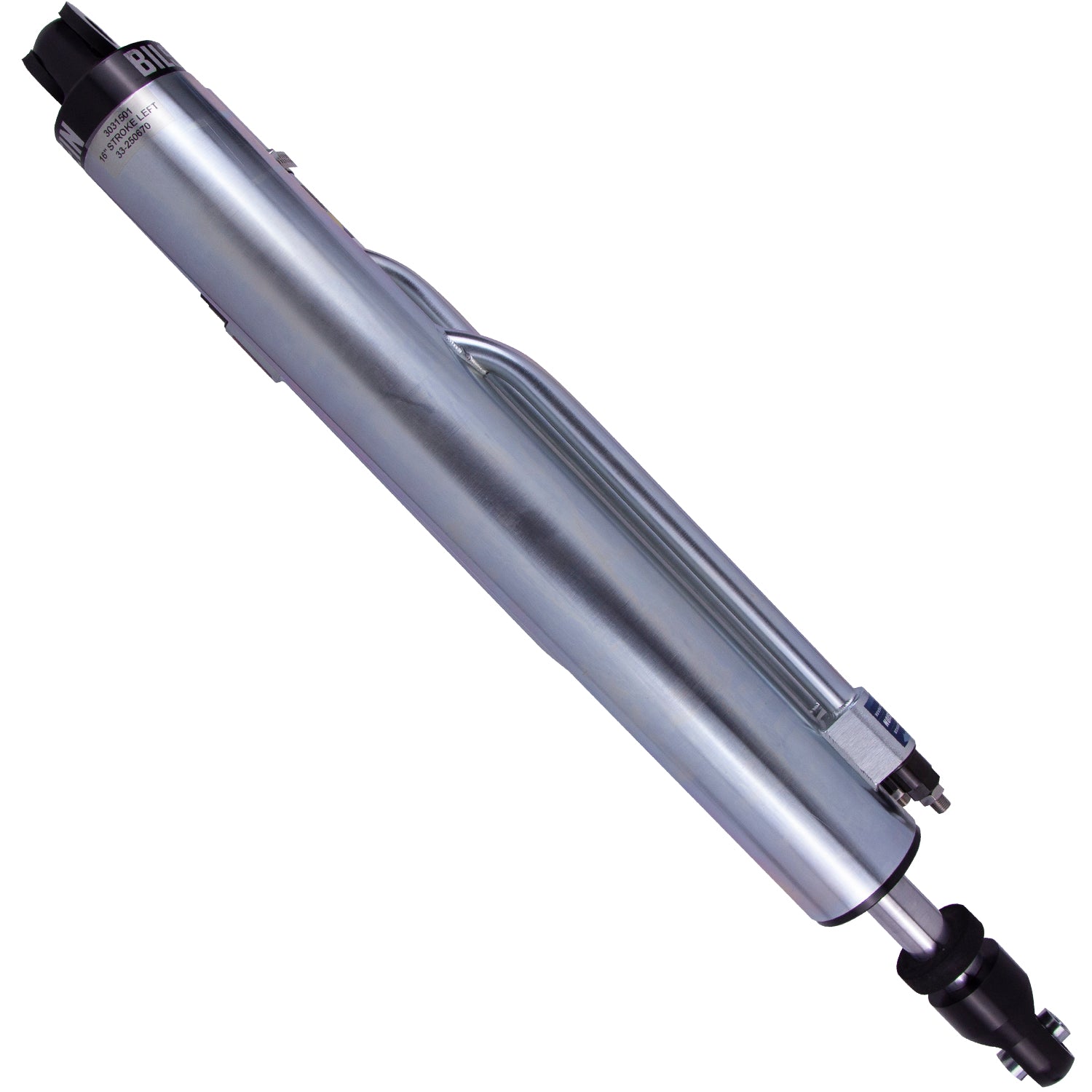

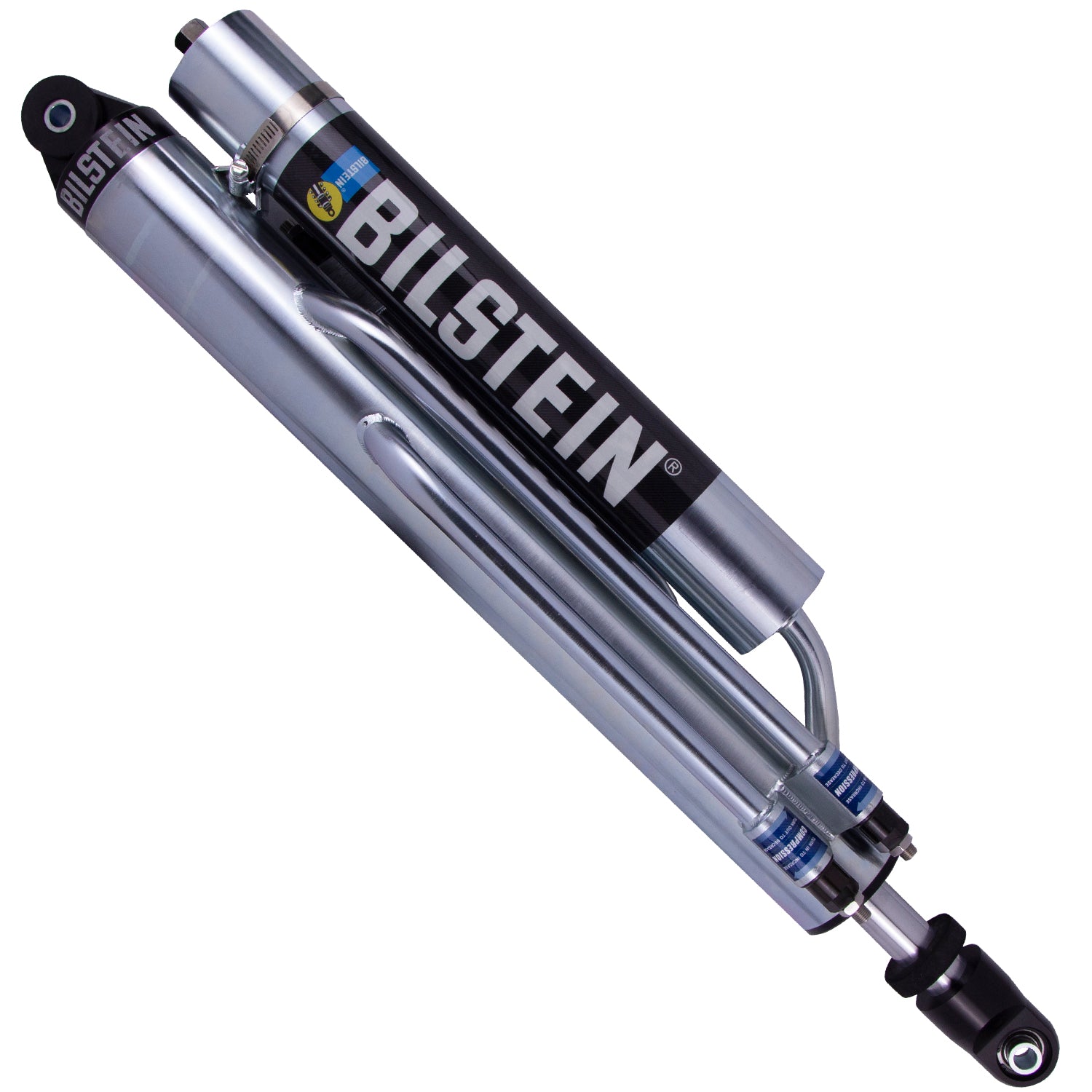

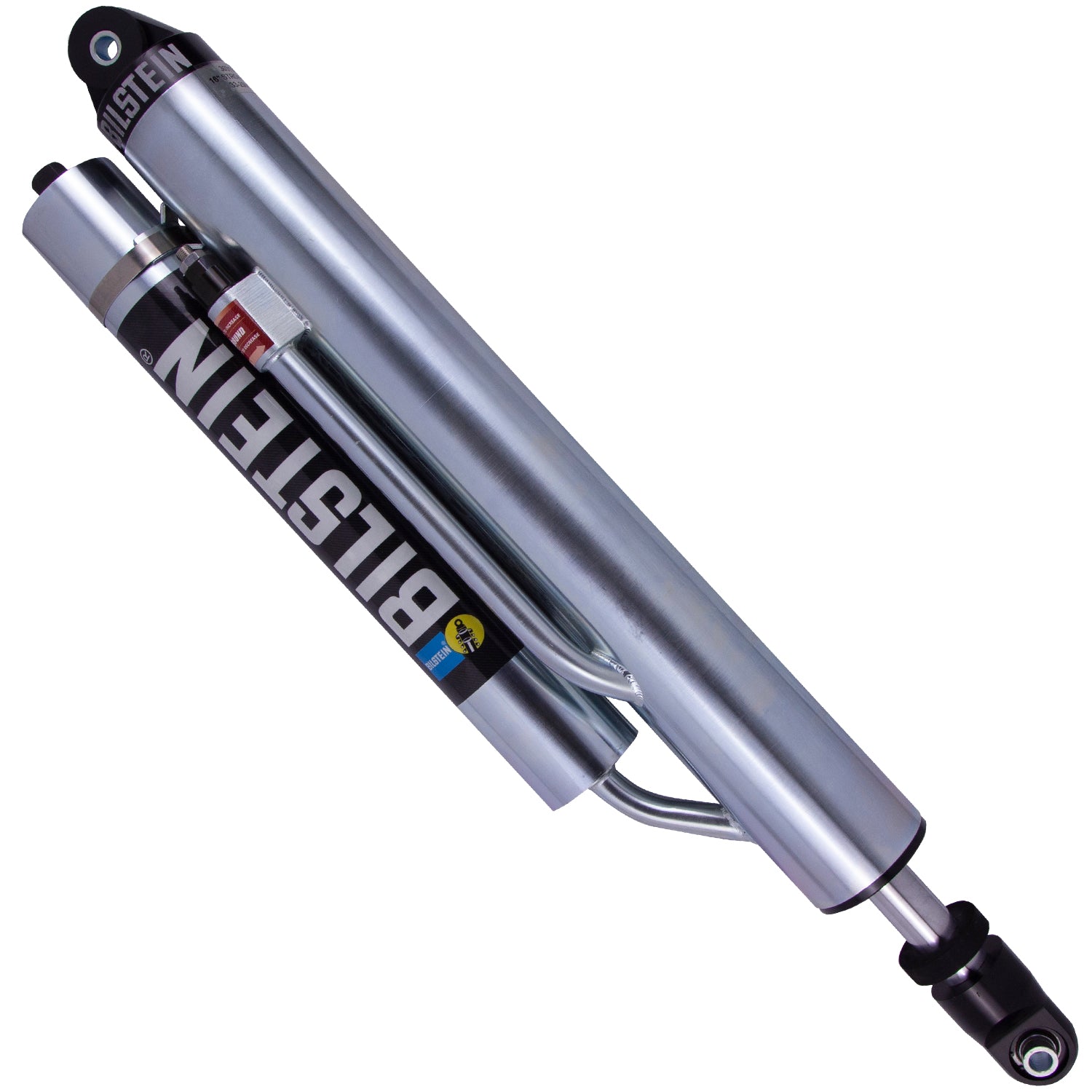

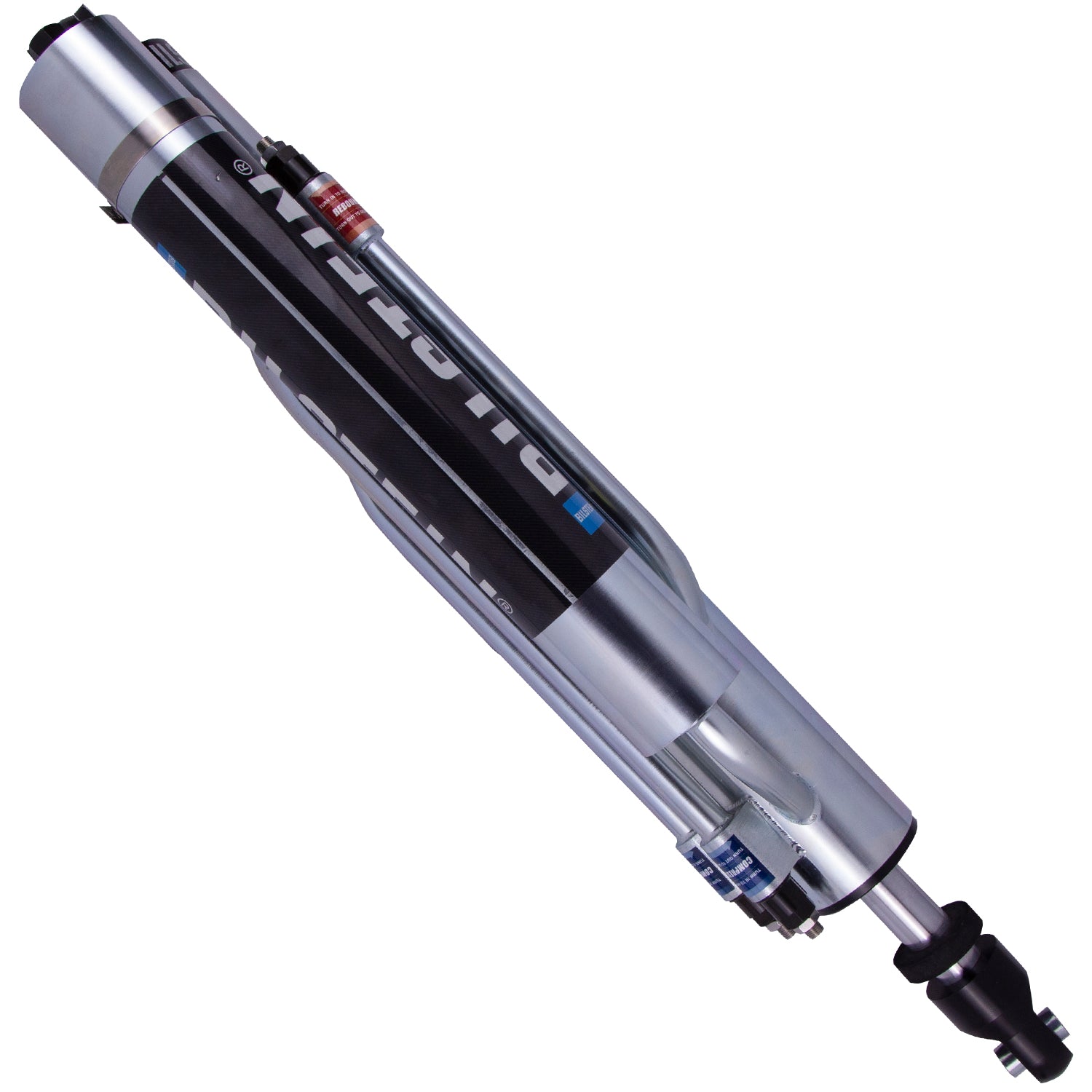

Bilstein 70mm 3 Tube Bypass 16in Stroke Left M 9200 Shock Absorber - 33-250670

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Features

• Available in 60mm, 70mm and 83mm monotubes
• 4-tube, position sensitive with adjustable rebound and compression
• Multiple stroke lengths available ranging from 8" to 18"

Specifications

• Upper Mount Type: Eye .5x1.5in
• Compression @0.52m/S: Custom
• Lower Mount Type: Eye .5x1.5in
• Rebound @0.52m/S: Custom
• Internal Design: Monotube
• Extended Length (in): 42.50
• Position: Left
• Collapsed Length (mm): 673.1
• Mount Type: Eye-to-Eye
• Body Design: 3-Tube Bypass Screw Top
• Extended Length (mm): 1079.5
• Spring Seat Included: No
• Piston Diameter: 70mm
• Collapsed Length (in): 26.50
• Shaft Diameter: 1-1/8 in.
• Stroke/Travel Length (in): 16.00
• Shaft Diameter (mm): 28.6
• Stroke/Travel Length (mm): 406.4
• Reservoir: Yes
• Finish: Zinc Plated
• Series: M 9200 (Bypass)

Application

• No Applications
